Important: Please read before installation.
1.
LUMINA (NAV-561) IS COMPATIBLE WITH ANY NU-AIR H/ERV WHICH FEATURES AN ES SERIES CIRCUIT BOARD, RESIDENTIAL OR COMMERCIAL. THE ES SERIES
CIRCUIT BOARD IS EASILY IDENTIFIED BY THE PRESENCE OF ONE 4-WIRE AND ONE 10-WIRE REMOVABLE TERMINAL BLOCK USED FOR CONTROLS WIRING.
2.
FOR UNITS WITHOUT A RECIRCULATION DAMPER, TURN OFF RECIRCULATION FUNCTIONS IN CUSTOM SETTINGS.
3.
COMPATIBLE NU-AIR ACCESSORY CONTROLS: WIN-20 (20-MINUTE TIMER), ES-T1 (20/40/60-MINUTE TIMER) ONLY.
4.
FOR RETROFIT APPLICATIONS: PLEASE REMOVE THE FOLLOWING ES CONTROLS: ES-M1, ES-M2, ES-M3, ES-M4, ES-DVC AS THEY ARE NOW REDUNDANT. USE
ONLY ONE (1) NAV-561 PER INSTALLATION.
5.
ROUTE CONTROL WIRING ACCORDING TO LOCAL BUILDING CODES.
YOUR NAV-561 KIT INCLUDES: 1 WALL CONTROL WITH INSTALLATION/USER GUIDE AND 2 WALL-BOX MOUNTING SCREWS.
Mounting
MOUNT IN A CENTRAL LOCATION WITHIN THE BUILDING.
FITS A STANDARD 2X3" (NOMINAL) ELECTRICAL WALL BOX (NOT INCLUDED).
DRYWALL ANCHORS (NOT INCLUDED) MAY BE USED WHERE A WALL BOX IS NOT AVAILABLE.
Wiring
USING A 2 MM FLAT SCREWDRIVER AND 4-CONDUCTOR WIRE, CONNECT THE H/ERV
12 VDC TERMINAL BLOCK TO THE CORRESPONDING NAV-561 TERMINALS.

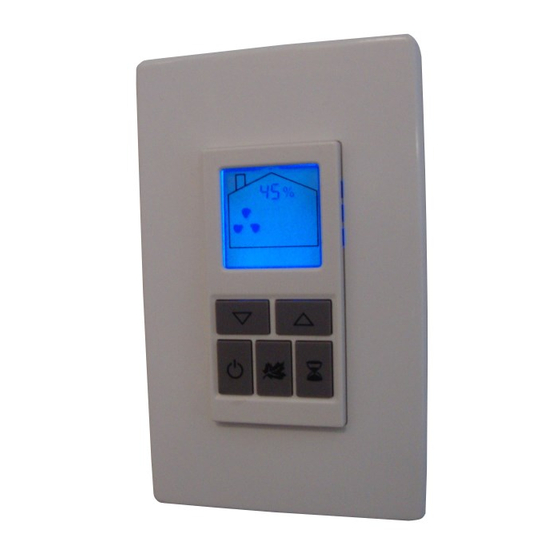

Use
BACKLIGHT: FIRST BUTTON PRESSED WILL TURN ON THE BACKLIGHT. THE BACKLIGHT WILL REMAIN ILLUMINATED FOR 10 SECONDS.
POWER. TURNS THE VENTILATOR ON/OFF.
MODE. USE THIS BUTTON TO ENTER THE MODE SELECTION MENU AND TO ACTIVATE A CHOSEN MODE OF
OPERATION.
TIMER. USE THIS BUTTON TO ACTIVATE THE VENTILATOR INTO HIGH SPEED FOR 20, 40 OR 60 MINUTES. THE TIMER
BUTTON CAN ALSO BE USED TO TURN OFF THE HIGH SPEED TIMER FUNCTION.
DOWN ARROW. USE THIS BUTTON TO DECREASE DESIRED HUMIDITY SETTING, OR TO SCROLL THROUGH
MODE/MENU OPTIONS.
UP ARROW. USE THIS BUTTON TO INCREASE DESIRED HUMIDITY SETTING, OR TO SCROLL THROUGH
MODE/MENU OPTIONS.
Select a Mode of Operation
PRESS THE MODE BUTTON AND THE CURRENT MODE ICON AND MODE NUMBER (00-06) WILL FLASH.USE THE ARROW
BUTTONS TO SCROLL UP AND DOWN THE NUMBERED MENU CHOICES. TO INITIATE A DESIRED MODE, PRESS THE MODE
BUTTON ONCE MORE, OR SIMPLY WAIT 4 SECONDS AND THE MODE WILL AUTOMATICALLY ACTIVATE.

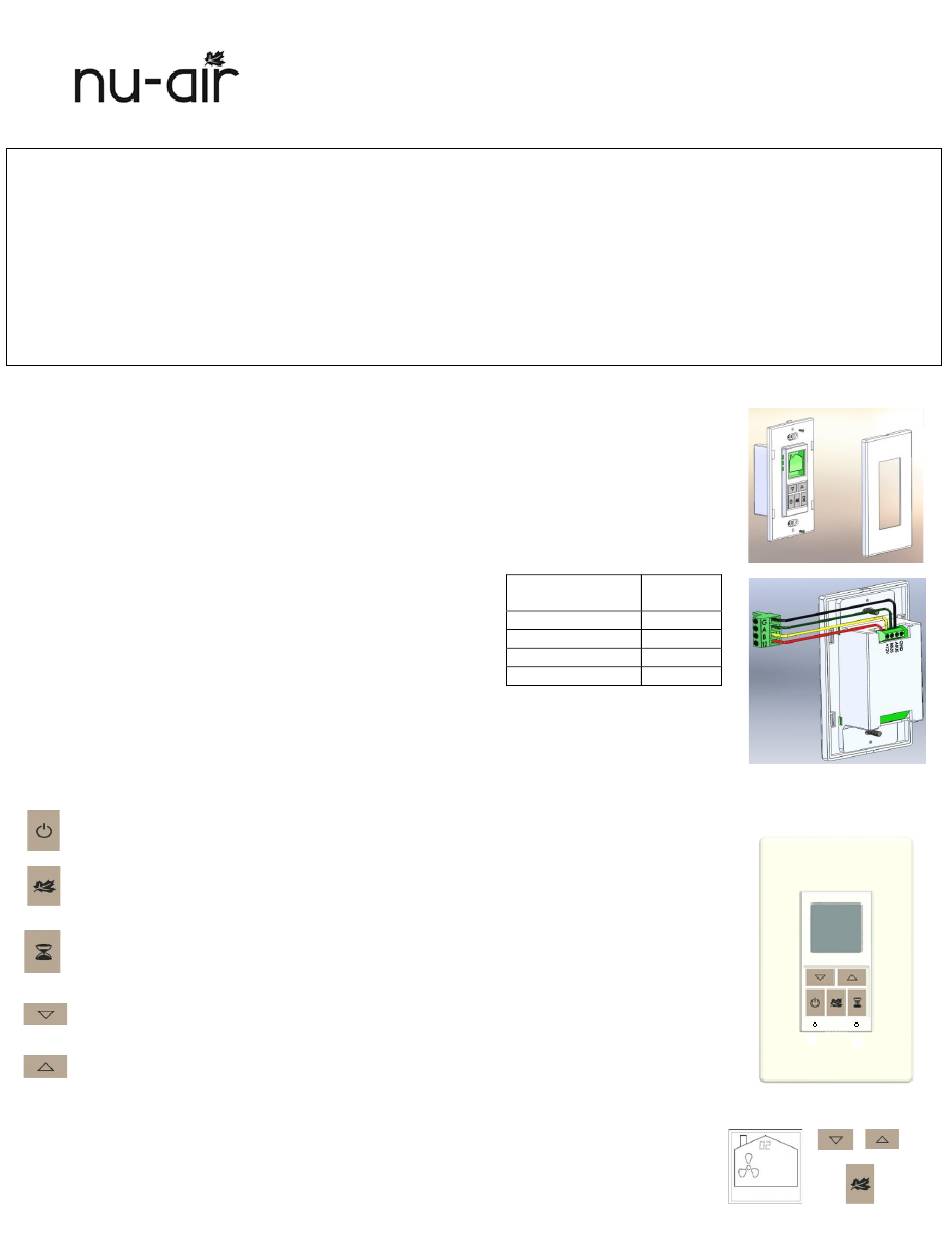

Lumina Wall Control Installation and User Guide (p/n NAV-561)
Version 1.5, November 2020
H/ERV
TERMINAL BLOCK
G
A
B
12
NAV-561
GND
A BUS
B BUS
+12V
