Summary of Contents for deconta ECO-Line

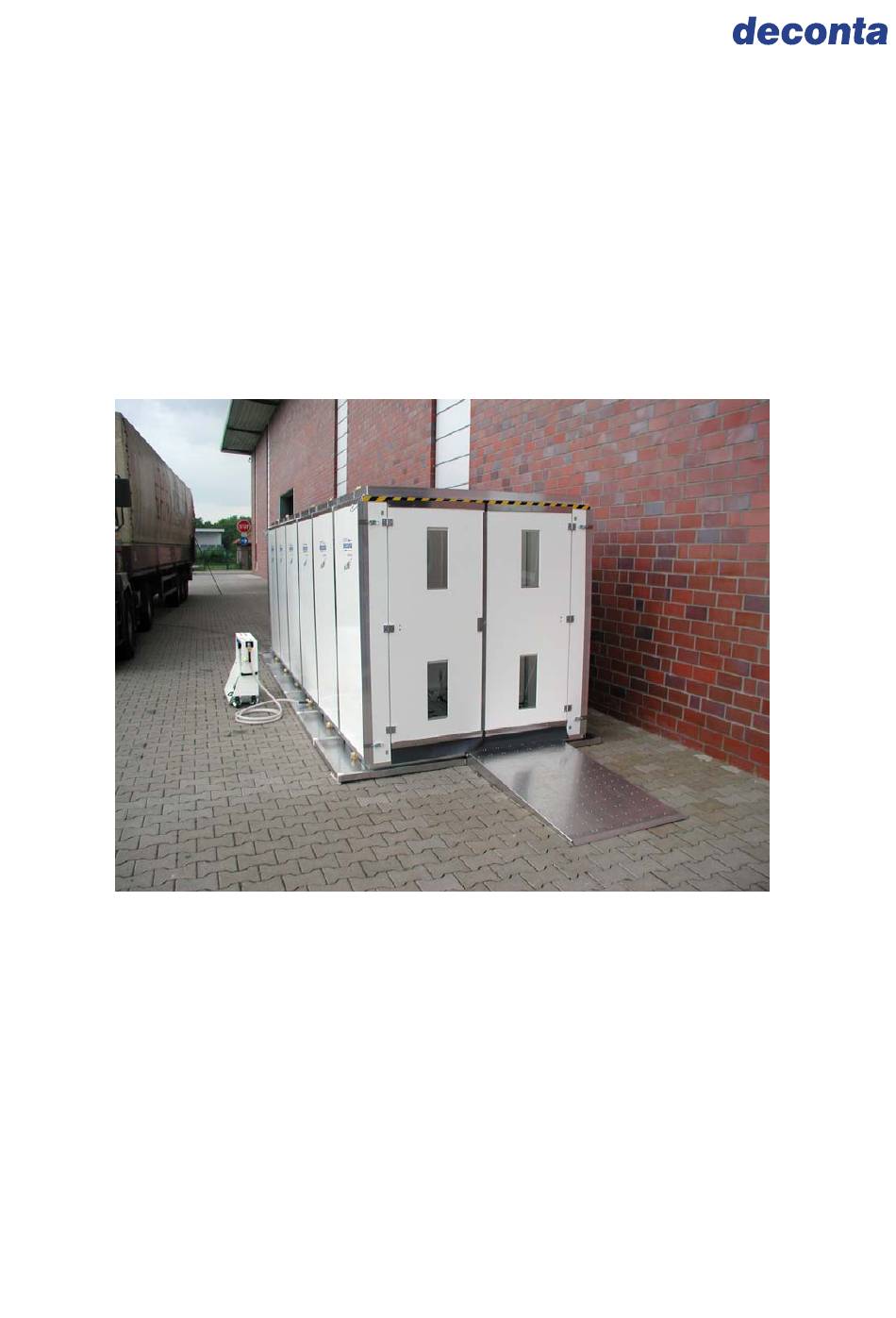

- Page 1 Instruction manual Material lock system Quick-Dush ECO-Line Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg ECO-LINE Descriptioin: Materia lock system Quick-Dush...
-
Page 2: Table Of Contents
Instruction manual Material lock system Quick-Dush ECO-LINE Table of contents on Page Introduction Basic safety advice Transport and storage Scope of delivery Technical description Intended use Description of material lock system Technical data Assembly instruction Preparation Set up Maintenance and care... -
Page 3: Introduction
It will be our pleasure to help and support you and will take then also the liability by the external original use In case of damages (mechanical or electric) or in a breakdown, deconta can help you in a short term with its express service. -
Page 4: Basic Safety Advice
ECO-LINE 2 Basic safety advice deconta has to engage you as the user to follow the guide book and to employ this engineered technology only in accordance with the regulations and not in an inappropriate way! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport And Storage
NPU (negative pressure unit) in dynamical negative pressure. The deconta Material lock system ECO-Line serves to move material inward and outward, as well as to clean asbestos contaminated material without endangering the environment. -
Page 6: Description Of Material Lock System
Instruction manual Material lock system Quick-Dush ECO-LINE 5.2 Description of material lock system The material lock system is distinguished by the following features: Minimal setup-time because of tension looking system, setup without tools All doors with windows Roof element translucent ... -
Page 7: Technical Data
Instruction manual Material lock system Quick-Dush ECO-LINE 6 Technical data Dimensions: per chamber: interior (LxWxH): 880 x 1780 x 2195 exterior (LxWxH): 900 x 1800 x 2230 Water supply: Fresh water connection: 3/4“ hose and GEKA connection to roof element Sewage connection: 3/4“... -
Page 8: Assembly Instruction
Instruction manual Material lock system Quick-Dush ECO-LINE 7 Assembly instruction The lock system can be assembled easily and quickly with 2 persons. 7.1 Preparation: Previous to the assembly of the personnel lock: Determine the exact position and the ground plan ... - Page 9 Instruction manual Material lock system Quick-Dush ECO-LINE Corner profile Pay attention to mounting position! Wall element Insert corner profile onto connecting corner of two base elements and brace quick release clamps, fixed to the end of the corner profile, to the base element. Insert wall element in holder bracket and mount opposite corner profile.
- Page 10 Instruction manual Material lock system Quick-Dush ECO-LINE Hinged doors Insert double doors into holder bracket and fix to corner profile with quick release clamps. Quick release clamp Assemble other double door and the remaining wall elements as described above. Put on the roof and brace quick release clamps, fixed to the ends of the corner profile, with the roof element.
- Page 11 Instruction manual Material lock system Quick-Dush ECO-LINE The lamella curtain („Flaps“) is installed (clamped) with help of wing screws at the junction of both roof elements. Wing screw Place corner profile, where both base elements adjoin each other.. This prevents a water discharge out of the lock system.
-
Page 12: Maintenance And Care
Instruction manual Material lock system Quick-Dush ECO-LINE 8 Maintenance and care Daily maintenance: Control of water hoses to have continuous flow Clean lock area daily Clean the chambers carefully with a moist wiping cloth after each termination of a shift ... -
Page 13: Notes
Instruction manual Material lock system Quick-Dush ECO-LINE 11 Notes Stand: Nov 2020 Seite 13... -
Page 14: Our Service For You
Instruction manual Material lock system Quick-Dush ECO-LINE 12 Our Service for you Open: Monday - Thursday 8:00 - 16:30 Uhr Friday 8:00 - 15:30 Uhr Telephone: (0 28 74) 91 56 - 0 Telefax: (0 28 74) 91 56 - 11...
