A810 Android SIP Video Phone
User Manual v1.0
Shenzhen Dinstar Co., Ltd.
Address: Floor 18, Building 7A, Vanke Cloud City Phase 1, Xingke 1st Street, Xili Sub-
district, Nanshan District, Shenzhen.
Postal Code: 518052
Telephone: +86 755 61919966
Fax: +86 755 2645 6659
Email：sales @dinstar.com
Website：www.dinstar.com
1
Advertisement
Table of Contents
Summary of Contents for Dinstar A810
- Page 1 A810 Android SIP Video Phone User Manual v1.0 Shenzhen Dinstar Co., Ltd. Address: Floor 18, Building 7A, Vanke Cloud City Phase 1, Xingke 1st Street, Xili Sub- district, Nanshan District, Shenzhen. Postal Code: 518052 Telephone: +86 755 61919966 Fax: +86 755 2645 6659 Email：sales @dinstar.com...
- Page 2 61919966。 About This Manual This manual provides information about the introduction of the IP phone, and about how to configure or use it. Please read this document carefully before use the A810 Android SIP video phone. Intended Audience This manual is aimed primarily at the following people: Users ...
-
Page 3: Table Of Contents
Contents 1 Installation requirement ................4 2 Get Started ....................5 2.1 Device Introduction ..................5 2.1.1 Overview ........................5 2.1.2 Features ........................5 2.2 Button and keys ....................6 2.3 Ports ........................ 7 2.4 Specification ..................... 7 2.5 Indicator ......................9 3 Configuration .................. - Page 4 4.1 Call function....................31 4.1.1 Dial numbers ......................31 4.1.2 Incoming calls ......................33 4.1.3 Explanation of function buttons during calls ............36 4.1.4 Call Log ........................39 4.2 Contacts ......................44 4.2.1 Contacts ........................44 4.2.2 Enterprise contact ...................... 51 4.2.3 Mobile Contact......................
-
Page 5: Installation Requirement
Installation requirement Reminder Please read this User Manual carefully before installing and using this device. Please contact us if any issue during using this device, our email is telpouc @telpo.com. Please ensure this device working in the temperature range of 0℃~45℃. ... -
Page 6: Get Started

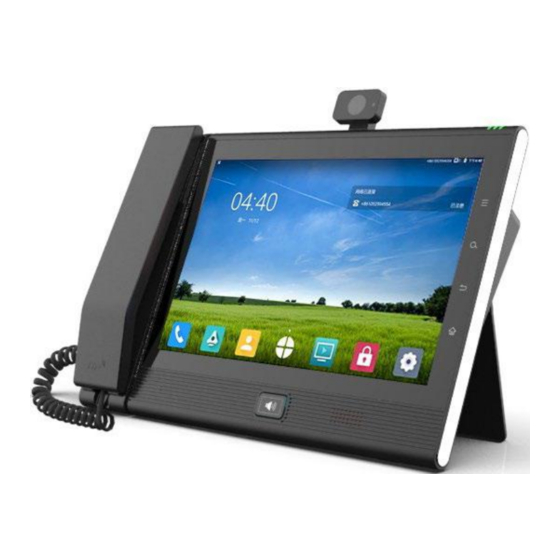

Get Started Thanks for use our A810 Smart Video Phone. Please read the user manual before use this device. In this user manual, we will introduce the specification, features, configuration way, maintain method of A810 with you. 2.1 Device Introduction 2.1.1 Overview... -
Page 7: Button And Keys
Strong contact function Support Enterprise Contact, Mobile Contact, Local Contact. Support functions including fuzzy search, add/edit/delete/import/export local contact. Support black/white list, collector, group etc. Multiple Network Applications Support static IP, DHCP IP access mode, fully application to various network environments. -
Page 8: Ports
2.3 Ports 2.4 Specification Items Video Phone Android 7.1 OCTA core, 64 bit, 2GHz System FLASH 16GB, eMMC 2GB, DDR3 Screen Size 10.1'',1280x800, IPS multi touch screen Camera 8 mega-pixel, angle adjustable Display Angle Adjustment Display angle adjustable from 10 degree~70 degree 2 Ethernet ports, 10M/100M/1000M, adaptive;... - Page 9 Wireless Screen Sharing 1080p@30 2.4G/5.8G Dual WIFIs，IEEE802.11b/g/n/ac, support WLAN AP and WLAN features Bluetooth BT2.1+EDR/3.0/4.1LE Storage Card 1 Micro SD（TF） 1 USB2.0 ， support U disk, headphone, keyboard, USB Port mouse Handset Port RJ-9 Headphone Port One 3.5mm/Bluetooth headphone/USB headphone SIP、TCP/IP ，SIP，...
-
Page 10: Indicator
Call Reminder, Speed Dial Line & SIP 4 lines, 4 accounts Account Android Build-in APP: clock, gallery, web browser, search Features Security TLS, SRTP(AES128) Management WEB/TR069 SDK/API for customer application development; Build- Customized Applications in company contacts Input：AC100～220V Power Adapter Output：DC12V/1.5A Size 300mm*200mm*72mm... -
Page 11: Configuration
Configuration This part mainly introduces the configuration method of this device, will tell the method of basic, voice, network, etc. setting. 3.1 Basic configuration This basic configuration is including the basic device configuration and use. 3.1.1 Touch screen Operation Please tap the touch screen to use the soft key, application, option choosing, button press. -
Page 12: Home Interface
You can plug off the power supply if you do use the device, it will help to save the electric power 3) Restart Please follow the steps below if you want to restart the device: ① Tap “Setting”-“System Maintain” ② Tap “Restart” 3.1.3 Home interface There are some frequently used applications on bottom of Home interface, there ... -
Page 13: Network Setting
On the top right side there are showing network status and current account, you can slide down the status bar to switch the accounts. Long press to change your wall paper. Tap wall paper, and choose the one you ... -
Page 14: Static Ip
If fail to get IP address from DHCP, IP address information will Note: show Not Available. 3.2.2 Static IP You can configure the Static IP following below steps: Tap Setting icon—Ethernet, select Static IP. Pictures show as below: 13 / 63... -
Page 15: Wi-Fi
Parameter Description as below: Parameter Descriptions IP address Set the device IP address Netmask Set the device netmask DNS 1 Local main DNS address DNS 2 Local standby DNS address Gateway Set the outbound gateway 3.2.3 Wi-Fi Tap Setting icon—Wi-Fi, enable Wi-Fi option, and select the WIFI hotspot. 14 / 63... -
Page 16: Wi-Fi Ap
After enable the Wi-Fi option, this device will search AP and show on the list. Connect to the available AP. If the AP is with a password, it will show a Lock icon next to this AP. If the AP is without a password, then it won’t show the Lock icon. -
Page 17: Voip Setting
First please set the hotspot name and password: Please tap Wireless Hotspot Name, set the hotspot name in the pop-up box. Tap Password, and set the hotspot password in the pop-up box. After finish the setting of hotspot name and password, you can turn on the wireless hotspot, then can be searched by the mobile devices. - Page 18 There are 4 VoIP accounts available to set, please tap one of them to enter the configuration interface. 17 / 63...
- Page 19 Parameter description as below: Parameter Descriptions Enable Enable the VoIP account Phone number The register ID of SIP account Password The register password of SIP account The register server of SIP account, server configuration format should be domain/IP[:port],server could be domain or IP Domain address The register server port of SIP account, 5060 by default if not fill...
-
Page 20: Call Setting
Please tap √ to submit the configuration, then success to set the SIP account. If want to modify the account setting, please tap the account directly, and set it basing on your need. Please tap √ to submit after configuration. Clear accounts option to clear all account configurations. - Page 21 Dial if end with # After enable this option Dial if end with #, when dialing, press # to call out after press all number. This option is enabled by default. Hotline After enable Hotline, can set the Hotline number and Hotline delay time, the hotline delay time is 0 by default.
- Page 22 Block logs: can check the block logs. The missed block logs will show on message bar, drop down the message bar to check the missed block logs, as below: Blacklist: can add/modify/delete the black list. The method to add/modify/delete are as below: Long press the contacts log or contact number, select to set as black list.
- Page 23 Enter Setting > VOIP Settings > Call setting > Harassment interception > Blacklist, tap Add to fill in number, name(optional) to set black list. Tap the number in Blacklist to modify. Long press the number to delete. Whitelist: can add/modify/delete the black list. The method to add/modify/delete are as below: Long press the contacts log or contact number, select to set as white list.
- Page 24 If the server doesn’t support sub stream, please disable sub stream Note: before video call. Auto Answer After enable this Auto Answer option, device can pick up all incoming calls during from start time to end time. It will be cyclically effective. ...
-
Page 25: Bluetooth Settings
Attentions: the level higher, the more serious the voice damage. High level will cause sound distortion. 3.4 Bluetooth Settings Tap Setting icon—Bluetooth settings to enter Bluetooth interface, show as below: Enable Bluetooth: After enable Bluetooth, the device will search Bluetooth device and show all on list. -
Page 26: Sound
Brightness: Configure the brightness of the screen, can drag progress bar or tap the brightness level. Sleep time: set sleep time. Device will shut down the screen once over the sleep time. Cast screen: Wireless screen sharing, device can share screen by Wi-Fi. ... - Page 27 Ringer Volume: User can drag the bar to set ringer volume, or tap somewhere on bar to set a ringer volume. Voice Volume: User can drag the bar to set voice volume, or tap somewhere on bar to set a voice volume. Media Volume: User can drag the bar to set media volume, or tap somewhere ...
-
Page 28: Date & Time
3.7 Date & Time Tap Setting icon—Date & Time, to enter the date configuration interface, picture shows as below: Device is Auto Get Time by default. Auto get time zone, is the date and time same with device networking server. If want to set by manual, can disable Auto Get Time and Auto Get Time Zone, then set date and time manually. -
Page 29: Language
3.8 Language Tap Setting—Language to enter language interface. Language options are including English, Simplified Chinese, traditional Chinese. 3.9 Security Tap Setting—Security, to enter security configuration interface, can set screen lock. None: None by default will enter device interface without any password. ... -
Page 30: Advanced Setting
3.10 Advanced Setting Tap Setting icon—Advanced Setting, to enter the system maintenance. Restore factory settings: After Restore factory setting, all settings and information will be cleared. Setting steps: Tap Restore factory settings > OK > Factory data reset > reset phone > Erase everything Update: Use disk to copy update.zip file on system root directory, and tap update ... - Page 31 30 / 63...
-
Page 32: How To Use
How to use 4.1 Call function The phone support audio call and video call. When using call function, please make sure available SIP accounts are already configured. Please refer to 4.1 for the configuration of SIP accounts. 4.1.1 Dial numbers You can dial numbers with the dialer, with the contacts, or with the call records. - Page 33 Dial from Contacts We can enter the contact screen in below ways. Enter the dial screen, and click the “Contacts “label. Tap the “Contacts” icon on main screen. The Contacts includes “Favorite Contacts”, “Enterprise Contacts”, “Mobile Contacts “and “Group”.
-
Page 34: Incoming Calls
4.1.2 Incoming calls When there is an incoming call, the phone rings and the screen display the incoming call information. If it is a call from stranger, the call screen displays the phone number and the place where the call number belongs; If the caller is in our contacts, the number, name and number Calero will be displayed;... - Page 35 We can click the button to answer the video phone call, if we click the button, or simply pick up the handset, or press Handfree button , then it will be an audio call. Reject an incoming call No matter the incoming call is an audio or a video call, we can reject with a click of button.
- Page 36 This equipment 2025 stop ringing, 2011 ring and answer, 2011 and 2026 talk. Call Transfer function need IPPBX supports. Note: 35 / 63...
-
Page 37: Explanation Of Function Buttons During Calls
4.1.3 Explanation of function buttons during calls Explanation of function buttons during audio calls During audio calls, below menu buttons will be displayed. They are hidden by default, but once click on the calling screen, the menu buttons will occur again. Explanation of function buttons in calling screen. - Page 38 Click "keyboard" to pop up the numeric keyboard during the call, and you Dialpad can dial twice During the call, click "Pause" to maintain the original call, listen to the Pause hold sound, and click again to resume the call More Click "more"...
- Page 39 The function menu on the left side in video calls is basically same as the function menu in an audio call. Please refer to the description of function buttons in the audio call in section 5.1.3.1. The function menu above only relates to video calls, which are explained in detail here.
-
Page 40: Call Log
Settings. Please refer to section 4.3.2.10 for details. Voice Click , then the video call will turn to an audio call. 4.1.4 Call Log All Call Log Click the shortcut icon "Dialer" or "Call Log" on the main screen, to enter the "Call Log"... - Page 41 Click the button to view the detailed call information, including the call duration and the date and time when the call started. Function options of Call Log Call initiated by Call Log Click one call record in the Call Log list to initiate an audio call, and click the button to initiate a video call.
- Page 42 ② Batch deletion of call records Click the Settings button in the upper right corner of the Call Log interface, and select "batch delete records" in the dialog box that pops up, and the picture below appears. Check the call record to be deleted and click delete. Add into the blacklist Long press a certain call record, in the pop-up dialog box, click "Add into the blacklist", you can add the number to the blacklist.
- Page 43 Missed Call The Call Log interface displays all the call records by default, we can also choose to display missed calls. Click the icon on the right of "all calls" and tick "missed call", it’s shown as below. 42 / 63...
- Page 44 Call Log - Missed call, check all missed calls. If we have got missed call, the indicator light in the upper right corner will flash red, and the notification bar in the upper left corner will display that there is a missed call. Drop down the notification bar to view, click the notification to jump to the call record interface.
-
Page 45: Contacts
Open the file manager and copy the contact files of USB disk or SD card to the root directory of A810 phone (that is, the directory in the current interface of the file manager). See 5.4.2 for file manager usage... - Page 46 Drop down the status bar to view the importing progress, as shown in the figure below: Import contacts from web (support VCF, CSV, XML format) Log into the web (input phone IP, input account and password to log in) and enter the "Contact"...
- Page 47 Click "OK" to export the local contacts to the root directory of the phone; Pull down the status bar to check the export progress. Export contacts from web (support VCF, CSV, XML format) : Log into the web (enter phone IP, enter account and password to log in) and enter the "Contacts"...
- Page 48 Description: Head image Settings: head image can be added by taking photos or from photo album. If not modified, default to the last word of the name as the head portrait. Number: this field displays the phone number by default. Click the small arrow after "Mobile"...
- Page 49 In addition to adding new contacts to your contacts list, you can also add contacts directly from your call log. The steps are as follows: Enter the call log interface and click the button after stranger number to enter below interface. Click Add, and the dialog box will pop up as shown below.
- Page 50 Select "Save to the existing contacts" to jump to the local contact interface. Click "select contacts" to jump to the edit interface of the contact. The number will be been automatically added to the contact information. If you do not need to modify other information, click the finish button the upper right corner to complete the addition.
- Page 51 Description: Press red button to delete the information of the corresponding row; To supplement information or modify, please refer to the description of adding contact in section 5.3.1.3. After modification, click the finish button in the upper right corner. Contacts - delete contacts Delete contact: enter the contact list interface, long press a single contact in the local contact list, and click "Delete contact"...
-
Page 52: Enterprise Contact
deletion. 4.2.2 Enterprise contact Enterprise contact setting Log in to the web (input phone IP, account and password to log in), click the left menu "Contact" -- click the right menu "LDAP"; Select "Advanced contact"; Fill in the address, port, account and password of the enterprise contact server, and then click submit;... - Page 53 After the device is connected with the mobile phone via Bluetooth, the dialog box will pop up on the LCD interface, asking whether to synchronize the mobile contacts, as shown in the figure below: Click "cancel" then will cancel the synchronization of phone contact book. Click "ok", and the device will synchronize the mobile contact to the device.
- Page 54 Click and select "Sync phone address book", then will pop up the mobile’s name which connected currently with A810 phone via Bluetooth. Select the mobile you want to synchronize, and then the synchronization will be completed in short time. Click and select "Clear Mobile Contacts", a confirmation box will pop up to confirm whether to clear it or not, click "cancel"...
-
Page 55: Favorite Contacts
4.2.4 Favorite Contacts Click "Favorites Contacts" in the contacts interface to enter the favorites contacts list, as shown in the figure below Add contacts to favorites: Method 1: enter the favorites contacts interface and click the menu icon in the upper right corner to select "add Enterprise Contacts", "Add Local Contacts"... - Page 56 Method 2: Enter the Enterprise Contacts, Mobile Contacts or Local Contact, and click the contact to enter the detailed information interface. There is a "favorite" button on the right side of the contact's head image. Click "favorite" button to add the contact to "favorite". After clicking, the state of the button becomes ，click the button again then can cancel the favorite selection.
-
Page 57: Group
To delete favorite’s contacts, just cancel favorites, no longer show Note： in favorites, but contacts still exist. 4.2.5 Group Grouping the contacts from Local Contacts and Mobile Contacts. Tap Group on Contacts interface, to enter Group interface. There are Coworkers, Family, Friends group by default. -
Page 58: Black List And White List
and Mobile Contacts, can tick the box on the right side of each contact, to add into the group. Tap Add Person icon to submit. Picture shows as below. Method 2: Enter Local Contacts or Mobile Contacts, tap Edit icon on each contact detail interface, tap the Groups option Add to Group to add this contact to any group. -
Page 59: Other Application
Add to Blacklist: Because there may be several numbers under on contact, after tap Add to Blacklist, device will pop up a box for double confirm and edit. Create Shortcut: tap Create Shortcut to add this contact shortcut onto the device desktop. - Page 60 Open the File Manager, there is an operating option on the right side of each file and folder, tick it to operate. Tick any file or folder to enter other file manager, tap the icon on the top right side, can operate on pop-up options, including deselect, etc. Tap the searching icon on top right side, can search files.
-
Page 61: Gallery
4.3.3 Gallery You can view the pictures using the Gallery App, picture shows as below: 4.3.4 Input Method Editor Tap any input box on device LCD screen, the input method editor will show up. In the first time, need to make some modify basing on your use habits. There are 26- keys or 9-keys keyboard type in English input. - Page 62 This device is support to install third-party application to meet different needs, and value-adding for various industries. You can install application by browser, USB, SD card, etc. Before install application, please enable the Unknown source installation. Enable to install application on WEB: Log in WEB GUI, enter Menu: Maintain > Other, to enable the Install Application.
-
Page 63: Faq
Q: After connect WAN with Ethernet cable, but the Ethernet icon on device is grey, showing no networking. A: Please check follow the steps as below to promise the correct networking: Step 1st: Check whether enable the Ethernet or not. Tap Setting icon—Ethernet, check whether enable the Ethernet.
