Reborn Pro Tower Bimini Installation Guide
Please take a few minutes to read the entire installation instructions and become familiar with the parts and
installation before beginning to ensure a high quality, trouble free installation. The assembly can be more
easily begun on the ground. A second person will make installation onto the tower more manageable.
Be aware of the following:
•
This tower bimini is designed to fit all LT wakeboard's towers and most other popular brand of towers,

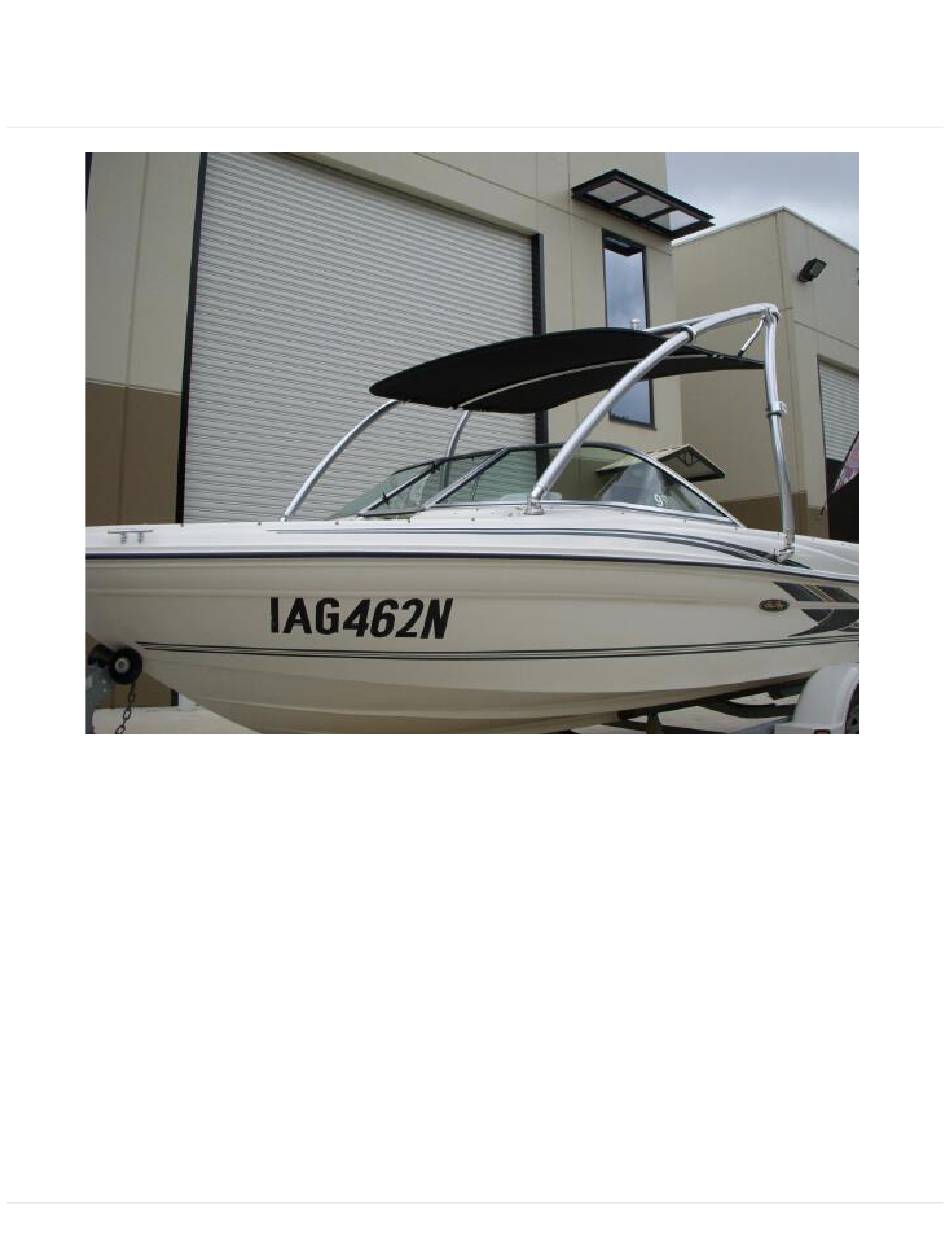

the pictures show the position of the bimini rings on LTX tower.
•
Please be careful when your boat is approaching bridges or overpasses.
•
Please don't modify this product, climb, ride or stand on it.
WARNING: Traveling at speeds in excess of 35 mph may cause damage to your bimini top. The canvas
should be removed trailering your boat.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Seamax Reborn Pro
Summary of Contents for Seamax Reborn Pro
- Page 1 Reborn Pro Tower Bimini Installation Guide Please take a few minutes to read the entire installation instructions and become familiar with the parts and installation before beginning to ensure a high quality, trouble free installation. The assembly can be more easily begun on the ground.
- Page 2 P a g e...
- Page 3 Step 1: Constructing the frame - Distinguish the ends of the middle frame side bars. The 2 mini clamps are at the front and the cross fitting is at rear of the side bars. -The front frame section and the rear frame section are interchangeable. -To prevent damage to the side rails, loosen the set screws prior to moving or rotating the mini clamps.
- Page 4 Step 4: Install the canopy. - Install the canopy on the frame as shown in the right pictures, you can do it easily with the zipper. - Assemble the front support bar on the clamp B as shown in the right picture. Important note: If you want to install this bimini top under the top section of your wakeboard tower, please refer to step5.
- Page 5 Step 5: Install the bimini top under the top section of your wakeboard tower. Install the four bimini rings on the tower’s bars as shown in the right pictures, but don’t tighten the bolts of the rings. Please measure the distance between the 2 rings mounted on the rear bars of tower, and adjust the pins to let the total length of rear frame bar to fit it.
- Page 6 Please make a bit adjustment for the ring to get the best position, then tighten all of the bolts and set screws. Reborn Tower Bimini Canada Distributor - Seamax Marine & Outdoor 102 – 19155 38 Ave, Surrey, BC, Canada V3Z 0Y6 www.seamaxmarine.com 1877-907-7766...
