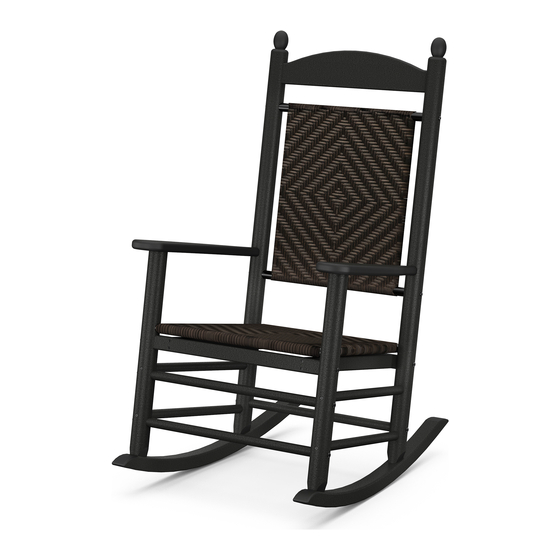

Polywood K147 Quick Start Manual

Model: K147
__(1) Hardware pack
__(2) Sideframes
__(2) Rocker bottoms
__(1) Back insert
__(1) Seat insert
__(1) Seat frame
__(2) Long braces
__(1) Short brace
__(1) Head piece
Rocker bottom
TOOLS NEEDED
4mm Hex Key, Allen, T-handle
(INCLUDED)
4mm Hex Key for Drill: (INCLUDED)
Qty. Description
Finial w/dowel screw
2
A - 1/4-20 X 2-1/2 WAFER SHCS
4
B - .27 X 3 SOCKET WAFER A
14

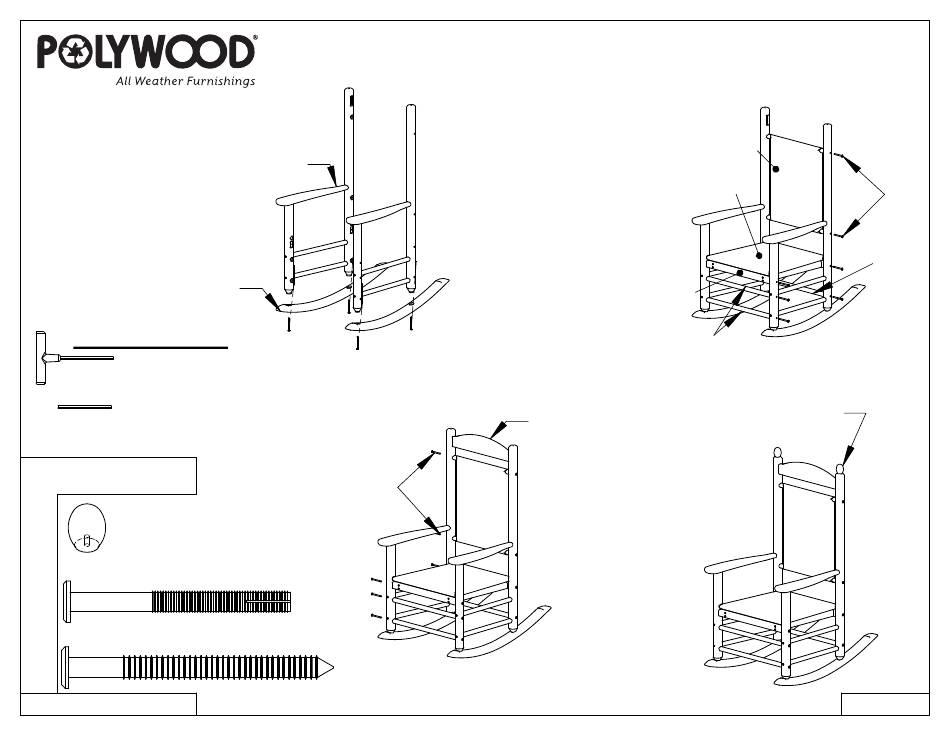

ASSEMBLY INSTRUCTIONS
Step 1
Attach rocker bottoms to sideframes
using (4) .27x3 wafer screws.
Sideframe
B
Step 3
Insert head piece into top of post
Repeat step 2 on other side
A
B
HARDWARE IS COATED STAINLESS STEEL UNLESS OTHERWISE SPECIFIED
Step 2
Attach long braces, short braces, seat frame and seat insert
to one of the sideframes using (5) .27x3" chair screws.
Attach back insert to sideframe using (2) 2½" chair bolts.
Note: Front of seat is wider
NOTE: Partialy thread both screws
into post before tightening.
Rocker bottoms may require some
flexing for proper fit.
Head piece
Back insert
Seat insert
Seat frame
Long braces
Step 4
Attach finials to top of post
A
Short
brace
B
11/21/2012
