Robus LDT150N Instructions

Specification:
Features:
Operation:
Attention:
1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household waste (WEEE
marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a collection centre
for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of carelessly. It is
important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal household
waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 110410

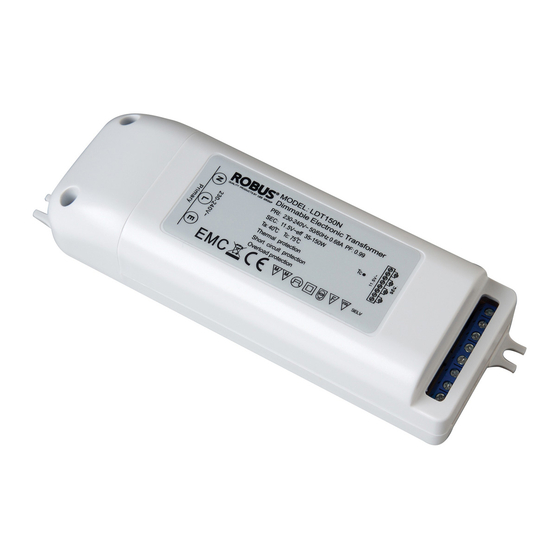

LDT150N
150W Electronic Transformer
Please read instructions before commencing installation and
retain for future reference.
Rated Voltage: 240V~50Hz
Output Voltage: 11.5V~30KHz
Model No.:
Watt range:
Primary Amperage:
Secondary Voltage:
Secondary current:
Ambient temperature:
Max. temperature of housing: 75°C
Dimensions:
Wire length: Min: 30 cm from lighting unit to transformer
Max: 2 meters (use 1.5mm
• Preheat function: protects against current surge.
• Secondary side short circuit protection: short circuit protection.
• Detect overload design: over load protection.
• Dimmable with most standard dimmers.
The transformer is designed to be used exclusively with 12V halogen lamps. Soft start
protects filaments and prolongs lamp life. In case of short circuit and overload, the unit
shall automatically reset when fault is removed.
Electronic transformers must not be used in the same circuit as inductive loads
(fluorescent lamps, discharge lamps, ventilating fans etc.) When switching Inductive
loads, spikes of several thousand volts may result, causing damage to the transformer.
Separate load circuits must always be provided.
Under load on output may lead to lamp flickering, especially on dimmer circuits.
Conventional and electronic transformers cannot be used with the same dimmer.
The length of the secondary wire (12V side) must not exceed 2 meters.
Information for the Product user
Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
SELV equivalent
LDT150N
35W ~ 150W
0.68A
11.5V
3 x 4.2A
-5°C~+40°C
195mm x 50mm x 23mm
2
min cable size)
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
