1/4

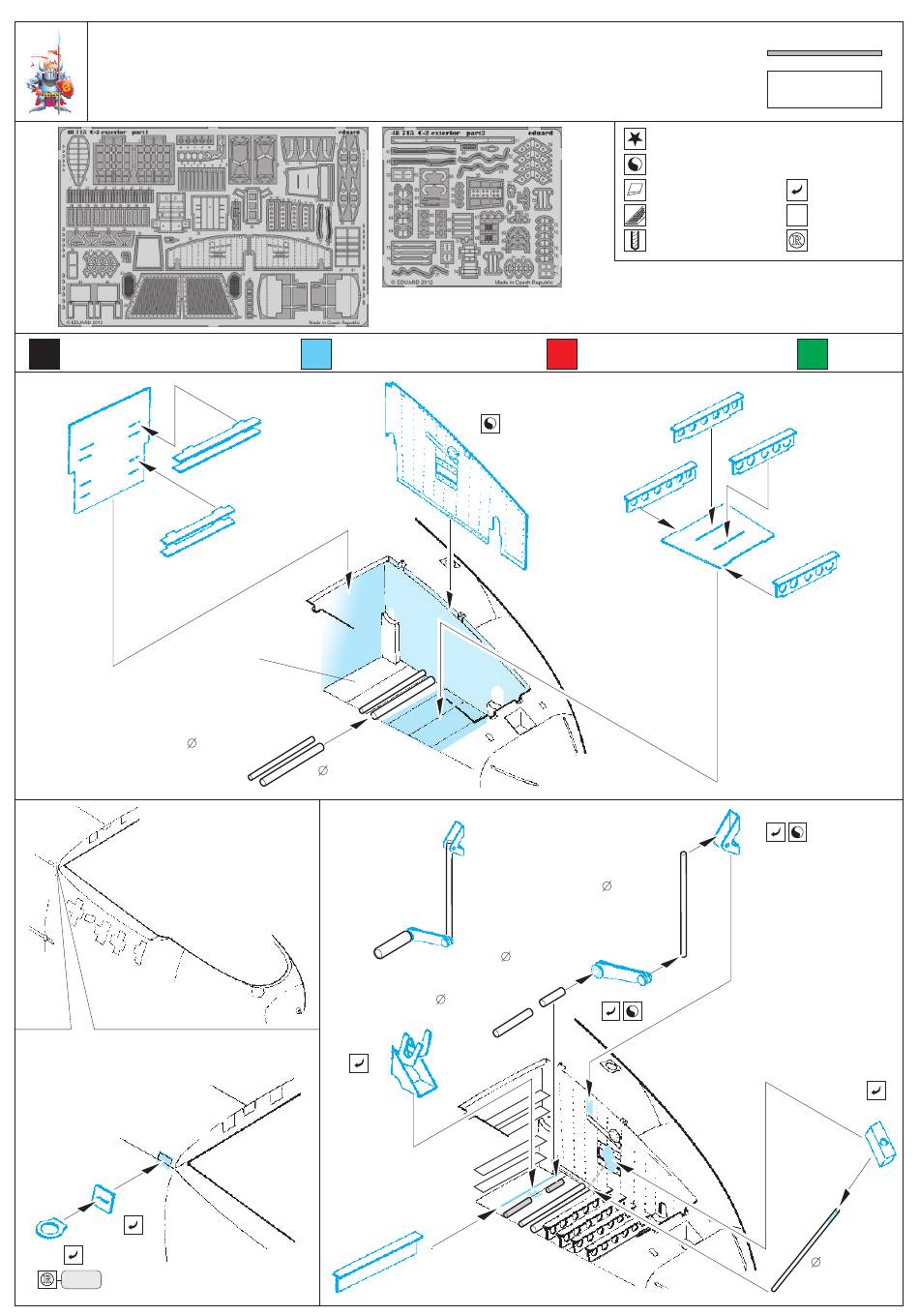

ORIGINAL KIT PARTS
PÙVODNÍ DÍLY STAVEBNICE
24
plastic
= 1,5mm
l = 13mm
Fuselage
62
65
G10
C-2 exterior
1/48 scale detail set for Kinetic kit • sada detailù pro model 1/48 Kinetic
PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
75
2 pcs
76
2 pcs
G5
plastic
= 2,5mm
l = 12,5mm
Fuselage
6
12
13
PARTS TO BE REMOVED
DÍLY K ODSTRANÌNÍ
36
35
21
Fuselage
plastic
= 0,5mm
l = 10mm
plastic
= 1,5mm
l = 3mm
plastic
55
= 1,5mm
l = 5mm
eduard
48 715
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
ODSTRANIT
GRIND
?
OBROUSIT
DRILL HOLE
VRTAT OTVOR
18
19
16
17
20
9
72
Fuselage
48 715
BEND
OHNOUT
OPTION
VOLBA
REPLACE
NAHRADIT
FILL
TMELIT
14
15
73
plastic
= 0,5mm
l = 7mm
