DOT MINI
DM-01
Basic Manual
Page 1 / 27

Advertisement

loading
Need help?

Need help?

Do you have a question about the MINI and is the answer not in the manual?

Questions and answers

Summary of Contents for DOT MINI

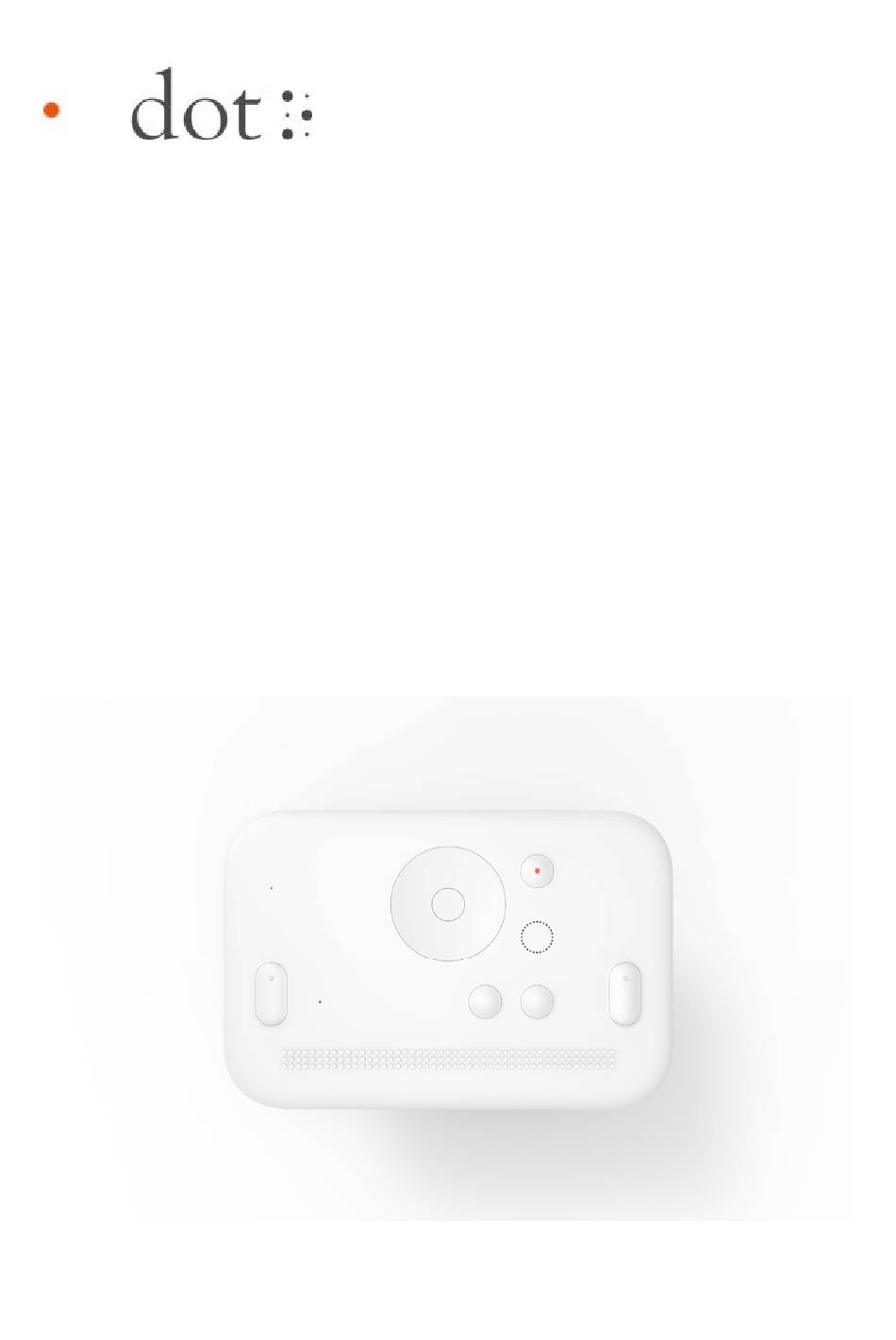

  • Page 1 DOT MINI DM-01 Basic Manual Page 1 / 27...
  • Page 2 II. [Power on/off and Battery] – [Page.6] 1. Powering on/off– [Page.6] 2. Standby mode– [Page.6] 3. Battery– [Page.7] III. [Starting the Dot Mini] – [Page.8] 1. Dot book– [Page.8] 2. Brl Classroom– [Page.10] 3. Music player– [Page.10] 4. Recorder– [Page.11] 5.
  • Page 3 2. Name and Part Functions - Place the Dot Mini so that the braille cells are facing upwards. This is the front of the Dot Mini device. To hold the Dot Mini upright, make sure the braille cells are on the lower half of the display face.
  • Page 4 1) Power key The power key is located at the top right side of the Dot Mini. It is a small, round button. 2) LED LED is located in the upper left part of the front side to indicate power and charging statuses.
  • Page 5 7) Volume Key The volume keys are located on the right side of the Dot Mini device, and consist of two keys – a key to turn the volume up and another to turn the volume down. The volume keys are used to raise or reduce the volume of the Dot Mini.
  • Page 6 - USB-C Port: The USB-C port is the topmost port located on the left side of the Dot Mini. It is used to share data or charge the Dot Mini using PC and USB cables. - USB-A port: The USB-A port is the second port, located directly under the USB-C port. It is used to connect the QWERTY keyboard, etc.
  • Page 7 Your device is now turned off. 2. Standby Mode The Dot Mini will enter standby mode when it is not in use for a certain period of time, to reduce power consumption. The device will vibrate twice to indicate the start of standby mode. Pressing the power key when the Dot Mini is in standby mode will generate two vibrations to indicate that the device is exiting standby mode.
  • Page 8 1. Dot Book You can edit or read a book by connecting the Dot Mini to a PC or external storage device. You can choose to read the file in braille or audio. The Dot Book supports TXT, BRF, epub, and daisy file formats.
  • Page 9 You can mark words or sentences with the underlining or highlighting functions supported by the Dot Book. Enter the highlight menu by pressing the control key and enter key simultaneously. To highlight the selected sentence, press the enter key. To view highlighted sentences, enter the highlight menu again, press the down key to find ‘Open Highlight’, and press ‘Enter’...
  • Page 10 3. Music player You can save and play music by connecting the Dot Mini to a PC or external device. Not only can you read a book while listening to music, but you can also check out the song information.
  • Page 11 You can use the Voice recorder function to easily record during classes or meetings. The file will be saved as an MP3 format and can be stored in either the Dot Mini or an external storage Page 11 / 27...
  • Page 12 2) Recordings lists You can play files recorded with the Dot Mini as well as recorded files stored in an external storage device. Use the up and down keys to move between items. Press the up key to move to the previous item, and press the down key to move to the next item.
  • Page 13 3) Vibration You can choose to enable or disable vibrations for the Dot Mini. Use the left and right keys to choose your preferred option, then press the enter key to save this setting. Disabling vibrations will not give you vibration feedback for turning the Dot Mini on and off, as well as for battery warnings.
  • Page 14 5) Language You can select the language to use the Dot Mini in. (For English braille, you may also select the grade of braille.) You can change the language in the ‘Language’ menu using the left and right keys to select the preferred language, then pressing ‘Enter’...
  • Page 15 [Free Space]. The unit of space used is GB. 9) About your Dot Mini This menu allows you to see the OS version, firmware version, and app version of your Dot Mini. Use the up and down keys to check different information in the menu.

  • Page 16: Safety And Handling Precautions

    Beware that the product may be damaged if a shock is applied. - Keep the Dot Mini dry. The device may malfunction when used in humid or wet environments. - Do not allow close contact or use in close proximity of other magnetic chips, products, or metals.
  • Page 17 data, as it may be lost or deleted during repair. The manufacturer is not responsible for the loss of data. In addition, the Micro HDMI port is only used for A/S purposes, so it is not supported for the user. Please follow the safety precautions below: 1.
  • Page 18 Disconnect the charger when not in use. There may be risks of electric shock when using the Dot Mini while charging. When removing the adaptor, hold the part of the adaptor and carefully separate the adaptor from the device.
  • Page 19 7. [Metal Precautions] Do not place charging terminals close to exposed metal, such as necklaces, keys, coins, nails, watches, etc. If metal objects are shorted to the charging terminal, there may be risk of explosion and/or irreparable damage to the device. 8.
  • Page 20 - It is recommended that you send both the device and charger when sending the product to a customer service center due to any customer issues. - If the product becomes too hot during charging, please separate the charger and Dot Mini using gloves or other equipment.

  • Page 21: Components And Specifications

    - 32 GB SD card ※ The SD card will only be provided for first-time purchases. You must then purchase SD card additionally. Dot Incorp. is not responsible for any problems with SD cards including the repair of SD cards, data loss etc.
  • Page 22 3.7V Single cell Li-ion/polymer battery 5000mAh Builtin 1Body Adaptor(DC 5V 3A) Power Max Charge Current : 2.5A Charge Voltage Range : 4.2V Dot Mini x 1 USB Cable USB C type x 1 Packaging Adaptor for charging x 1 SD Card 32GB x 1 Quick guide braille Manual x 1 ※...

  • Page 23: Regulatory Notices

    Dot Homepage. (Website: www.dotincorp.com) If you have any other questions, please contact us through any of the methods below: E-mail: support@dotincorp.com Customer Telephone and Counseling Center Dot Mate: +82-1811-3324 Homepage: www.dotincorp.com...
  • Page 24 FCC class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 25 The information contained in this documentation is subject to change without notice. In no event will DOT INC. be liable for direct indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 26 [FCC and CE compliance Statement] These limits are designed to provide reasonable protection against frequency interference in residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed or used in accordance with the instructions, may cause harmful interference to radio communication.
  • Page 27 Page 27 / 27...
