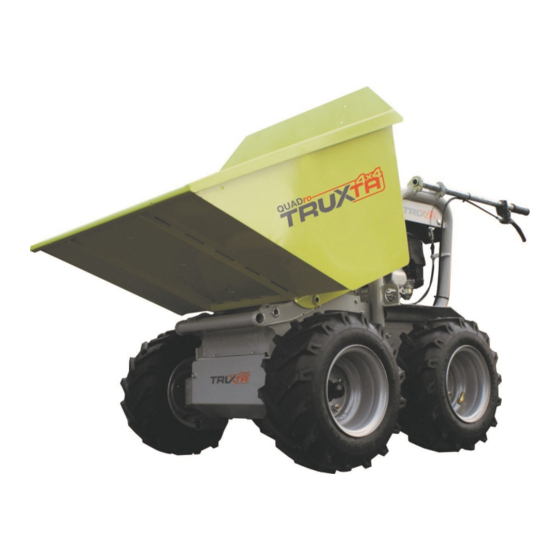

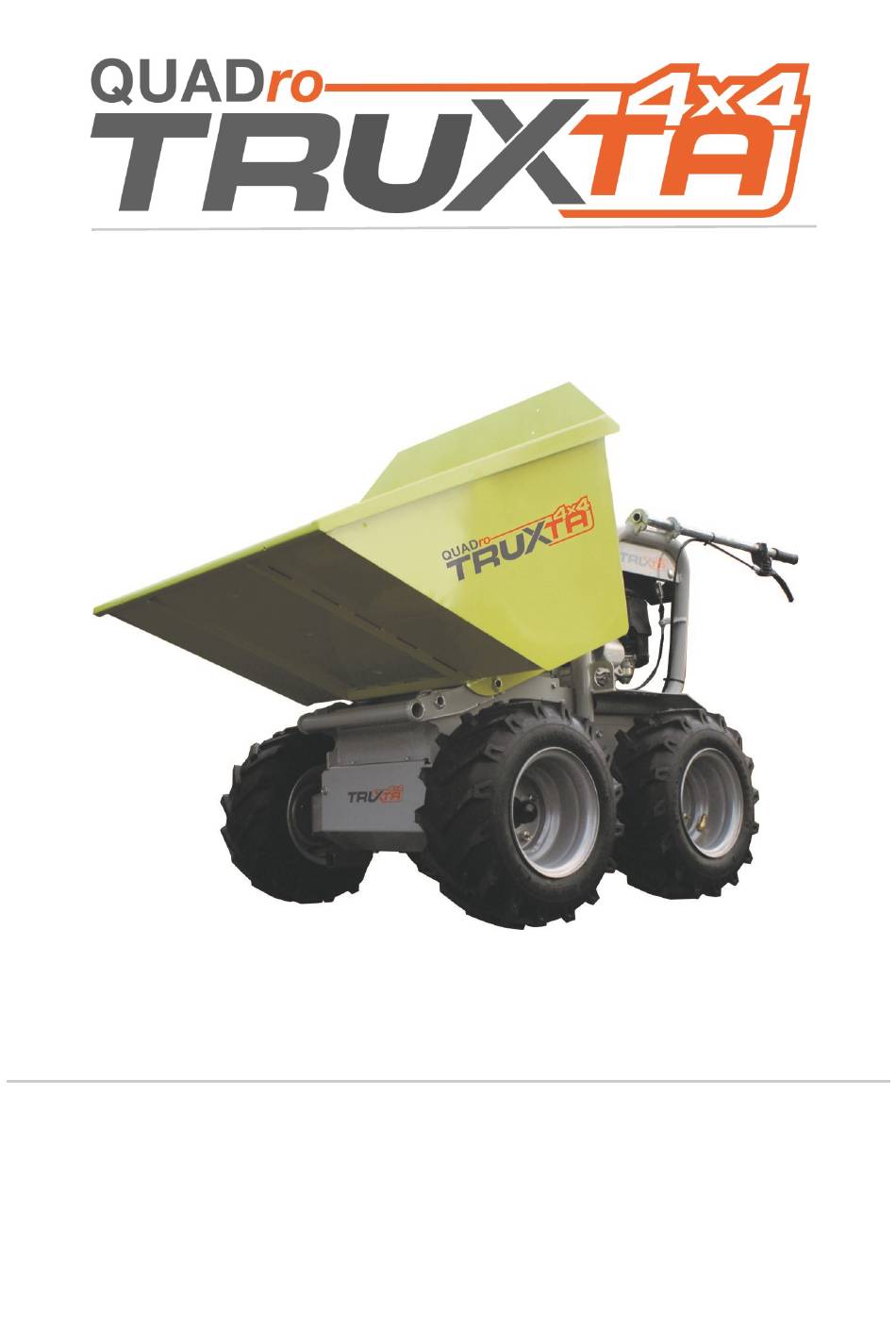

- Page 1 OPERATOR MANUAL & PARTS LIST MACHINE MODELS QUAD Q300G & Q450G SERIAL Numbers from Q181018 Op Manual - Part No 800/17000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Declaration of Conformity .............3 Warning, Symbols & Decals …………………………...……….…..……..4-5 General Safety / Health & Safety ..........6 -7 Machine Specification ………............8 Operating Instructions; - Petrol ............ 9 (Pre-Start Checks, Start and Stop Procedures) Service & Maintenance - Petrol ..........10-12 Service - Pump Control Settings &... -
Page 3: Declaration Of Conformity
Noise Emission in the Environment by of the laws of the Member States relating to the Equipment for Use Outdoors. Equipment Category: Pedestrian Power Barrow Product Name: TRUXTA Model: Q 300G / Q450G Serial No: The technical documentation is held by: TUFFTRUK Ltd Address above The conformity assessment procedure followed was in according with annex VI of the Directive. -
Page 4: Warning Symbols & Decals
WARNING SYMBOLS & DECALS ALWAYS READ THE WEAR APPROPRIATE PPE NOISE LIMITS MANUAL LIFTING POINTS SKIP RETAINER PAYLOAD UN-LADEN CATCH CRUSH ZONE DIRECTION OF TRAVEL WARNING Page 4... - Page 5 ON INCLINES Do not use TRUXTA on inclines / ramps above 25° Do Not travel forwards down inclines. When Tipping always position on a flat Use skip tip handle to release the skip. The skip has a 2-stage tip...
-
Page 6: General Safety / Health & Safety
Never remove or tamper with any guards fitted, they are there for your protection. • Always check guards for condition and Security, if any is damaged or missing, DO NOT USE THE TRUXTA until the guard has been replaced or repaired. - Page 7 If you get fuel in your eyes, Irrigate with copious amounts of water and seek medical attention as soon as possible. Exhaust Fumes Do not operate the TRUXTA indoors or in a confined space, make sure the work area is adequately ventilated. ENVIRONMENT Safe Disposal.
-
Page 8: Machine Specification
SPECIFICATION Model QUADRO QUADRO Q300G Q450G Engine/Motor/ HONDA GX 160 HONDA GX 200 Power kW/hp 3.6 / 4.8 4.1 / 5 .5 Unleaded Fuel Type Petrol 4 stroke 3.1 litres/ 0.682 gal 3.1 litres/ 0.682 gal Fuel Capacity Width x Length x 730mm x 1640mm x 976mm 850mm x 1640mm x 976mm 29 Inch x 65 Inch x 38 Inch... -
Page 9: Operating Instructions; - Petrol
Please refer to the service section for detailed guidance. If any fault is discovered, the TRUXTA must not be used until the fault is rectified. Thoroughly inspect the TRUXTA for signs of damage. -
Page 10: Service & Maintenance - Petrol
SERVICE & MAINTENANCE - PETROL OPERATING THE PETROL TRUXTA Start the engine by putting the throttle to the run position and turning the igni- tion on. (use choke if cold) Grip the dead man lever and hold it down. Use the forward and reverse levers to control direction of travel and speed. - Page 11 Transmission Drive Chains Clean and lubricate the 2 transmission drive chains once a year. Tyre Pressure Truxta tyre pressure should be regularly checked and maintained at 25PSI (flotation and turf tyres) Every Every...
- Page 12 SERVICE & MAINTENANCE - PETROL REGULAR SERVICE - HONDA Each Use First Every 3 Every 6 Every year Perform at every indicated month or Month months months or 300 hrs operating hour interval, whichever comes or 20 hrs or 50 hrs or 100 first ITEM...
-
Page 13: Service - Pump Control Settings & Adjustment
SERVICE & MAINTENANCE - PETROL PUMP CONTROL SETTINGS FORWARD CONTROL CABLE REARWARD CONTROL CABLE DIRECTION SAFETY PUMP PIN (SHOWN IN DIRECTION LOCKED POSITION) BRACKET DEPRESS DEADMAN LEVER TO DISENGAGE PIN PUMP NEUTRAL SETTING CABLE ADJUSTMENT NUTS 1: Adjust Deadman lever cable tension if required, see engage angle. Adjust cable adjustment nuts. -
Page 14: Parts List & Assembly Quadro Top Frame Parts List
QUADRO TOP FRAME ASSEMBLY— PARTS LIST ITEM PART N0 DESCRIPTION 102-03600 FRAME WA RIGID 101-99914 PRESSING TIP HANDLE 102-99939 SPACER TIP LEVER 101-99945 ENGINE COVER 72-0200 MOULDING TIP HANDLE 75-01500 CABLE ASSY FWD and REV 75-02300 CABLE ASSY DEADMAN 75-00900 CABLE SKIP RELEASE 74-1022 HANDLE GRIP... - Page 15 QUADRO TOP FRAME ASSEMBLY— PARTS LIST Page 15...
-
Page 16: Quadro Front Assembly Parts List
QUADRO FRONT ASSEMBLY— PARTS LIST ITEM NO PART NUMBER DESCRIPTION QTY. 60-6509LHF WHEEL ASSY 16X6.50X8 LHS FLOAT 60-6509RHF WHEEL ASSY 16X6.5X8 RHS FLOAT 100-00500 SKIP 300 W.A. 100-00500GL SKIP 300 W.A. GALVANISED 100-01100 SKIP 450 W.A. 100-01100GL SKIP 450 W.A. GALVANISED 101-02100 FRAME SKIP CARRIER W.A 102-03300... - Page 17 QUADRO FRONT ASSEMBLY— PARTS LIST ITEM NO PART NUMBER DESCRIPTION QTY. 102-99953 REAR COVER 6-0006 BANJO BOLT FITTING 6-0007 BANJO FITTING 21-2110 CHAIN 5/8" FRONT 21-2120 CHAIN 5/8" REAR 102-99958 PRESSING REAR AXLE COVER 102-99959 PRESSING REAR AXLE ADJUSTER Page 17...
-
Page 18: Quadro Rear Assembly Parts List
QUADRO REAR ASSEMBLY — PARTS LIST ITEM PART NO DESCRIPTION QTY. 6-2000 TRANSMISSION UNIT 101-03700 SHAFT OUTPUT DRIVE WA 102-03200 BRACKET BASE RIGID WA 8-19001 UNF 3/4" NUT 20-1600 HONDA GX160 300 model 20-2000 HONDA GX200 450 model 101-99956 PRESSING ENGINE DECK 101-99926 PRESSING FOOT BRKT HONDA 101-99927... - Page 19 QUADRO REAR ASSEMBLY — PARTS LIST Page 19...
-
Page 20: Attachments Parts List Flat Bed - Log Poles - Greedy-Boards - Skip Handle
NUT M10 NYLOC 73-2000 QUADRO FLAT BED BASE W.A. 7-10004 SCREW SET M10 X 20 BZP 73-1900 QUADRO FLATBED BACK W.A. LOG POLES X 2 ATTACHMENT FOR TRUXTA (OPTT13-DIO) 73-1100 HOLDER STOP 73-1200 TUBE STOP 72-0400 MOULDING HUB COVER 4-1005... - Page 21 QUADRO ATTACHMENTS—PARTS LIST Page 21...
- Page 22 Page 22...
-
Page 23: Warranty Registration
WARRANTY REGISTRATION FORM Your new TRUXTA is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The TRUXTA warranty is against defects in design, materials and workmanship. The following are not covered under the TRUXTA warranty: 1. - Page 24 Your local TRUXTA Dealer TUFFTRUK LTD THE CROFT SHEEN BUXTON DERBYSHIRE SK17 0EU Tel +44 (0) 1298 84687 sales@tufftruk.co.uk Op Manual Part No: 800/17000 16/ 04/2018...
