Summary of Contents for AdirPro 696-02

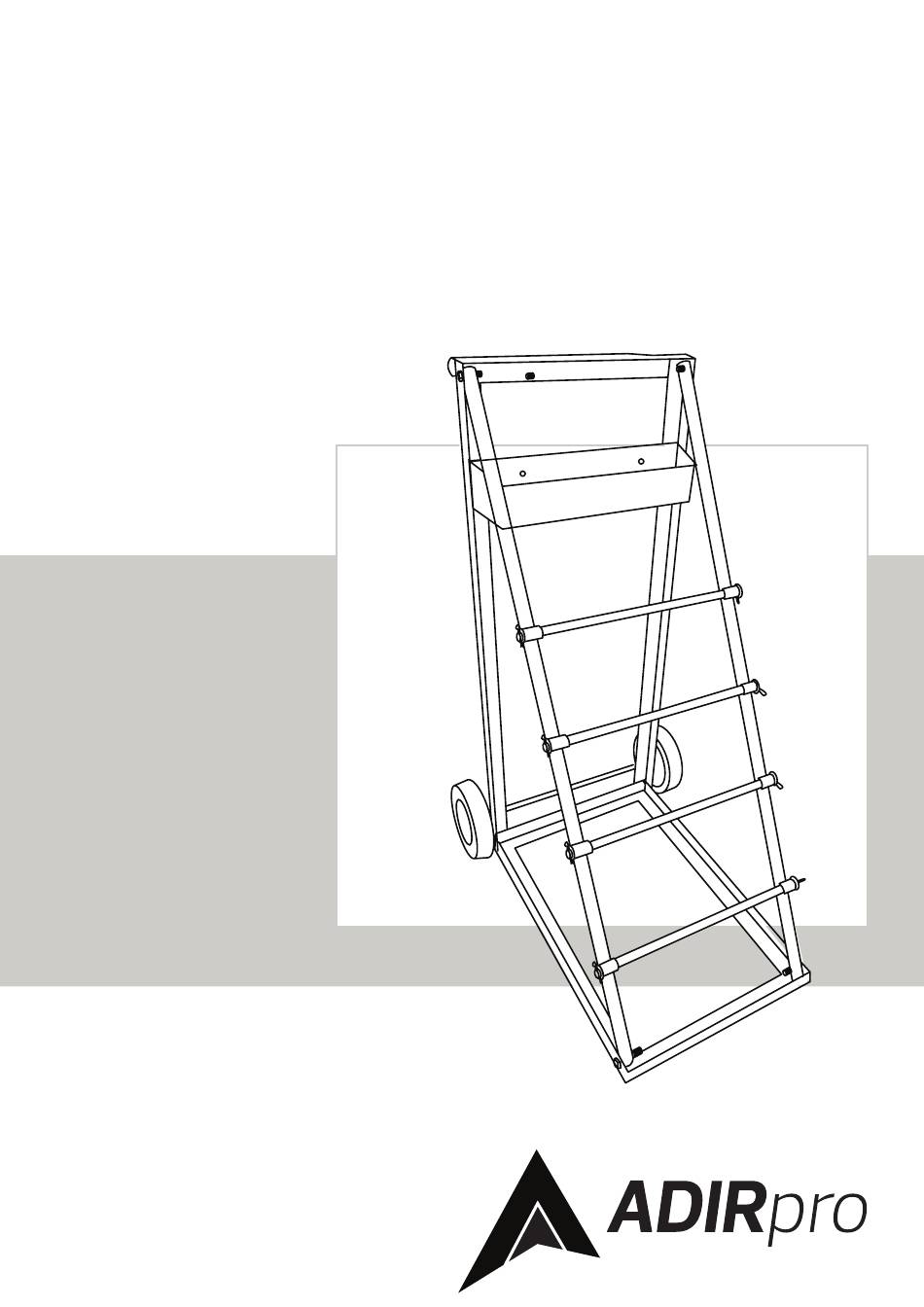

- Page 1 WIRE REEL CADDY WITH HANDLE AND TOOL TRAY Assembly Guide Model # 696-02...
- Page 2 KIT CONTENTS: M8 Nut (2) Pin (x8) Washer (x4) M10 Bolt (x8) M10*40 Bolt (4) M8*15 Bolt (2) Wheel (x2) M10*20 Bolt (x4) Wheel Pin (x2) STEP 1: ATTACH HANDLE Handle Connect the handle to the frame using the ● M10*20 Bolts and Nuts.
- Page 3 STEP 2: VERTICAL RODS AND CROSS BARS Connect the vertical rods to the frame using the M10*40 Bolts and Nuts. ● Attach the cross bars using the Pins and Washers. ● M10*40 Bolt M10 Nut Vertical Rod Cross Bar Washer M10*40 Bolt M10 Nut...
- Page 4 Insert Wheels over the left and right side of the axle. Secure the Wheels the Wheel Pins ● and Washers. Attach the toolbox using the M8*15 Bolts and Nuts. ● Your AdirPro Wire Reel Caddy with Handle and Tool Tray is ready to use. ● M8*15 Bolt M8 Nut Wheel Pin...
