LTV -ICDMxE4230 Quick Installation Manual

LTV-ICDMxE4230
LTV Europe Sicherheitstechnik GmbH
Am Wall 113
28195 Bremen
Germany
www.ltv-cctv.eu
support@ltv-cctv.eu

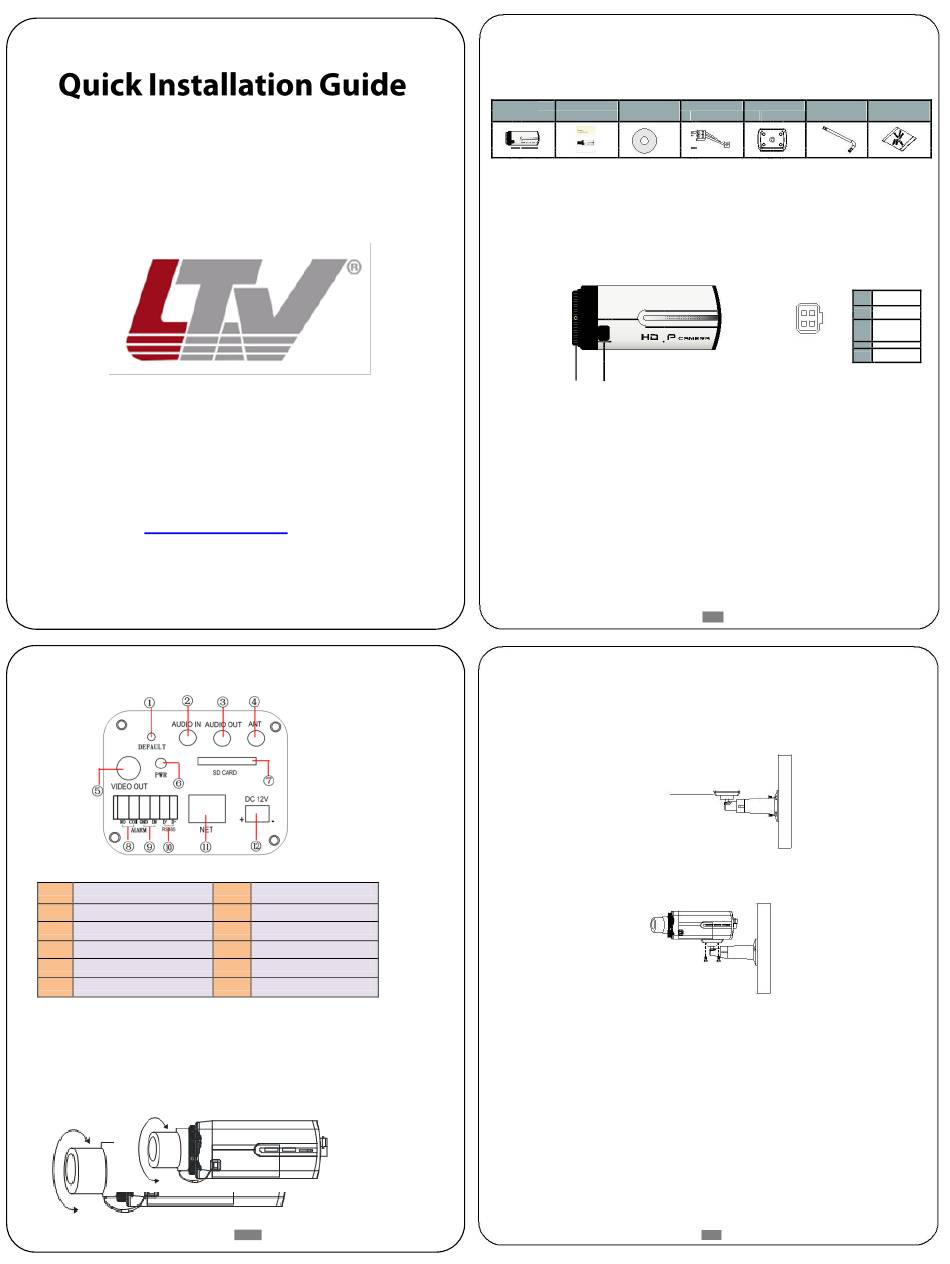

3. Rear Panel Connection
1 Reset key
2 Audio input port
3 Audio output port
4 Reserved antenna port
5 Video output port
6 Power indicator
4. Installation
① Rotate the lens clockwise onto the lens mount of the camera.
② Plug the wire of auto iris lens to the auto iris interface of the camera.
7 SD card slot
8 Alarm output port
9 Alarm input port
10 Connect to PTZ
11 Network port
12 Connect to Power
2
2
1 Package
After you receive your device, please check the following accessories.
The pictures here are for reference only.
Quick Start
IP-CAM Guide CD
For the mounting block, please attach it flat side to the
front. Screwdriver: To adjust the back focus ring.
2.Side Panel Instruction
Focus Adjusting Iris Lens Plug
Focus Adjusting: When it still fails to realize focusing after having
confirmed the correct lens interface, the back focus adjustment may be
required. Operate the following steps: tighten the lens firstly and then
loose the fixed back focus ring; rotate the lens slowly until the video
image turns to be clear, and finally tighten and lock the back focus ring.
Iris Lens Plug: The camera provides an iris lens plug in negative pattern with
four square holes and the definition of pins is shown above. The interface of DC
drive auto iris adopts four pins: Damp+, Drive+, Damp- and Drive-.
③ Connect the power supply and video output.
④ Attach the mounting block to the bracket and then install the bracket to the
wall and tighten the screws to fix it as shown below. Please make sure that
the wall is strong enough to withstand three times the weight of the camera.
Mounting Block
⑤ Attach the camera to the bracket with the mounting block and tighten
the screws to fix.
5 IE Network Connections
● LAN
In LAN, there are two ways to access. 1. Access through IP-
Tool; 2. Directly Access through IE Browser
►Access the camera through IP-Tool
① Make sure that the camera and the PC are well connected to the LAN.
② Find the IP-Tool from the CD and then install it in the
computer. After that, run the IP-Tool as shown below.
Terminal Block Mounting
for Power Block Screwdriver
4 1
3 2
1
3
Screws
DC
1 Damp -
2 Damp +
3 Driver +
4 Driver -
