Summary of Contents for Fancom IR.20-150

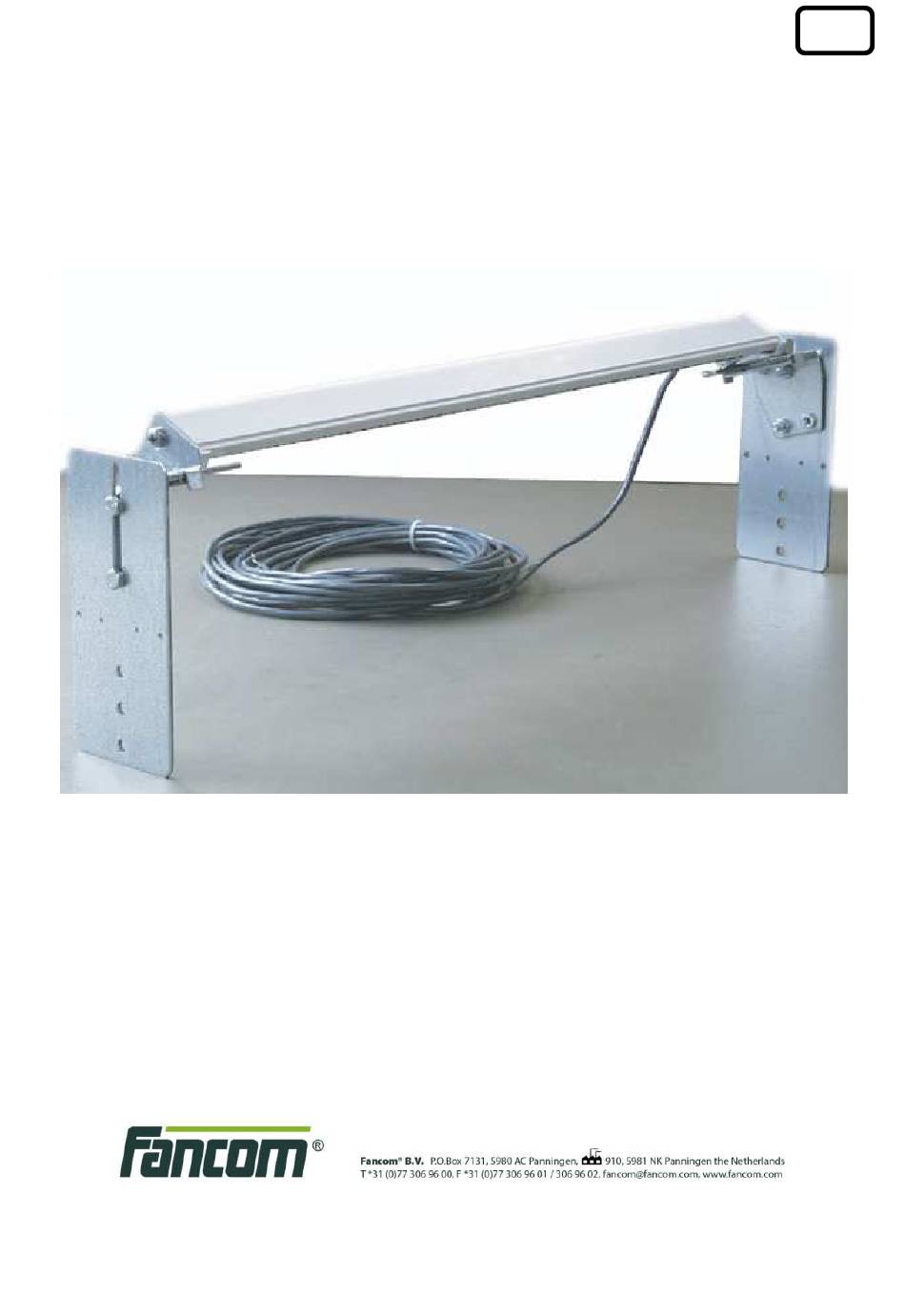

- Page 1 IR.20-150 MANUAL EGG COUNTING SYSTEM...
- Page 2 Fancom be liable for any damages in excess of the amount paid for the products. In the event that any of the products sold hereunder do not conform to the term of the above Limited warranty, the purchaser’s sole and exclusive remedy shall be limited to either (1) return of the goods and repayment of the...
- Page 3 IR.20-150 EC-declaration of compliance Manufacturer : Fancom B.V. Address : Industrieterrein 34 City : Panningen (the Netherlands) Hereby declares that the: IR.20, IR.30, IR.40, IR.50 … IR.150 Satisfies the conditions set out in: The Low Voltage Guideline (Directive 2006/95/EC) According EN-60335-01:2002...
-
Page 4: Table Of Contents
IR.20-150 Table of contents About this manual 1. Introduction ....................1 2. Technical specifications ................2 3. Safety instructions and warnings ............. 3 4. Mounting ....................4 5. Electrical connection ................5 6. Working....................6 7. Maintenance .................... 7... -
Page 5: About This Manual
This manual contains information about the installation and service of the egg counter. Read this manual carefully and follow all safety instructions. If you have any questions, please do not hesitate to contact Fancom. The subjects discussed in this manual are listed in the table of contents. -
Page 6: Introduction
IR.20-150 1. Introduction The egg counting systems have been specially developed for egg counting. The eggs are placed on a conveyor belt and pass underneath the egg counter. Infrared technology is used to count the eggs. The advantage of this technique is that the eggs are not touched. -
Page 7: Technical Specifications
IR.20-150 2. Technical specifications Power supply Supply voltage 24Vdc Power consumption IR.20 40mA IR.30 60mA IR.40 80mA IR.50 100mA … (step - 20mA) … IR.150 300mA NPN open collector Output 1 egg/pulse 15ms duty cycle 10 eggs/pulse 150ms duty cycle... -
Page 8: Safety Instructions And Warnings
Installation and trouble shooting must be carried out by an authorised technician/installer, according to the prevailing standards. Fancom takes no responsibility for any possible damage as a result of incorrect installation and/or a non or partially functioning installation. Read the safety instructions carefully before mounting and using the IR.20- 150. -
Page 9: Mounting
IR.20-150 4. Mounting Observe the following points when mounting the egg counting system: Mount the egg counter in an inclined position above the conveyor using the bracket supplied (see Fig. 1). See bracket mounting drawing. The sensor is at the bottom of the egg counter. Ensure the bracket does not cover the sensor. -
Page 10: Electrical Connection
IR.20-150 5. Electrical connection Observe the following points when connecting the egg counting system: Use low voltage cables for electrical connection of the egg counter (max. length 100m). Connect the egg counter according to the instructions in Fig. 2. Mount the cables so that they cannot be damaged. -
Page 11: Working
The IR.20-150 egg counter gives one pulse per egg or one pulse per 10 eggs. LED indication The IR.20-150 has several LEDs (the IR.20 has 2 leds; the IR.30 3 leds; the IR.40 4 leds; the IR.50 5 leds until IR.150 15 leds). These leds indicate the egg counter status (Fig. 3). -
Page 12: Maintenance
IR.20-150 7. Maintenance The egg counter normally requires a minimum of maintenance. The lens usually remains dust free. If the counter functions inaccurately, clean the lens. Clean a dirty lens with an antistatic cloth or compressed air, preferably once a month. If necessary, a non-aggressive glass cleaner can be used.
