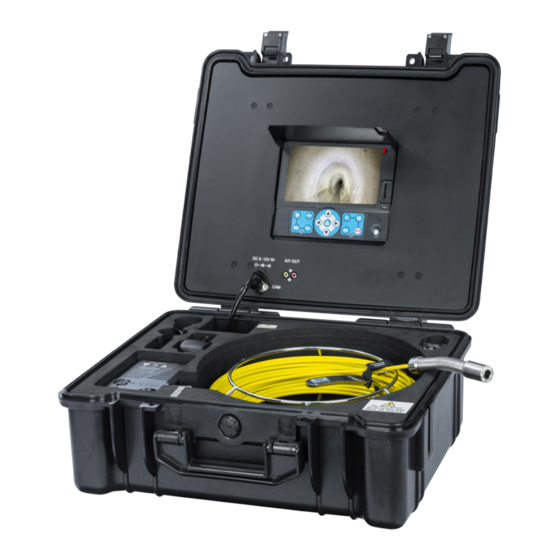

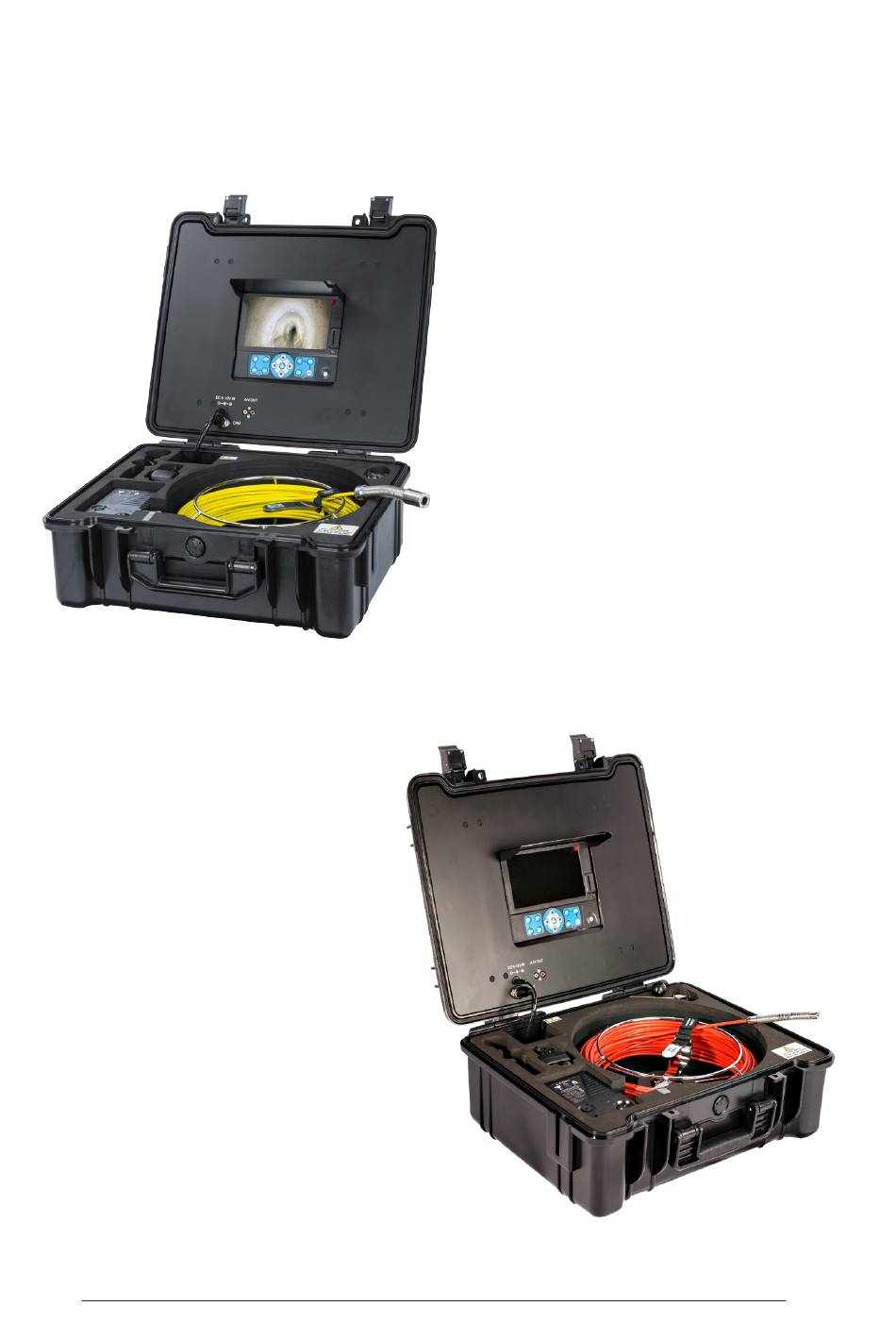

- Page 1 Pipe Inspection Camera System Operation Manual Model No.:3199F-23 VS-719 VS-719plus Model No.:3199F-14 VS-719A VS-719Aplus Read this Operation Manual carefully before using this tool...
-
Page 2: Know Your Tool
[ INTRODUCTION] The pipe inspec tion system is a power f ul set of tools that helps you locate and diagnose pr oblems in a pipeline system. The system is widely used in inspec tions of Sewer, centr al air conditioning, chimney, plumbing, building, cable pipe and pipe ventilation systems and other places. -
Page 3: Camera Head
Camera Head Cable wheel and push cable 1. Sapphir e Lens 1. Rotation Mechanism 2. 304#Stainless Steel Shell 2. Handle 3. Stainless Steel Spring 3. Cable Connec tor (To Camer a) 4. Gold Connec ter 4. Cable Wheel 5. Push Cable Figure 1. -
Page 4: Package Contents
PT/WT HOME MENU EXIT Figure 5. DVR AND TOOL BOX Package Contents Toolbox with DVR Remote contr ol Cable wheel and push cable Oper ation manual Bat ter y pack and cable 6. Fuse (2x) 46 Suppor t guides 80 Suppor t guides PT/WT HOME MENU... - Page 5 [ DESCRIPTION SPECIFICATIONS AND STANDARD EQUIPMENT ] specifications Item Parameter Oper ating Temper atur e -10~50°C/+14~+122°F Oper ating Humidit y 30%RH~90%RH Stor age Temper atur e -20~60°C/+4~+140°F Gener al Power adapter Input:110VAC~240V AC, Output:12V DC 1200mA MEAS. 53.5×23×47cm (Lx W xH) Weight 10Kg(Appr ox) Φ23mm camer a head...
- Page 6 [ INSTALLATION ] To r educe the risk of serious in jur y during use, f ollow these pr ocedur es f or pr oper assembly. 1. Install Camera Head Put the c able int o the hook of the handle, (Figur e 7.) Hold the c able c onnec t or in one hand, then scr e w the camer a and fix it on the cable tightly.
-
Page 7: Install Sd Card
5. Install SD Card (Figur e 14.) CARD SLOT SD CARD USB CABLE USB SOCKET Figure 14. Instal l SD Card 6. Turn on the battery pack and DVR. [ FUNCTION GUIDE AND OPERATING INSTRUCTIONS ] DVR Icon 1.83m 6.0ft 1. -
Page 8: Live Video
[ FUNCTION GUIDE ] 1. Live video Pr ess [ ] to turn on/of f DVR to enter the live video mode, then pr ess [ ] to enter playback mode. Pr ess [ ] to star t / stop r ecor ding. Pr ess [ ] to mirr or or /and r ever se the image. - Page 9 [ PUSH CABLE AND CAMERA OPERATION ] At the job site 1. Always wear rubber gloves t o oper ate the camer a f or health and saf et y r easons. Pr operly positioning the cable r eel will save time and str ength to push out and in the cable, and minimize the r ate of equipment damage.
- Page 10 [ BATTERY SAFETY AND USING GUIDE ] Using safety Read the f ollowing bat ter y pr ecautions bef or e char ger, to r educe the risk of elec trical shock. 1. Rechar ge bat teries with accessor y char ging units. 2.
-
Page 11: Text Input
[ WIRELESS KEYBOARD OPERATION ] （Optional） The k eyboar d t ex t writ er is used t o t ype char ac t er s with the wir eless k eyboar d and display on scr een. The char ac ter s can be displayed in r ecor ded video or captur ed photo. It suppor ts max. 384 char ac ter s and quick one key hiding char ac ter s. -
Page 12: Specifications
[Meter Counter User manual ] （Optional） Specifications Item Parameter Display length Meter and Feet Cable Length 20/30/ 40 meter s (optional) Accur ac y 9cm/0.3Feet Deviation ±0.7% Counter Range 0~40 meter s Oper ating Temper atur e -10~50°C/+14~+122°F Oper ating Humidit y 30%RH~90%RH Stor age Temper atur e -20~60°C/+4~+140°F... - Page 13 Camera C23MNS :23mm camera head with self-leveling （Optional） For 5.2mm fiberglass cable Type Item Parameter Sensor CMOS T V-Line 420 T V-Line Resolution 720×576 Image View Angle 120° Focus Distance 20cm (appr ox) Depth-of -Field 100cm(appr ox) Fr ont Lens Sapphir e Figure 19.
-
Page 14: Part Number List
Part Number List Par t Number Par t Name Specifications Pic tur e CMOS 480T VL, Φ23×155mm, C23MNO 23mm camer a head 120° View Angle CMOS 420T VL, Φ23×155mm, C23MNS 23mm camer a head 120° View Angle with Self Leveling CMOS 480T VL, Φ23×155mm, C23MTO 23mm camer a head... - Page 15 Part Number List Par t Number Par t Name Specifications Pic tur e 3-412 Remote Contr ol 13 Key Remote Contr ol 5-612 7-inch Video Recor der, 14Key 2-301 Bat ter y Pack 7.4V 6600mAh Bat ter y 2-312 Adaptor DC 12V 1.5A Adaptor 2-323 Car Char ger...
