Quick
Start
Guide
A FreeSpeak Edge™ wireless system consists of:
Audio routing to and from beltpacks and other audio devices.
A Core Configuration Manager (CCM) to quickly operate and configure your FreeSpeak Edge system.
Up to 6 IP-based transceivers and up to 10 E1 transceivers provide coverage zones for beltpacks.
Up to 16 wireless beltpacks (FSE-BP50, FSII-BP-19, FSII-BP-24).
Up to two optional E1 transceiver splitters (FSII-SPL) that run up to five separate transceivers each.
Up to eight Dante ports.
Suitable headsets such as the Clear-Com CC-300-X4 that
communication to the Central Station.

Accessing the CCM

1. Power the FreeSpeak Edge Base Station and connect it to a network using the LAN1 port.
2. Use the Rotary controllers to navigate to: Menu>Networking>Management>IP Address.
3. In a web browser address field, enter the IP address from step 2.
3. Use the Rotary controllers to navigate through the menu system: Menu>Administration>CCM
Access>Default Password.
5. In Login screen, enter your username (admin) and the default password from step 2.
Connectors, controls and indicators

Connecting transceivers

You can connect up to 10 E1 transceivers using a splitter to the RJ45 E1 ports and 6 IPTs via one of the LAN ports.
For cable lengths, and more information, see the
page). (https://www.clearcom.com/freespeak-edge-knowledge-center/).
1. Connect your E1 transceivers to the FreeSpeak Edge Base Station using the RJ45 or Fiber E1 connectors.
2. Connect your IP transceivers to the RJ45 or Fiber LAN connectors.
From the CCM, navigate to Hardware>Resources and select
3.
4.
Select IP
Transceivers.
5. Select the transceiver to register from the left-hand area of the screen and click the right-hand arrow.
07 June 2021
PN: PUB-00017 Rev B

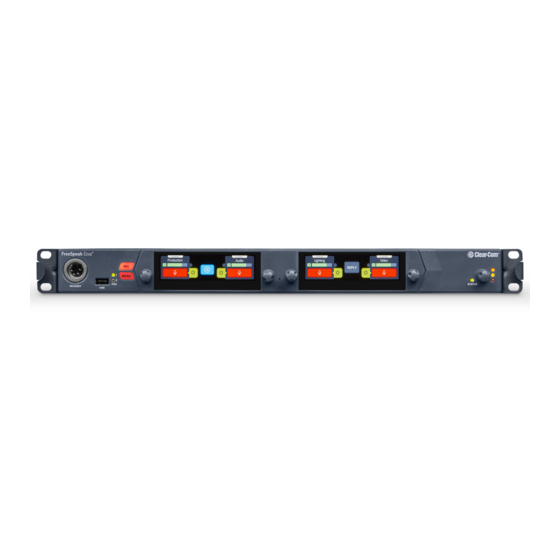

FreeSpeak Edge™ Base Station
FreeSpeak Edge Knowledge Center
can be connected to the front panel to allow
(QR code at the bottom of this
Add Resource.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FreeSpeak Edge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clear-Com FreeSpeak Edge

  • Page 1 (QR code at the bottom of this page). (https://www.clearcom.com/freespeak-edge-knowledge-center/). 1. Connect your E1 transceivers to the FreeSpeak Edge Base Station using the RJ45 or Fiber E1 connectors. 2. Connect your IP transceivers to the RJ45 or Fiber LAN connectors. From the CCM, navigate to Hardware>Resources and select Add Resource.
  • Page 2 Connecting Beltpacks For a quick, easy setup, Clear-Com recommends that you use USB registration to connect up to 16 beltpacks. A role will be created with channel 1 on button A and channel 2 on button B for all beltpacks.
