Illumra ZBT-S1AWH Quick Start Manual

Decorator Style Battery-Free
ZigBee ® Switch
ZBT-S1AWH (single rocker, white)

Overview

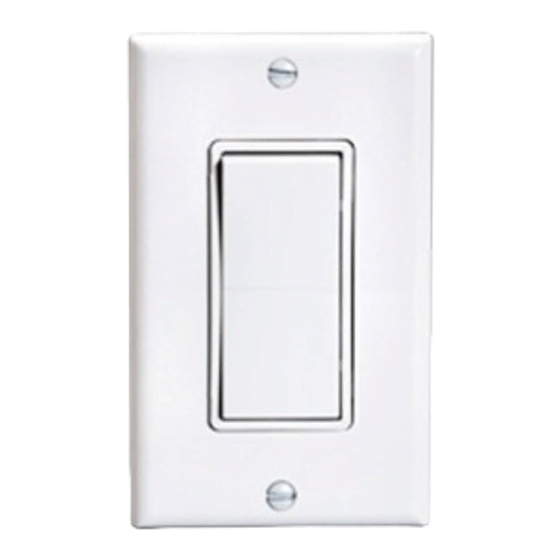

The Decorator Style Battery-Free ZigBee Switch
is a wireless transmitter that communicates
with a wide variety of ZigBee enabled
receivers. Every time the switch is pressed a
micro-generator produces a small electrical
current that powers a built-in transmitter. This
transmitter sends wireless radio signals that are
used to remotely control a receiver.

Compatible With

ZigBee Green Power
(included in ZigBee 3.0)
Lindon, UT• www.ILLUMRA.com • 801-349-1200

Specifications

ZBT-S1AWH Decorator Style Battery-Free ZigBee
Switch
Range 50-150 ft (typical)
Frequency 2.4 GHz (ZigBee channels 11-26)
Power Supply Self-generated when switch is pressed
Buttons 2 (1 rocker)
Dimensions 2.75 (W) x 4.5 (H) x 0.62 (D) inches
Operating -13º to +149º F
Temperature (-25º to 65º C)
Radio Certified according to FCC, IC and CE
Certifications regulations
Addressing Factory Set Unique ID
Contains FCC ID: SVZ-PTM215Z
Contains IC: 5713A-PTM215Z
The enclosed device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (i.) this device may not cause harmful
interference and (ii.) this device must accept any interference received, including
interference that may cause undesired operation.
Always follow local electrical codes when installing this device. Installation should
be performed by a qualified electrician.
This device or certain aspects thereof is protected by at least one of the U.S. or
international patent or has at least one such patent application pending.
AHD0611B

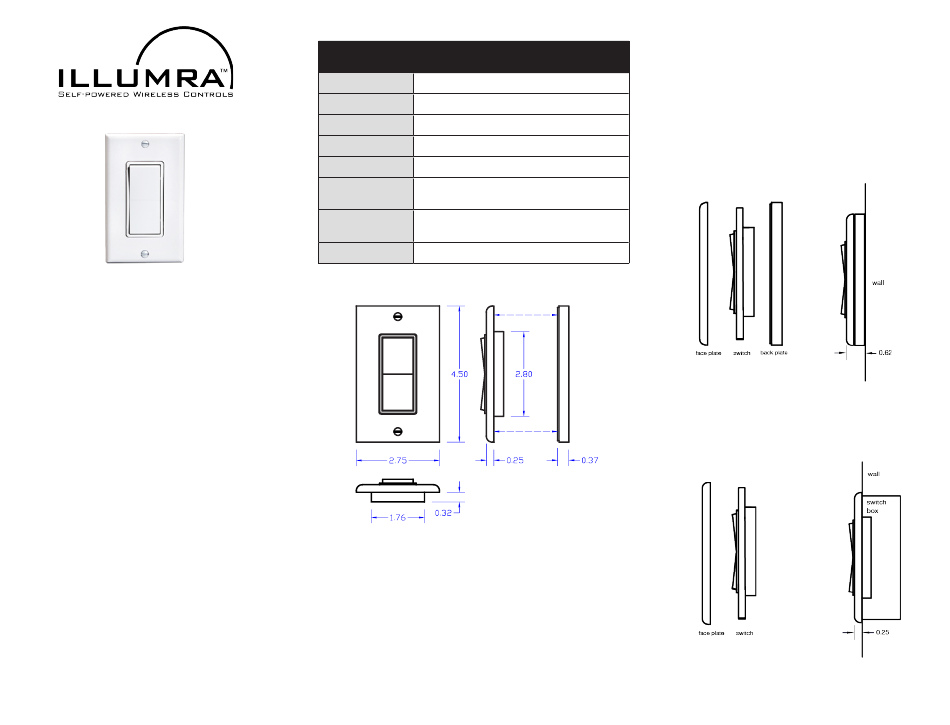

Mounting

Commission (link) the switch to your system
before mounting.
The light switch is compatible with standard
decorator style faceplates.
A faceplate is included.
Surface Mount
For surface mount, attach included backplate
to the wall using screws or adhesive.
Flush Mount
For flush mount, mount the switch without the
backplate into a standard electrical switch box
using included screws.
