Ⅰ. Specification
Heating Power:
Plate Area:
Plate Material:
Temperature Sensor:
Range of Adjustable Temperature: 50℃～300℃
Ambient Temperature:
Temperature Stability:
Outer Dimension:
Weight:
Ⅱ. Features
1. Surface plate temperature distributes equally.
2. Variable closed loop K type thermocouple temperature CPU control, digital display, zero voltage heater
switching.
3. Two switches control power and heating separately. Temperature also displayed when cooling.
4. ESD safe by design.
5. External temperature calibration facility.
6. Hinged hood creates an oven like environment for reflow.
7. Two heating options (Pre-heating ＆Reflow).
Scientific technological Center
Via Bovio 6 – 28100 Novara - NO - Italy
Tel +39 0321697200 - Fax +39 0321 688515 - Email:

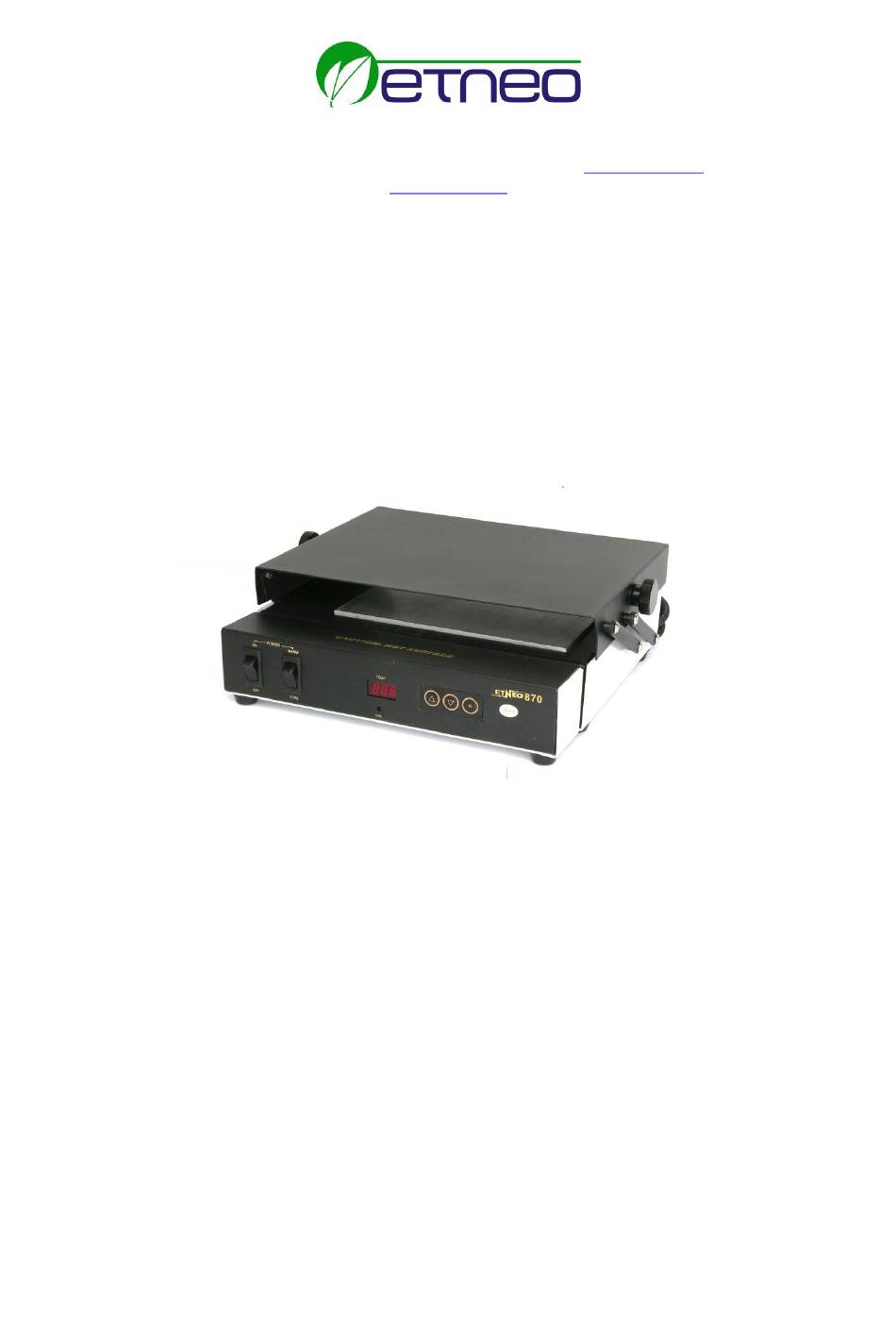

PRE-HEAT/REFLOW HOT PLATE
MODEL 870 ESD
Operation MANUAL
800W
180mmx200mm
Aluminium
K Type Thermocouple
0～40℃
±2℃
280(W) x290 (L) x100 (H) mm
5kg
www.etneo.com
info@etneo.com
Advertisement
Table of Contents
Related Manuals for Etneo 870 ESD
Summary of Contents for Etneo 870 ESD
- Page 1 Scientific technological Center Via Bovio 6 – 28100 Novara - NO - Italy Tel +39 0321697200 - Fax +39 0321 688515 - Email: info@etneo.com www.etneo.com PRE-HEAT/REFLOW HOT PLATE MODEL 870 ESD OPERATION MANUAL Ⅰ. Specification Heating Power: 800W Plate Area:...
- Page 2 Ⅲ. Operation 1. Insert the plug into a suitable mains outlet. 2. Turn on the power switch. 3. The unit will display the temperature of the hot plate after displaying the set temperature for 2 seconds. 4. Adjust the UP and DOWN buttons to change the plate temperature (See Temperature Adjustment). 5.
- Page 3 If the ‘*’ button is pressed for no more than 1 second, the present set temperature will display 2 seconds. When pressing the ‘*’ button, the power supply to the heating elements will be out off. When the temperature setting exceeds the maximum limit, the value of 100 will flash again. If this condition takes place, please input the correct temperature value again.
