INSTRUCTION
MANUAL
FOR MODELS
MT-45 / MT-60 / MT075-DX
POWERED BY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXI TRAC MT-45 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EvaKool MAXI TRAC MT-45

Summary of Contents for EvaKool MAXI TRAC MT-45

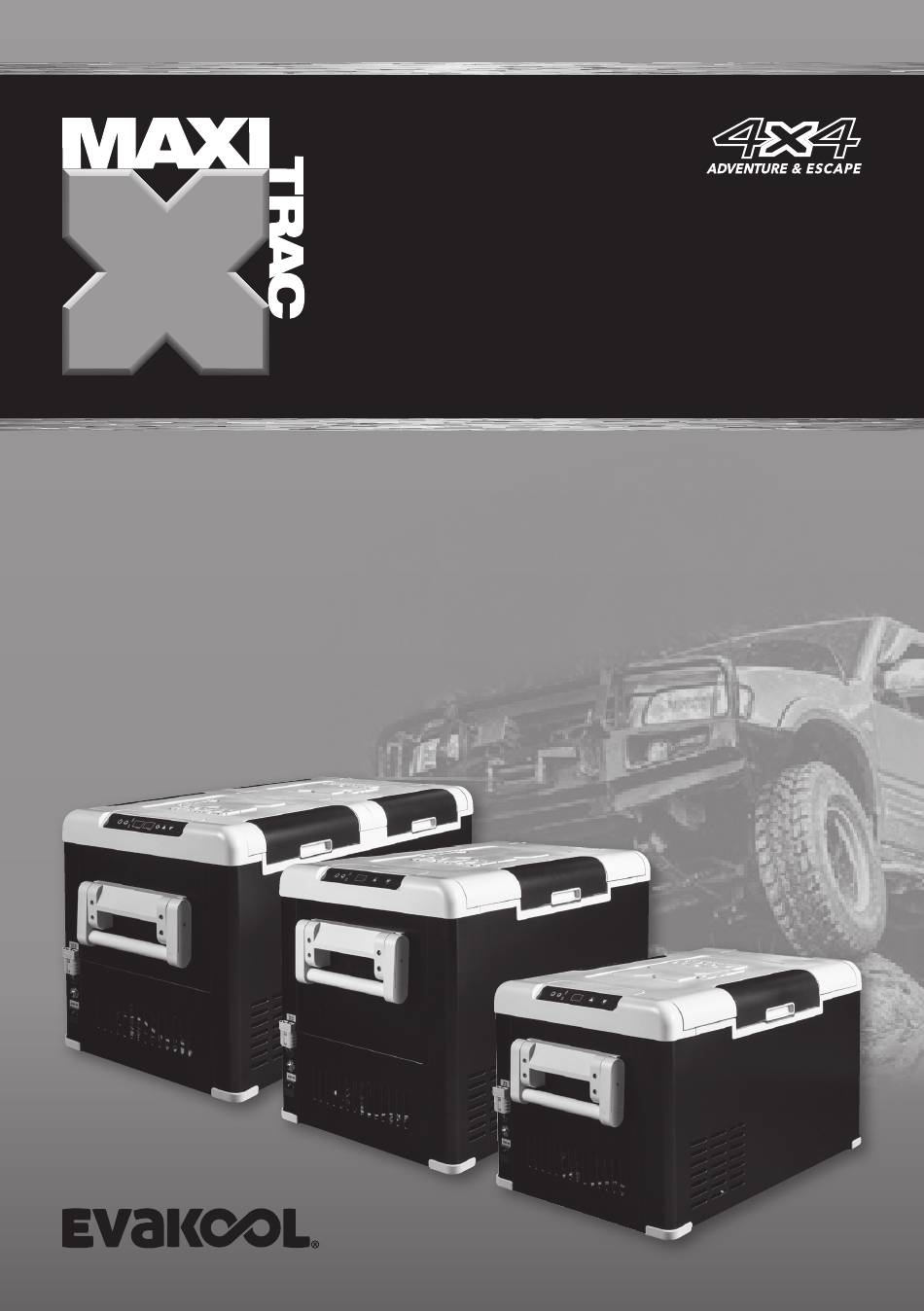

  • Page 1 INSTRUCTION MANUAL FOR MODELS MT-45 / MT-60 / MT075-DX POWERED BY...

  • Page 3: Table Of Contents

    Please read operating manual carefully before using your new device. Please keep manual in a safe place. If lost find a digital copy at Evakool.com.au or contact Evakool on (07) 5492 5495. Contents Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

  • Page 4: Safety Instructions

    1 Safety Instructions • Do not use if any cabling is damaged, frayed or exposed . Especially on AC power supply . • This appliance may only be repaired by a qualified technician . • Do not attempt to operate this unit if wet . •...

  • Page 5: Operating Instructions

    2. Operating Instructions 2a Initial Startup Pre check: • For hygiene reasons we recommend cleaning the inside of the cabinet before use (see section 4 defrosting and cleaning) . • Your unit requires good ventilation especially around the vents of the engine compartment, allow at least 100mm gap around all vents .

  • Page 6: Control Panel

    2b Control Panel DUAL ZONE Freezer Fridge SINGLE ZONE 1. On/Off button. press and hold for 3 seconds to turn on unit . The LED display will light up and display the temperature inside the fridge . 2. Speed selection button. press set button once, the Turbo Light (4) will come on indicating the compressor is running at high speed (use when ambient temperature exceeds 28°C or when unit is loaded with hot product, requiring a quick pull down) .

  • Page 7: Energy Saving Tips

    3. Energy Saving Tips • Run unit in a well-ventilated location, protect from direct sunlight . • Keep lid openings to a minimum . • Don’t leave lid open too long • Try to pre chill product before loading into unit . •...

  • Page 8: App (Selected Models)

    5. APP (selected models) Download Maxi Trac Repco app for your Apple or Android phone . 1 . Press Enter . 2 . Select WiFi or scan 3 . The device will 4 . This is the fridge QR code . connect .

  • Page 9: Trouble Shooting

    5 flashes Led display shows This is a thermistor issue Error codes contact Evakool (07) 54927777 Refers to fault light error 1 Flash: LOW VOLTAGE ERROR Cause: • Battery is flat . Check with multimeter, 12 .70 Volts 100% charge, 12 .05V 50% charge, 10 .50V 0% charge .
  • Page 10 • Stopping and starting too quickly (not giving the system time to equalize) . • Electronic box issue . • Faulty compressor . • Disconnect power for ten minutes, then re-start, if problem persists, contact Evakool . 4 Flash: MINIMUM MOTOR SPEED ERROR Cause: •...

  • Page 11: Technical Data

    747 x 513 x 450 747 x 513 x 450 (WxHxD) in mm Carton Dimensions 795 x 470 x 490 795 x 570 x 490 975 x 540 x 490 (WxHxD) in mm Compressor Evakool CK 25 (see table for technical data)
  • Page 12 Compressor Evakool CK25 Displacement cm 2 .5 Application Rotation RPM 2000 2500 3000 3500 Capacity W Input Power W Operating Current A 3 .7 4 .3 COP W/W 1 .1 1 .14 1 .15 1 .16 Cooling Static or Fan Cooling...

  • Page 13: Dimensions & Parts

    7a Dimensions & Parts MT45...
  • Page 14 MT60...
  • Page 15 MT75...
  • Page 16 MT45 & 60 RC45/65 - 001 Door RC45/65/75D - 006 50A Plug RC45/65/75D - 001 Door Handle RC45/65/75D - 007 Circuit Breaker RC45/65/75D - 002 Cabinet Handle RC45/65/75D - 008 230V Socket RC45/65 - 002 - A RC45 Cabinet RC45/65/75D - 009 Angle Surrounding RC45/65 - 002 - B RC65 Cabinet...
  • Page 17 MT75 RC75D - 001 Door RC45/65/75D - 007 Circuit Breaker RC45/65/75D - 001 Door Handle RC45/65/75D - 008 230V Socket RC75D - 002 Cabinet RC45/65/75D - 009 Angle Surrounding RC45/65/75D - 002 Cabinet Handle RC45/65/75D - 010 Power Switch RC45/65/75D - 004 LED Light RC45/65/75D - 012 Condenser...

  • Page 18: Features

    • LED light . • Nationwide warranty . 9. Warranty The statutory warranty period applies if your unit is defective . Please contact Evakool on (07) 5492 7777 or warranty@evakool . c om for details of your closest Evakool service centre .
  • Page 20 POWERED BY For your nearest stockist contact EvaKool T: 1300 385 665 (1300 EVKOOL) E: warranty@evakool.com or visit us at evakool.com.au...

This manual is also suitable for:

Maxi trac mt-60Maxi trac mt075-dx
