All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of one year from the
date of purchase. Decorative finishes warranted for one year. We will replace at no costs goods that prove defective provided we are
notified in writing of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly
maintained and used in accordance with instructions. Zurn shall not be responsible for any labor charges or any loss, injury or damages
whatsoever, including incidental or consequential damages. The sole and exclusive remedy shall be limited to the replacement of the
defective goods. Before installation and use, the purchaser shall determine the suitability of the product for his intended use and the
purchaser assumes all risk and liability whatever in connection therewith. Where permitted by law, the implied warranty of merchantabi-
lity is expressly excluded. If the products sold hereunder are "consumer products," the implied warranty of merchantability is limited to
a period of one year and shall be limited solely to the replacement of the defective goods. All weights stated in our catalogs and lists are
approximate and are not guaranteed.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
NOTE: The information in this manual is subject to change at any time without notice. Installations may
be performed at different times of construction by different individuals. For this reason, these instructions
should be left on-site with the facility or maintenance manager.
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT.
Z6900-SD-WM / Z6900-FSD-WM
LIMITED WARRANTY
Z6900-SD-WM / Z6900-FSD-WM

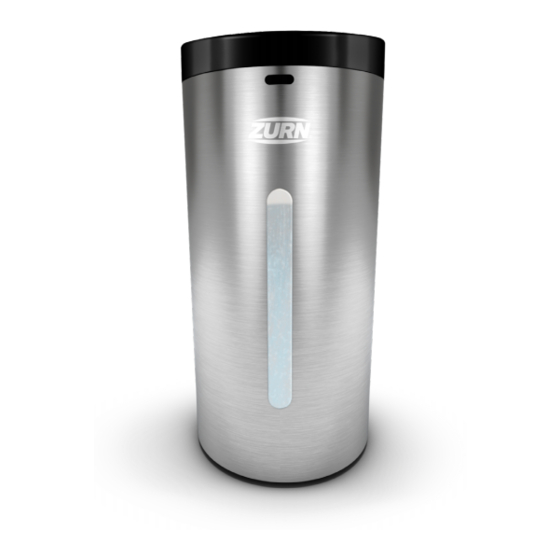

Sensor Operated Battery Powered Liquid or
Foaming Wall Mounted Soap Dispensers
Installation, Operation, Maintenance,
and Parts Manual
Advertisement
Table of Contents
Related Manuals for ZURN Z6900-SD-WM
Summary of Contents for ZURN Z6900-SD-WM
- Page 1 Sanford, NC, with evidence that they have been properly maintained and used in accordance with instructions. Zurn shall not be responsible for any labor charges or any loss, injury or damages whatsoever, including incidental or consequential damages.
- Page 2 This Page Intentionally Left Blank...
- Page 3 Parts List Required Tools Z6900-SD-WM / Z6900-FSD-WM Upper Cover Battery Case Sealing Ring Hand Drill Cover for Can Mounting Plate 1/4” or 6mm Drill Bits Peristaltic Pump Sensor Controller Bottom Phillips Head Screwdriver Outlet Specifications Power supply: DC 9V (6 AA Batteries - Included) Power Consumption: Standby 0.4W;...
- Page 4 Cautions Before Installation To ensure the longevity and correct function of the dispenser, please read the following: Please read the manual before assembly and installation Use 6 new AA alkaline batteries and do not mix old and new batteries Install dispenser on a smooth wall and clean the area before installation Ensure the distance from bottom of dispenser to sink basin or the nearest object below is more then 10 inches (25cm).
- Page 5 Soap Dispenser Installation Instruction 1. Place the mounting plate at the desired location and transfer 2. Drill the three 6mm or 1/4” holes according to the mounting plate the hole locations to the wall and attach the mounting plate to the wall using the plastic anchors and screws.
- Page 6 Note: If using the gel type (Z6900-SD-WM), and the liquid is highly viscous, it is recommended to mix a small amount of fluid with water to thin the solution to properly prime the pump. Once priming has occurred (see step 6), fill reservoir with liquid of choice...
- Page 7 Battery Replacement Instruction The indicator will flash continuously when the battery is Open battery holder and remove the old batteries and depleted replace all old batteries with new ones Change the batteries in time when the indicator flashes Make sure the batteries are installed in the right direction, Select 6 AA Alkaline batteries, do not mix old and new the + and - sides are indicated in the battery holder batteries...
- Page 8 ZURN INDUSTRIES, LLC W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax 919-775-3541 In Canada: ZURN INDUSTRIES LIMITED 7900 Goreway Drive, Unit 10, Brampton, Ontario L6T 5W6, Ph. 905-405-8272, Fax 905-405-1292 ZURN.COM Rev. A Date: 10/22/20 C.N. No. 143132 Prod.
