8480013COM

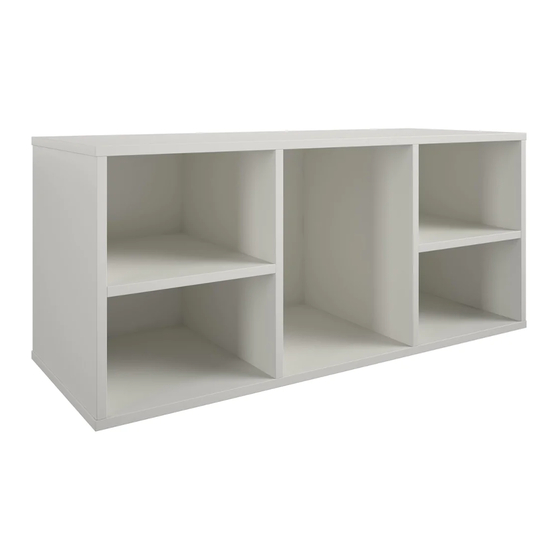

5 CUBE ENTRY STORAGE
Date of Purchase ___ / ___ / ___
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B348480013COM00GO
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Tough
You
Tube
Advertisement
Related Manuals for Ameriwood HOME 8480013COM
Summary of Contents for Ameriwood HOME 8480013COM
- Page 1 Visit: www.ameriwoodhome.com Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home - Unit can tip over causing severe injury or death. - Anchor unit to stud in wall (if instructed to). - Do Not allow children to climb on unit. - Put heavy items on lower shelves or drawers.
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Monday-Friday 9am - 5pm CST Tube Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR - Open your item in the area you plan to keep it to avoid excessive heavy lifting. -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size BOTTOM 8480013 8480013 010GO 020GO QTY: 1 PC QTY: 1 PC LEFT PANEL+ RIGHT PARTITION RIGHT PANEL + LEFT PARTITION 8480013 030GO T8480 040GO QTY: 2 PCS QTY: 2 PCS SHELF BACK PANEL 8480013 8480013 050GO 060GO QTY: 2 PCS... - Page 5 Board Identification Not actual size ameriwoodhome.com Tube...
-
Page 6: Part List
Hardware Bag Reference number: COM0GO 8480013 Part List Actual Size Ø15 x 10mm Ø6 x 25mm Ø8 x 30mm ×24 ×8 ×8 CAM LOCK CAM BOLT WOOD DOWEL TGO2100 TGO2001 TGO2900 Ø4.2 x 45mm Ø3 x 12mm ×8 ×26 SCREW SCREW TGO1301 TGO1008W... - Page 7 STEP ×8 ×24 1.1 Cam bolt (2) into (A) as illustrated 1.2 Insert (3) into (C) x 2, (D) x 2, (E) x 2 as illustrated. D x 2 C x 2 E x 2 ameriwoodhome.com Tube...
- Page 8 STEP 2.1 Insert (E)x2 into (C)x2, (D)x2 as illustrated. FINISHED EDGE FINISHED EDGE FINISHED EDGE FINISHED EDGE FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
- Page 9 STEP Quick Assembly LOCK Proper orientation of CAM LOCK ×8 3.1 Attach (C)x2, (D)x2 into (A) with (1) as illustrated. FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
- Page 10 STEP ×8 4.1 Attach (C) x 2, (D) x 2 into (B) with (4) as illustrated. FINISHED EDGE FINISHED EDGE ameriwoodhome.com Tube...
- Page 11 STEP ×26 5.1 Attach (F) into (A), (B), (C), (D) with (5) as illustrated. ameriwoodhome.com Tube...
- Page 12 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. 35 lbs / 16 kgs 40 lbs / 18 kgs 20 lbs / 9 kgs Warning: Risk of injury to persons - do not place a television on this furniture.
- Page 13 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big "Thank You" to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback. ameriwoodhome.com Tube...
- Page 14 de l'aide. ameriwoodhome.com Tube...
- Page 15 Page 9 ameriwoodhome.com Tube...
- Page 16 Español Cubierta Delantera Este libro de instrucciones contiene información IMPORTANTE de seguridad. Por favor lea y manténgalo para referencia en el futuro. No Regrese este producto! Comuniquese con nuestro amistoso equipo de servicio al cliente para obtener ayuda. Llamenos al: 1-800-489-3351 (Gratis) Lunes - Viernes 9am - 5pm CST Visitar: www.ameriwoodhome.com PRECAUCION Este mueble puede volcarse y causar graves heridas y/o muerte.
- Page 17 Español Página 4, 5 : Identificación de la Junta Página 6: Lista de No es la talla actual Tamaño real PARTE SUPERIOR BLOQUEO DE LEVA FONDO PERNO DE LEVA PANEL IZQUIERDO + PARTICIÓN PASADOR DE MADERA DERECHA TORNILLO PANEL DERECHO + PARTICIÓN TORNILLO IZQUIERDA ESTANTE...
