ADDS 6700 XPe Thin Client
(Service Pack 2)
User's Manual
Boundless Technologies: 50 Engineers Lane Farmingdale, NY 11735
In the US and Canada call: 1-800-231-5445 or 1-631-962-1460
In Europe and the UK call: 44-1785-811668
Website:
www.boundless.com
Sales:
sales@boundless.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADDS 6700 and is the answer not in the manual?

Questions and answers

Related Manuals for Boundless ADDS 6700

Summary of Contents for Boundless ADDS 6700

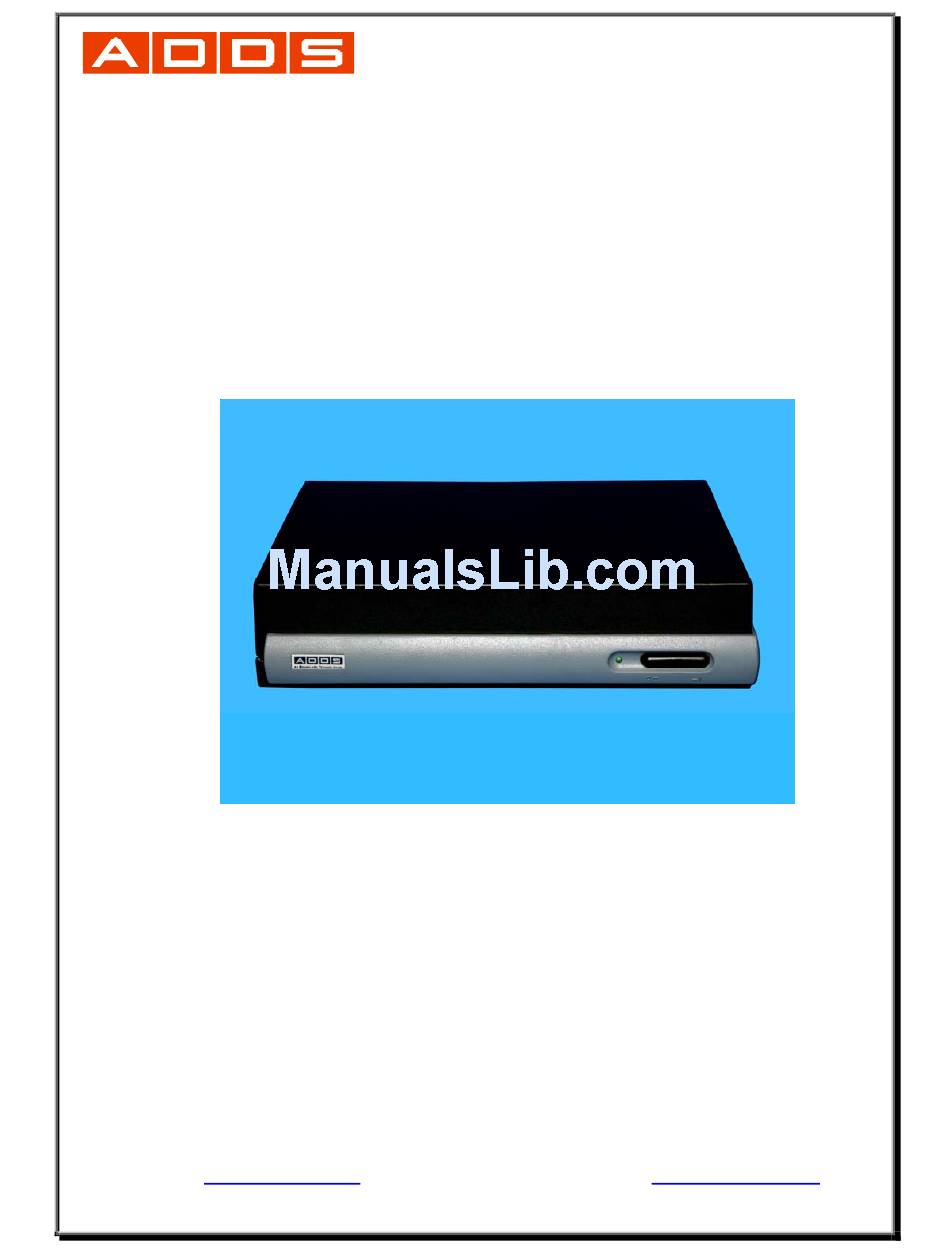

  • Page 1 OUNDLESS ECHNOLOGIES ADDS 6700 XPe Thin Client (Service Pack 2) User’s Manual Boundless Technologies: 50 Engineers Lane Farmingdale, NY 11735 In the US and Canada call: 1-800-231-5445 or 1-631-962-1460 In Europe and the UK call: 44-1785-811668 Website: www.boundless.com Sales: sales@boundless.com...

  • Page 2: Table Of Contents

    Microsoft Media Player 6.4 ...29 Sun Java 1.41and Flash Player 6.0 ...29 CHAPTER 5 Advanced Function ...30 Enhance Write Filter ...30 System Info...30 5.2.1 General ...30 5.2.2 Network Information...30 Device Update Agent...31 RamDisk Driver ...32 Boundless Technologies TABLE OF CONTENTS _____________________________ ADDS 6700 XPe...

  • Page 3: Fcc Statement

    Consult the dealer or an experienced radio/TV technician for help. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according Boundless Technologies CAUTION to the manufacturer’s instructions. _____________________________ ADDS 6700 XPe...

  • Page 4: Chapter 1 License Agreement

    (c)(1)(ii) of the Rights in Technological Data and computer software clause at DFARS 252.227-7013 or in subparagraphs (c)(1) and (2) of the Commercial Computer Software-Restricted Rights at 8 C.F.R. 52-227-19 as applicable. _____________________________ Boundless Technologies ADDS 6700 XPe...
  • Page 5 Software License The SOFTWARE is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties. The SOFTWARE is licensed, not sold. _____________________________ Boundless Technologies ADDS 6700 XPe...
  • Page 6 MANUFACTURER’s support number provided in the documentation for the SYSTEM. Should you have any questions concerning this EULA, or if you desire to contact MANUFACTURER for any other reason, please refer to the address provided in the documentation for the SYSTEM. ________________________________ ADDS 6700 XPe...
  • Page 7 (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 or subparagraphs (c)(1) and (2) of the Commercial Computer Software—Restricted Rights at 48 CFR 52.227- 19, as applicable. MANUFACTURER is Microsoft Corporation/One Microsoft Way/Redmond, WA 98052-6399 ________________________________ ADDS 6700 XPe...

  • Page 8: Product Overview

    Microsoft Windows 2003 Server Family. Microsoft Windows XP with RDP protocol ICA： Citrix Winframe Microsoft Windows NT4.0 + TSE+ Citrix Metaframe Microsoft Windows 2000 + Citrix Metaframe. Microsoft Windows 2000/ Windows 2003 + Citrix MetaframeXP Boundless Technologies ___________________________ ADDS 6700 XPe...

  • Page 9: Terminal Features

    Connect the 10/100-T network cable to the RJ-45 network connector. Connect the power cord and the adapter to the power connector with DC adapter. Connect the power cord to the power connector with DC adapter. Boundless Technologies _________________________ ADDS 6700 XPE...

  • Page 10: Connector Descriptions

    Power LED Power Switch Connector Descriptions 2.4.2 Power Switch The Power Switch turns the WBT ON/OFF Power LED Illuminated when power is ON _________________________ Boundless Technologies ADDS 6700 XPE...
  • Page 11 This connector is for a mouse using a PS/2 plug (mini DIN) Power Connector This connector is for connecting the power cord with the terminal and the AC outlet. Boundless Technologies PARALLEL 2nd SERIAL SERIAL DVI CON _________________________ LINE IN Mouse Power SPEAKER Keyboard ADDS 6700 XPE...

  • Page 12: Chapter 3 Control Panel

    It describes all the information of the terminal function about this WBT. You can also click Switch to Classic View to see another display mode. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 13: Display Configuration

    Click “Advanced” and you will see the figure as below by clicking “S3Display” sheet. And you will find the two display devices “CRT” and “DVI”. If you don’t connect to LCD panel with DVI cable, the check box with DVI is grayed. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 14: Keyboard Properties

    If you have connected to LCD panel with DVI cable, the check box with DVI will be available. As below, you can enable or disable DVI function by clicking the check box. 3.2 Keyboard Properties The Keyboard properties sheet lets you configure your terminal's keyboard. The following figure shows the properties sheet. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 15: Mouse Properties

    Click Mouse Properties if you want to configure your mouse setting to Right-Handed or Left-Handed, and the Pointer Speed. You can also set other functions by clicking properties sheet, such as Pointers, Pointer Options, Wheel. 3.4 Date and Time Properties User can set up your local time for this device. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 16: Regional And Language Options

    Customize to choose your own formats. 3.5.2 Languages Setting Set up the keyboard locale for the local device. If you want to view or change the languages, click Details. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 17: User Accounts

    Note：When logging on that used “Administrator account” (password:9999), you will see the screen above. General user logon, you just can see the screen below. And user can only change password himself, can’t add new account. Boundless Technologies _________________________ ADDS 6700 XPE...

  • Page 18: Sounds, Speech, And Audio Devices

    A sound scheme is a set of sounds applied to events in Windows and programs. You can select an existing scheme or save one you have modified. Test it before you save the settings. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 19: Network And Internet Connections

    Use the IP information supplied by DHCP. You can click Start Control Panel Network and Internet Connection Network Connection and select the picture that called “Local Area Connection”. You will see the figure as follow. Select the Properties then you will see the “Internet Protocol (TCP/IP)” option. As follow _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 20: Specify A Static Ip Address

    Required for identifying this unit to the network. The format will follow the standard addressing format. Subnet Mask Required for designating which network the IP address is a part of. Gateway Optional address which identifies the machine through which a subnet communicates with another network. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 21: Local Printer Setup

    Select the port you want your printer to use. If the port is not listed, you can create a new port. Most computers use the LPT1 port. Click Next and install your printer driver. Boundless Technologies _________________________ ADDS 6700 XPE...
  • Page 22 Note：The function of Add Local printer just for “Administrator account” (password:9999). General user can only select network printer. Select a network printer If you don’t know the name or address of the printer, you can search for a printer that meets your needs. Browse for a printer _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 23: Chapter 4 Connections Management

    Display：You can choose the size of your remote desktop and set the color quality. If you click Display the connection bar when in full screen mode, the connection bar will be showed on the Windows desktop in full screen mode. _________________________ Boundless Technologies ADDS 6700 XPE...
  • Page 24 Programs：If you want to start a program while connection, you can click Start the following program on connection . You can also specify path and file name when you specify a program. Experience：You can choose your connection speed to optimize performance _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 25: Ica Connection

    Type the correct User name and Password to logon. You will see the screen below if connection success. 4.2 ICA Connection 4.2.1 Add a new ICA connection Click the shortcut “Citrix Program Neighborhood“ on the desktop. Click “Add ICA Connection” _________________________ Boundless Technologies ADDS 6700 XPE...
  • Page 26 Published applications are specific applications set up by an administrator for remote users to run. When connected, you are presented with the application itself. You will see the screen below if connection success. Boundless Technologies _________________________ ADDS 6700 XPE...

  • Page 27: Wireless Lan Settings

    Type the correct User name and Password to logon. You will see the screen below if connection success. 4.3 Wireless LAN Settings 1. Plug in wireless card and double click the figure as below. _________________________ Boundless Technologies ADDS 6700 XPE...
  • Page 28 2. Select the available wireless networks and click Advanced. For example, we select the “TK-ZONE”. To connect to an available network, click Configure. 4. After click OK, you will find the available network (TK-ZONE) in the Preferred networks. _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 29: Microsoft Internet Explorer Connection

    4.4 Microsoft Internet Explorer Connection Click Start Click Internet Explorer and you can connect to internet. Boundless Technologies Network and Internet Connections Network If your network settings have been correctly set up _________________________ ADDS 6700 XPE...

  • Page 30: Adobe Acrobat 5.0

    4.7 Sun Java 1.41 and Flash Player 6.0 Windows XP Embedded supports Java and Flash player. For example, we connect to a website to test these functions. After few minutes, you should see the screen below. Java _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 31: Chapter 5 Advanced Function

    You can delete or add flies, even add a new hardware. But these works will be ineffective after reboot WBT. Enhance Write Filter 5.2 System Info 5.2.1 General This Component describes product information, such as Copyrights, Product Name, Product ID, Software _________________________ Boundless Technologies ADDS 6700 XPE...

  • Page 32: Network Information

    : Run once immediately when started. Monday ~ Sunday It describes what days of the week do you want to update. 01~24 It describes what hours of the day do you want to update. Boundless Technologies _________________________ ADDS 6700 XPE...

  • Page 33: Ramdisk Driver

    MB for WBT. You also can delete or add files in RamDisk, but these data will be lost after reboot. You will see the RamDisk by clicking My Computer. Note：The data in the RamDisk will lost after WBT reboot. _________________________ Boundless Technologies ADDS 6700 XPE...
