This information complements the
BABYZOOMER Assembly Video Playlist
(4 videos) available at:
BABYZOOMER Assembly Videos

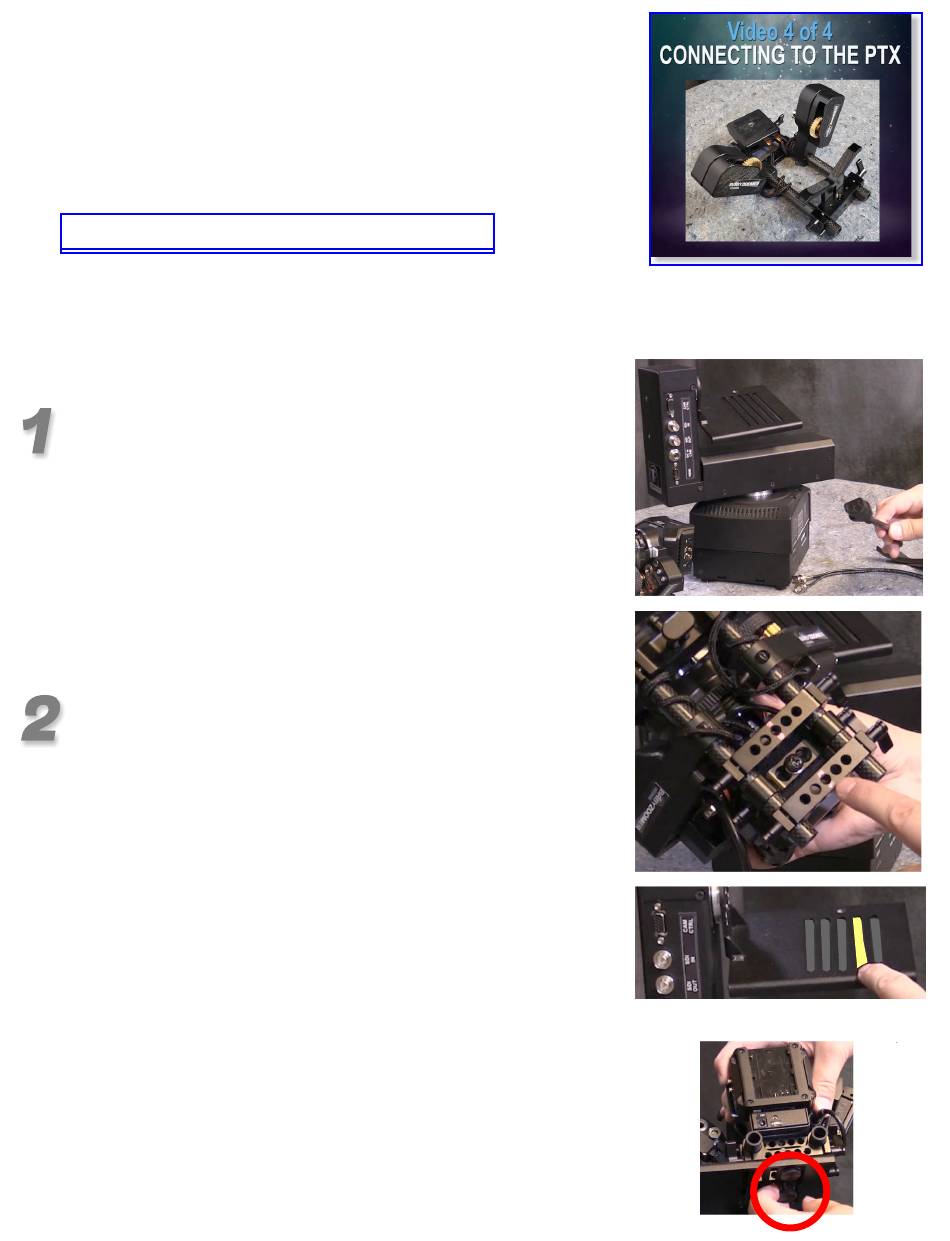

CONNECTING THE BABYZOOMER KIT TO THE PTX

Be sure that the power to the PTX is unplugged
before placing the BABYZOOMER assembly
on the PTX head.
The completed BABYZOOMER assembly has two
¼" threaded holes on the bottom of the brackets
with the RED stripes.
Align those with the slots on the PTX camera platform
using the next to last slot ...
and use the TWO included thumbscrews to attach the
BABYZOOMER to the camera platform of the PTX.
bottom view
next to last slot( 4th from left)
1 2 3 4 5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BABYZOOMER and is the answer not in the manual?

Questions and answers

Summary of Contents for Rushworks BABYZOOMER

  • Page 1 Align those with the slots on the PTX camera platform 1 2 3 4 5 using the next to last slot … next to last slot( 4th from left) and use the TWO included thumbscrews to attach the BABYZOOMER to the camera platform of the PTX.
  • Page 2 Make sure that the overall assembly is balanced by tilting it forward and backward, and adjust the screws as necessary. After the cabling has been attached, you may further refine the balance of the assembly. LANC Locate the PTX LANC cable with an HD15 connection on one end…...
  • Page 3 Take the two LANC plugs from the PTX LANC cable and plug one into the back of the BABYZOOMER Motor Control Box … and the other into the LANC socket on the Blackmagic camera cable. The BABYZOOMER DC power splitter cable has two DC plugs and one socket.
  • Page 4 The locking DC plug connects to the DC to CAM port on the PTX. Insert it fully and tighten the locking ring to secure the connection. Insert the non-locking plug into the socket on the BABYZOOMER DC splitter cable. Use one of the supplied MiniDIN1.0/2.3 to BNC...
  • Page 5 Re-tighten the thumbscrews … then connect the power cord again. Once the unit successfully initializes you should be optimally balanced for normal operation. You should be ready to connect your controller (VISCA or DMX) and begin operating the PTX and BABYZOOMER kit!
