TWO-STAGE REGULATOR REPAIR KIT INSTRUCTIONS
Important: Any maintenance, service or repair
should be performed by trained and experi-
enced service technicians. Proper tools and
equipment should be used to prevent injury to
the servicing technician, property or system
components. Service repairs should always be
performed in a safe environment and the tech-
nician should always wear protective clothing
to prevent injury.
The IMPCO PPI-16 repair kit instructions will
provide the technician information to success-
fully repair the Model L regulator. Always in-
spect the major casting pieces for damage,
corrosion or cracks before attempting a service
repair. Be sure the repair kit part number you
are using is correct for the regulator being ser-
viced. Diaphragms are color coded and have
different performance characteristics:
BLACK: Hydrin diaphragm material is the
standard material and is well suited for the
most common applications.
YELLOW: Silicone diaphragm material is the
optional upgrade material that provides excel-
lent flexibility in cold weather climates and is
more resistant to chemical contamination.
Part #
RK-L
RK-L-2 Repair Kit Model L, w/Silicone Diaphragm
July, 2015
MODEL L
REPAIR KIT PART NUMBERS
Description
Repair Kit Model L, Hydrin Diaphragm
IMPCO Technologies Inc.
3030 South Susan St.
Santa Ana, CA 92704
www.impcotechnologies.com

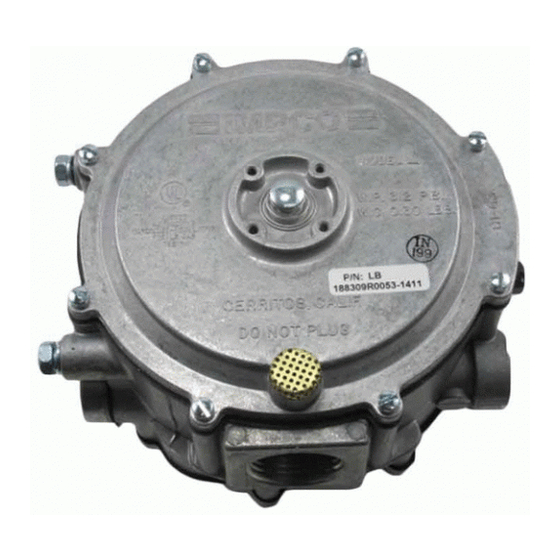

Model L Two Stage Converter
Do not use Teflon tape to seal any fuel fittings.
Failure to follow this warning may cause the
regulator to leak internally, possibly resulting in
serious injury and/or property damage and may
void any warranty coverage.
3030 S Susan Street, Santa Ana, CA 92704
Ph: +1 714 656 1200 Fax: +1 714 656 1400
PPI-16 REV. D
Page 1 of 14

Advertisement

loading
Need help?

Need help?

Do you have a question about the L and is the answer not in the manual?

Questions and answers

Summary of Contents for Impco L

  • Page 1 The IMPCO PPI-16 repair kit instructions will provide the technician information to success- fully repair the Model L regulator. Always in- spect the major casting pieces for damage, corrosion or cracks before attempting a service repair. Be sure the repair kit part number you are using is correct for the regulator being ser- viced.
  • Page 2 3030 S Susan Street, Santa Ana, CA 92704 Ph: +1 714 656 1200 Fax: +1 714 656 1400 MODEL L SERIES CONVERTERS ITEM# PART# DESCRIPTION S7-1 NSS Screen, atmospheric vent S1-59* NSS Screw, 8-32 x 5/8" SEMS (8) AC1-63 NSS...
  • Page 3 3030 S Susan Street, Santa Ana, CA 92704 Ph: +1 714 656 1200 Fax: +1 714 656 1400 REBUILD INSTRUCTIONS 1. Model L Repair Kit (RK-L) contains all nec- essary parts to replace components subject to deterioration (see page 2 for repair kit components).
  • Page 4 8. Remove secondary lever and seat as- sembly (6 & 7) and secondary regulator spring (9). Retain pin and spring; discard lever and seat. PPI-16 REV. D IMPCO Technologies Inc. July, 2015 3030 South Susan St. Page 4 of 14 Santa Ana, CA 92704...
  • Page 5 12. Turn over and loosen fuel inlet bushing (27) using a tube wrench or six sided socket. July, 2015 IMPCO Technologies Inc. PPI-16 REV. D 3030 South Susan St. Page 5 of 14 Santa Ana, CA 92704 www.impcotechnologies.com...
  • Page 6 15. Remove primary valve seat (24) and support (25) and discard. 16. Loosen and remove nine screws (23) in vaporizing chamber cover (22). PPI-16 REV. D IMPCO Technologies Inc. July, 2015 3030 South Susan St. Page 6 of 14 Santa Ana, CA 92704...
  • Page 7 July, 2015 IMPCO Technologies Inc. PPI-16 REV. D 3030 South Susan St. Page 7 of 14 Santa Ana, CA 92704...
  • Page 8 24. Reassemble cover (22) and gasket (21) to heat exchanger body (14). Check to assure gasket is not folded under cover at any point. PPI-16 REV. D IMPCO Technologies Inc. July, 2015 3030 South Susan St. Page 8 of 14 Santa Ana, CA 92704...
  • Page 9: Teflon Tape

    (26). ® Note: Apply Loctite 567 or equivalent to ensure a gas tight seal. DO NOT USE TEFLON TAPE. July, 2015 IMPCO Technologies Inc. PPI-16 REV. D 3030 South Susan St. Page 9 of 14 Santa Ana, CA 92704 www.impcotechnologies.com...
  • Page 10 32. Place two primary regulator springs (12) upon locating perches extruded from back-up plate on primary diaphragm as- sembly (13). PPI-16 REV. D IMPCO Technologies Inc. July, 2015 3030 South Susan St. Page 10 of 14 Santa Ana, CA 92704...
  • Page 11 25-35 in-lbs. (1.8-4.0 Nm). July, 2015 IMPCO Technologies Inc. PPI-16 REV. D 3030 South Susan St. Page 11 of 14 Santa Ana, CA 92704...
  • Page 12 (6 & 7) spring perch on primary cover. Make sure springs snaps into place ahead of detent in lever. 38. Use IMPCO G2-2 gauge or a straight edge to check lever height. When using a straight edge, the lever should be 5/32”...
  • Page 13 Note: Use only brass or plastic fittings in the water inlet and outlet passages. A steel fitting will cause the casting to dete- riorate due to electrolysis. July, 2015 IMPCO Technologies Inc. PPI-16 REV. D 3030 South Susan St. Page 13 of 14 Santa Ana, CA 92704...
  • Page 14 COMBUSTION ENGINES AND GAS TURBINE ENGINES, TO THE EXTENT THESE STANDARDS ARE NOT IN VIOLATION WITH FEDERAL, STATE OR LOCAL LAW. FAILURE TO ABIDE BY THE ABOVE WILL VOID ANY IMPCO WARRANTY ON THE PRODUCTS AND MAY CAUSE SERIOUS INJURY OR PROPERTY DAMAGE.
