Summary of Contents for NVX NMPS20
- Page 1 NMPS20 | Square Style Media Center MODE LOUD BAND MONO Before connecting and operating this unit, please read the manual carefully and keep it for future reference. Note: Specifications and design are subject to change without notice for future improvement.
-
Page 2: Fcc Statement

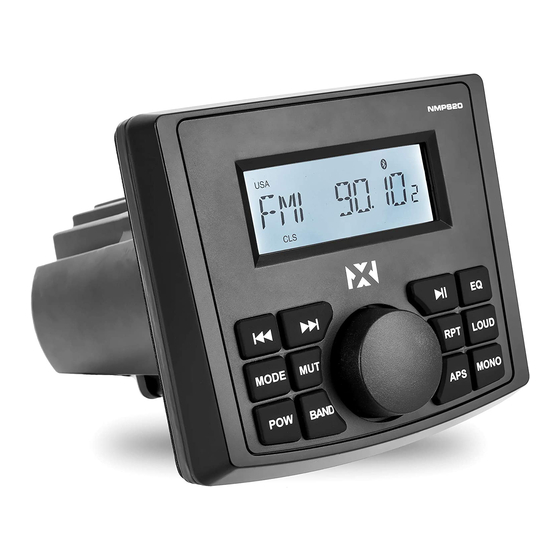

THANK YOU FOR CHOOSING NVX Thank you for choosing the NVX NMPS20 media center for your boat or UTV. Whether you are an established audio guru or replacing your stereo for the first time, this media center is going to change your entire audio experience on your vehicle. - Page 3 SECIFICATIONS MODEL NMPS20 Power Output 25W x 4 @ 4 Ohms RMS Frequency Response 20 Hz - 20 kHz Signal to Noise Ratio 95dB Input Sensitivity 500mV Display Type Digital LED Backlit LCD Display Waterproof Rating IP66 Front, Rear, and Sub - Preamp Output...
-
Page 4: Operation
9. EQ 10. LOUD MODE LOUD 11. MONO BAND MONO 8. Repeat 12. MUTE OPERATION FUNCTION BUTTON Power On Press Power Button (7) Once Power Off Hold Power Button (7) for Two Seconds Volume Up Rotate the Volume Knob (4) Clockwise Volume Down Rotate the Volume Knob (4) Counterclockwise Seek Next Station... -
Page 5: Usb/Mp3 Operation
Press the MODE button to switch to “BT PLAY” Make sure Bluetooth is turned on, on your device Search for the device called “[NMPS20]” and select it (the connection should then be automatic) Once the unit has made a connection with your device for the first time, it will then automatically connect to your device every time after whenever you are in the proper range of the media center. - Page 6 GREEN SUB OUTPUT BLACK REAR WIRED REMOTE 0.8 in 4.9 in 4.5 in 1.2 in WARNING! Before installing this unit onto any panel, ALWAYS ensure that there is sufficient clearance behind the panel and that no wiring harnesses, fuel lines, or any other critical components are exposed or damaged by the installation.
-
Page 7: Install Instructions
Be sure to carefully read and understand the instructions before attempting to install the unit: 1. Attach threaded bolts to the back of the NMPS20 2. Position the mounting bracket over the bolts 3. Place washers over bolts and securely attach nuts 4. -
Page 8: Troubleshooting
TROUBLE SHOOTING ISSUE CAUSE SOLUTION Headunit is not 1. Improper wiring 1. Check to make sure receiving power 2. Fuse is Blown all wiring is correct 2. Check your fuse to see if it might be blown Low or no volume 1. - Page 9 CONSUMER LIMITED WARRANTY INFORMATION NVX offers a limited warranty on this product with the following terms: MOBILE ELECTRONICS LIMITED WARRANTY When purchased from an Authorized NVX Dealer, NVX warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEAR from date of original purchase.
-
Page 10: What Is Not Covered
COD, will be refused. Failure to follow these steps may void your warranty. Any questions can be directed via email to cs@nvx.com or via mail at the address listed above. WHAT IS NOT COVERED? -
Page 11: International Warranty
Delays may be incurred if lack of replacement inventory or parts is encountered. INTERNATIONAL WARRANTY Contact your International NVX dealer or distributor concerning specific procedures for your country’s warranty policies. California Proposition 65 Warning WARNING: This product contains chemicals, including lead or lead compounds, that are known to the State of California to cause cancer, and birth defects or other reproductive harm.
