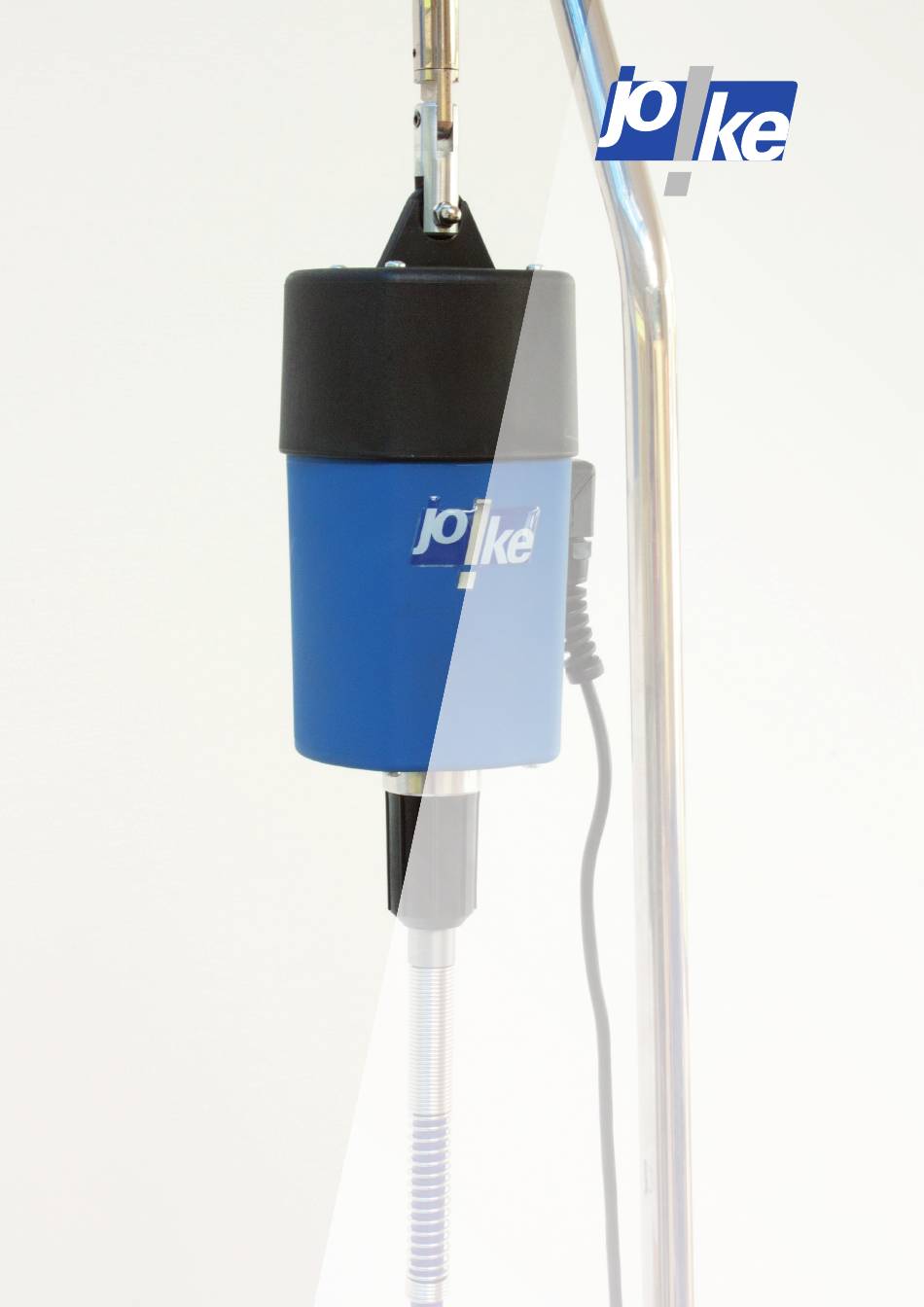

- Page 1 Oberflächentechnik Oberflächentechnik Surface Technology Surface Technology Instruction Manual jokeFlex Premium Plus Motor System Order no.: 0 016 850 and 0 016 850R...
-
Page 2: Table Of Contents
Please feel free to call our customer service department at any time should you encounter technical problems which are not dealt with in this manual: Telephone +49 (0) 22 04 / 8 39 - 0 Telefax +49 (0) 22 04 / 8 39 - 60 Internet www.joke.de... -
Page 3: Safety Instructions
The device should only be used with tools for grinding, milling, and polishing listed and ap- proved in the joke catalogue. Any other use will be deemed to be contrary to its intended purpose. The manufacturer cannot be held liable for any resulting damages. The risk is borne solely by the user. -
Page 4: Warranty/Identification
Surface Technology Warranty / Identification joke warrant the correct manufacture of every joke Technology GmbH product which is delivered in accordance with the terms of contract and delivery. This warranty does not cover damages caused by normal wear and tear, incorrect handling, negligent use, the fitting of non-original spare parts, inadequate care and/or a failure to comply with this technical manual. -
Page 5: Device Overview
Mode of operation The jokeFlex Premium Plus motor system is electrically powered. The rotary movement is transferred to the joke handpieces or hand-filing machines via the highly flexible shaft with ball bearings connected to the motor system. The flexible shaft is connected to the handpiece/hand filing machine by a quick-release spring clip or the Rapid-Change-System. - Page 6 Oberflächentechnik Surface Technology The unit is switched on and off using the foot control, simultaneously allowing continuous adjustment of speed. The maximum speed can be limited by the potentiometer. The potentiometer adjustment range is 8,000 – 22,000 rpm. The marking on the external potentiometer serves as a guide. Figure 5.3 Section of foot control Figure 5.2 Foot control Setting for hang-filing machines, speed up to 8,000 rpm...
-
Page 7: Technical Data
16 A Cyclic duration factor 100 % Degree of protection totally insulated housing IP 20 Performance data for jokeFlex Premium Plus motor Speed range max. 22,000 rpm Dimensions (H x W x D) 240 x 105 x 95 mm Weight... -
Page 8: Operation/Use
Oberflächentechnik Surface Technology Operation / Use Installing and connecting the device Suspend motor system in a suitable sus- pension device: We recommend the height-adjustable suspen- sion devices for bench top mounting. The motor system can also be operated horizontally for individual applications. Figure 7.1 Rapid-Change-System Connecting the Quick-Change-System to the motor system:... - Page 9 The flexible shaft may warm up slightly when running in the jokeFlex motor system. This does not affect the functionality. The jokeFlex Premium Plus motor system is fully ready for use after running in. If you have any questions or encounter problems with our tools please feel free to call our ser-...
- Page 10 Figure 7.5 Rapid-Change System The following flexible shafts are available for the Quick Change motor system: Motor jokeFlex Premium Plus Length Order no.: Flexible shaft Premium Plus with spring clip 1.1 m...
-
Page 11: Troubleshooting
Oberflächentechnik Surface Technology Speed setting for different applications In order to avoid damage as a result of possibly excessively high speed settings, the maximum rpm can be limited by the potentiometer on the foot control. The scale has three graduations (refer to Figure 7.5): •... - Page 12 Oberflächentechnik Surface Technology Servicing the motor system The motor bearings require no maintenance. The deep groove ball bearings are sealed and have a lifetime lubrication. Check the carbon brushes for wear every 4 weeks to avoid damage to the armature. If the carbon brushes have worn down to around 5 mm they should be replaced.
