Supatool S130114 Instruction Manual

S130114 AUTOMATIC HOSE REEL

1. INTRODUCTION

This reel i s made of high-qual ity mat erial s and, driven and rel eased by t he
recoil sprin g, which can rewin d the hose automaticall y. Also there i s a lock
device between left cover and reel, whi ch can control the hose length,
when the hose be pulled out or rewound. The l ength of hose ranges from
0-9m, can be 180
swivel bracket and Dyn a bolts al lows for convenient inst allatio n in various

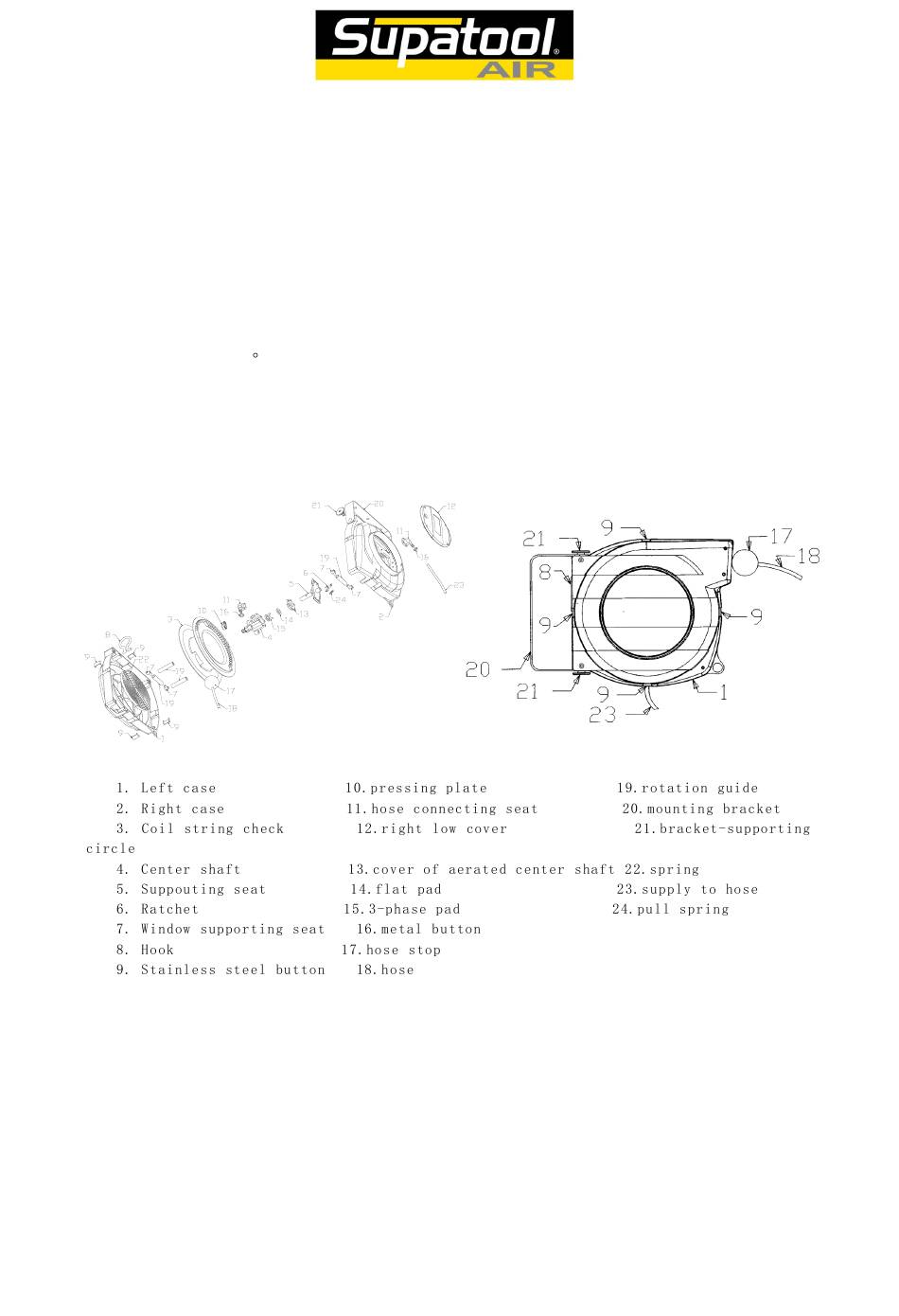

positions. (Fig.1, explosion picture of the unit; Fig.2, obverse picture of
the unit).
Fig.1

2. INSTALLATION

1. This reel is suitable for installing near source of ai r. For a large area, it
is suggested to place it in the center work area to maximi se your
space. .
2. Attach the inl et hose to the so urce of ai r.
3. The mounting bracket can be inst alled to a brick wall. There are many
alternativ e po sitions in which t he uni t can be placed. (eg. Wood studs,
Metal pol es et)
1) The most appropriate position is to mount it on a wall or post
INSTRUCTION MANUAL
swiv eled, enl arge the r ange of usage. The supplied st eel

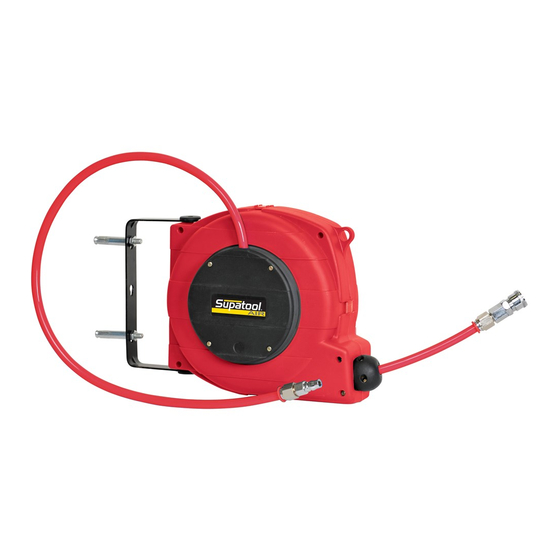

Fig.2
