POWER INTERNATIONAL ENTERPRISE LIMITED
User Manual
For On / Off Hybrid Solar Storage System
YP5KWH UNIT (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh)
YP7KWH UNIT (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh)
YP10KWH UNIT (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh)
YP15KWH UNIT ( 51.8V 300AH – 15Kwh )
YP20KWH UNIT ( 51.2V 400AH – 20Kwh )
Advertisement
Table of Contents
Summary of Contents for Power YP PW-5KW

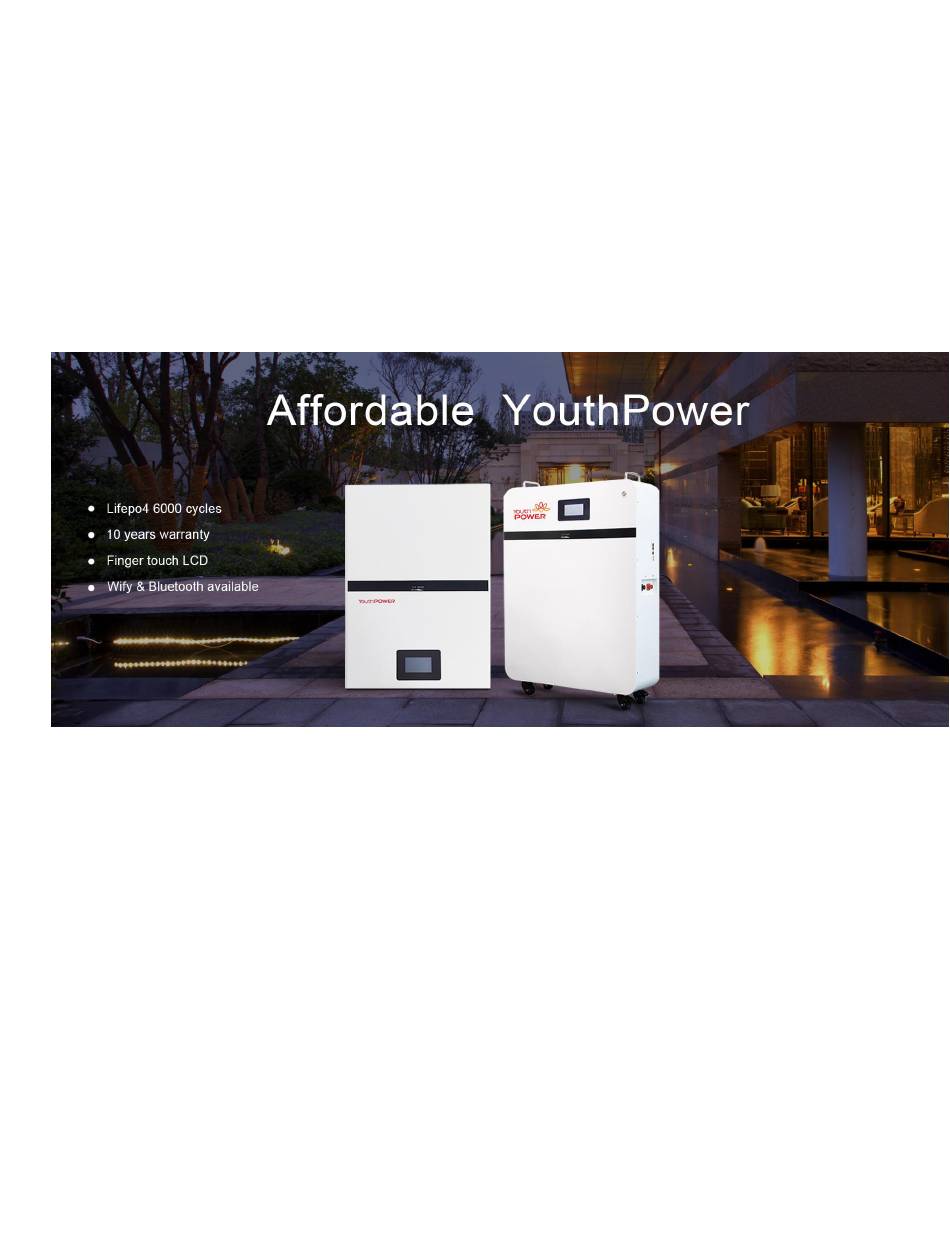

- Page 1 POWER INTERNATIONAL ENTERPRISE LIMITED User Manual For On / Off Hybrid Solar Storage System YP5KWH UNIT (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh) YP7KWH UNIT (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh) YP10KWH UNIT (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh) YP15KWH UNIT ( 51.8V 300AH – 15Kwh )
-
Page 2: Table Of Contents
6. Product Warranty ................................- 23 - 6.1....................................- 23 - 6.2....................................- 23 - 6.3....................................- 23 - 6.4. Factory Warranty Scope ............................- 23 - 6.5. Warranty conditions ............................... - 23 - - 1 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 3: Safety Precautions
⚫After unpacking, please check the battery and packing list first, if the battery is damaged or spare parts are missing, please contact the dealer. ⚫Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off mode;... -
Page 4: Battery Specifications
2.Battery Specifications Battery Specifications Model No YP PW-5KW YP PW-7KW YP PW-10KW Nominal Parameters Voltage 48 V 48 V 48 V Capacity 100Ah 150Ah 200Ah Energy 4.8 KwH 7.2 KwH 9.6 KwH 740*530*200mm 740*530*200mm 740*530*200mm Dimensions (L x W x H) Weight 58.5kg... - Page 5 51.2 Vdc 51.2 Vdc Max. charging voltage 58 Vdc 58 Vdc 58 Vdc Cut-off Discharge Voltage 46 Vdc 46 V dc 46 Vdc Max. charging and discharging 100A(5120W) 120A(5760W) 120A(5760W) current PHOTO - 4 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 6 48 Vdc 51.2 Vdc 51.2 Vdc Max. charging voltage 54 Vdc 58 Vdc 58 Vdc Cut-off Discharge Voltage 40 Vdc 46 V dc 46 Vdc Max. charging and discharging 200A 200A current PHOTO - 5 - www.youth-power.net version 3.0 : 2021/7/29...
-
Page 7: Introduction To The Battery
⚫No. ⚫Description ⚫Silk-screen ⚫Remark ⚫P+ P+ ⚫Output terminal ⚫1 ⚫UES0600 ⚫P- P- ⚫Output terminal ⚫2 ⚫UES0600 ⚫port Reset button ⚫For reset the batter ⚫3 ⚫RST ⚫Dial switch ⚫Set the address ⚫4 ⚫ADS - 6 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 8: Soc Indicator & Status Indicator Guides
Switch to Over Charge Charge standby when there is no Protection charging Temperature, Stop charging Current, Failure protection Normal Flash Based on capacity Warning Flash Flash Discharge Over discharge Stop protection discharging - 7 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 9: Connectors
⚫Battery off: When battery is activated, press this button for 3 seconds. It will be shut down when the LED lights flicker from lowest capacity indicator to RUN light. ⚫ Different LCD version can be applied as per request --- Normal press LCD or finger touch LCD. - 8 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 10: Display Function Instruction
ENTER key can enter the corresponding page. 3) Press ESC key can be returned at the next higher level directory；In any position， press - 9 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 11: Safe Handling Guide
4.1.System Diagram 4.2.Tools The following tools are required to install the battery pack: ⚫Wire cutter ⚫Crimping Modular Plier ⚫Screw Driver NOTE ⚫Use properly insulated tools to prevent accidental electric shock or short circuits. - 10 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 12: Safety Gear
Thoroughly inspect the packaging upon receipt of goods. If there is any item missing or if there is any damage to the external packaging or to the unit itself upon unpacking, please contact us immediately. - 11 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 13: Installation Location
Observe the minimum clearances to walls, other batteries or objects as shown in the diagram and picture below in order to guarantee sufficient heat dissipation Direction Minimum clearance (mm) Above Below Sides Front - 12 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 14: Installing The Battery Pack
Falling equipment can cause serious or even fatal injury: never mount the inverter on the bracket unless you are sure that the mounting frame is firmly mounted on the wall after thorough checking. - 13 - www.youth-power.net version 3.0 : 2021/7/29... -
Page 15: Parallel Use Of Battery
5.4.1.Parallel use of battery ( All off grid solar inverters ) YOUTH POWER wall battery is a smart battery to match all off grid solar inverter ( 48VDC) types. When the battery needs to be used in parallel, the maximum connection is 15 units, but we recommend 2-4 units according to application. - Page 16 5.4.2. Connection Diagram and ADS guide Line If you start to connect hybrid inverter, make sure you should consult with YOUTH POWER sales manager before connection. - 15 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 17 RS485 Version –Max 15 pcs One pc connect diagram - 16 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 18 - 17 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 19 - 18 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 20 - 19 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 21 YouthPower sales manager before connection. If the hybrid inverter is not from Youthpower factory brand, please specify related hybrid on-off grid inverter brand with YouthPower sales managers. How to dial for master and slave battery units for 15-20KWH YouthPower Battery - 20 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 22 5.4.4 How to set YouthPower Lifepo4 Battery Using as Lead Acid Type Inverters - 21 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 23 Combiner Box and Connection Let’s take 4 batteries for example, use an additional junction box (not included in the standard pack) to combine the power flow of both batteries: （ Combiner Box Photo ） Connect J1 with inverter’s negative pole Connect J2 with inverter’s positive pole...
-
Page 24: Product Warranty
--In view of the value that the device would have without the defect --Taking in account of the significance of the defect, and --After consideration of alternative work around possibilities at factory customers could revert to without significant inconvenience. - 23 - www.youth-power.net version 3.0 : 2021/7/29... - Page 25 Project installation location: Product Information Battery Model: Serial No : ) – Close to the battery BMS Import for service Invoice Number : Purchase Date : Dealer : Commission date : Fault/Error Description: - 24 - www.youth-power.net version 3.0 : 2021/7/29...
- Page 26 POWER INTERNATIONAL ENTERPRISE LIMITED 24 Hrs On-line: 0086 18185770301 Inquiry Email : sales@youth-power.net After Sale Service : info@youthpowergy.com Website: www.youth-power.net - 25 - www.youth-power.net version 3.0 : 2021/7/29...
