Summary of Contents for Vayyar V60G-HOME-I

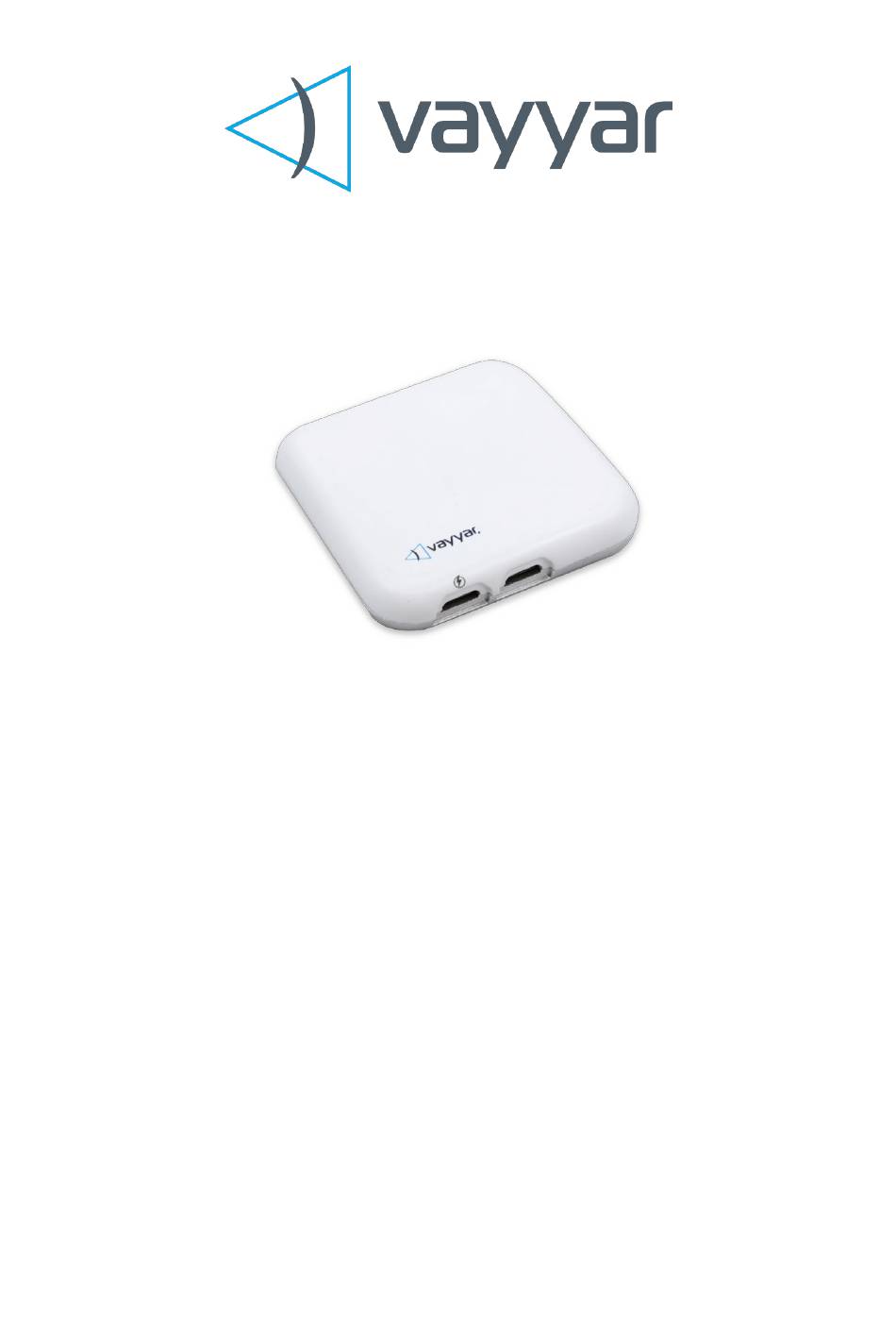

- Page 1 V60G-HOME-I Module User Manual Revision 1.0.5...
- Page 2 Vayyar or in any case of third party materials, without that third party's consent.
-
Page 3: Table Of Contents
V60G-HOME-I User Guide Table of Contents CHAPTER 1 INTRODUCTION ..................... 6 Release Information Note ....................... 6 Glossary ........................... 7 CHAPTER 2 SYSTEM OVERVIEW ....................8 System Architecture ........................ 8 Hardware ..........................10 2.2.1 Sensor Unit Specification ....................11 2.2.2 Digital Interface ......................12 2.2.3... - Page 4 User Guide List of Figures Figure 1: V60G-HOME-I “EVK” System Architecture................8 Figure 2: V60G-HOME-I “Embedded” System Architecture ..............9 Figure 3: High-Level Block Diagram – USB-based system ..............10 Figure 4: vStraw_CTPB4 Connectivity ....................12 Figure 5: vBLU_OK _CTPB4 connector ....................13 Figure 6: Antenna Positions and Numbering ..................
- Page 5 V60G-HOME-I User Guide List of Tables Table 1: Glossary ............................. 7 Table 2: Sensor Unit Specification ......................11 Table 3: Sensor Unit Electrical Specification ..................14 Table 4: Antenna and RF Characteristics ....................14 Vayyar Confidential Page 5 of 19...
-
Page 6: Chapter 1 Introduction
(MIMO), used as a fixed field disturbance sensor or a short-range device for interactive motion sensing. Models pertaining to the V60G-HOME-I family are intended to be integrated with an additional host, either a PC-host operating the device through a USB interface, or a microcontroller-unit (MCU) for integrated and embedded products. -
Page 7: Glossary
V60G-HOME-I User Guide Glossary Table 1: Glossary Term Definition Alternating Current Application Programming Interface Direct Current Dynamic Link Library Evaluation Kit Graphical User Interface Internet Protocol. An IP address is a numerical identifier assigned to a computing device or node in a TCP/IP network. The address is used to locate and identify the node in communications with other nodes on the network. -
Page 8: Chapter 2 System Overview
The V60G-HOME-I RF Sensor module. The EVK Engine. Host software that performs signal processing functions. The software runs in a command window in a PC, which is connected to the V60G-HOME-I Sensor via a USB cable. Vayyar Confidential Page 8 of 19... -
Page 9: Figure 2: V60G-Home-I "Embedded" System Architecture
Host Controller / [Application] Vayyar sensor module LAN \ WLAN \ Cellular Central processing unit \ server \ cloud Figure 2: V60G-HOME-I “Embedded” System Architecture Examples of used controllers may include EPS32, Raspberry-Pi CPU, etc. Vayyar Confidential Page 9 of 19... -
Page 10: Hardware
Figure 3: High-Level Block Diagram – USB-based system An SPI-based module is similar, excluding the USB-related components. The following components are embedded in the sensor unit PCB: Vayyar VYYR7201-B4 system-on-chip (SoC). 46 embedded Tx/Rx linear polarized PCB embedded, wide-band antennas. ... -
Page 11: Sensor Unit Specification
V60G-HOME-I User Guide 2.2.1 Sensor Unit Specification Table 2: Sensor Unit Specification Parameter Specification Notes Transceivers 24 Tx, 22 Rx Frequency Band Within 59 - 64 GHz Configured by software. 61-61.5GHz Field of View (FoV) Refer to section 2.2.5 Antenna and RF... -
Page 12: Digital Interface
User Guide 2.2.2 Digital Interface The V60G-HOME-I models use either USB 2.0 or SPI as digital-interface, connecting the host module to the sensor module. The USB interface is implemented on the module using an MCU and a micro-USB connector. The SPI interface is connected directly to the VYYR-7201-B4 chip, through a board-mounted multi-pin connector. -
Page 13: Rf Interface - Antennas
All 46 antennas are from the same antenna type, which is linear polarized PCB embedded, wide- band antennas. 2.2.4 Electrical Specifications The following electrical specifications are for the sensor unit. The current consumption specifications are based on lab measurements performed by Vayyar. Vayyar Confidential Page 13 of 19... -
Page 14: Antenna And Rf Characteristics
Configurable (typically lower to meet FCC requirements) The figure below depicts an antenna and its E and H planes: E-plane – plane XZ (green) H-plane – plane YZ (red) Figure 7: V60G-HOME-I Antenna Pattern Vayyar Confidential Page 14 of 19... -
Page 15: Software
User Guide Software The V60G-HOME-I system software performs signal processing and generation of the arena image, either on a host-device, or on an embedded DSP processor. The software generates a 3D image and a point-cloud corresponding to the detected objects in the arena, and may extract further details through more advanced algorithms (for example –... -
Page 16: Chapter 3 Regulatory Section
The device is certified under FCC part 15 section 15.255, as - FCC-ID : 2AHIS-V60G-HOME-I. This V60G-HOME-I device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 17 V60G-HOME-I User Guide 3.1.2 Industry Canada ICES-003 Compliance: CAN ICES-3 (B)/NMB-3(B) IC Caution: RSS-Gen Issue 4 December 2014”&”CNR-Gen 4e Décembre 2014: - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 18: Instructions For The Integrator
3.2.2 End Product Labeling Visible area with the following: “Contains FCC ID: 2AHIS-V60G-HOME-I” and “Contains IC ID: 21498- V60GHOMEI” (either in user-manual, on the package or the product case). When the hosting device uses an electric-display in a product, it should be possible to display electronically the FCC-ID. -
Page 19: Rf Exposure Guidance
V60G-HOME-I User Guide 3.2.4 RF Exposure Guidance In order to comply with FCC / ISED RF Exposure requirements, this device must be installed to provide at least 20 cm separation from the human body at all times. “Afin de se conformer aux exigences d'exposition RF FCC / ISED, cet appareil doit être installé pour fournir au moins 20 cm de séparation du corps humain en tout temps.“...
