- Page 1 D&K Expression 42 Pouch Laminator Instruction Manual...
- Page 2 EXP 42” Pouch Laminator Owner’s Manual MADE IN U.S.A.
-
Page 3: Table Of Contents
Table of Contents About the Manual....................................2 Introduction.......................................3 Safety Precautions....................................4 Understanding Your Laminator..............................5 Unpacking, Setup and Installation ............................5 Control Panel......................................6 Nip Adjusters ......................................7 Mounting Using a SuperStick® Pouch Mounting System..................8 Mounting Using a Superstick® Mounting Board .......................9 Mounting and Laminating Using a SuperStick® Pouch Board .................10 Encapsulating with a SuperStick®... -
Page 4: About The Manual
About this Manual: READ ME FIRST! This manual contains all the information you need to properly unpack, operate and maintain your Laminator. Before unpacking your laminator we suggest you read and follow the manual step by step. It contains essential information about each and every facet of your laminator. Pay special attention to the work environment and safety precautions necessary for your laminating unit. -
Page 5: Introduction
Introduction Thank you for purchasing a EXP 42” Pouch laminator. We have designed the EXP 42” Pouch to give you years of reliable service. As you become familiar with the EXP 42” Pouch, you will appreciate the high quality of its production and the excellence in its engineering design. By following the guidelines outlined in this manual for proper care and use of the EXP 42”... -
Page 6: Safety Precautions
Safety Precautions WARNING: Please review the following safety precautions before unpacking your new laminator. When using electrical appliances, basic precautions should always be taken to reduce the risk of electrical shock and injury to persons, including the following: Read all instructions before connecting or operating this unit. Retain this Owners Manual for future reference. -
Page 7: Understanding Your Laminator

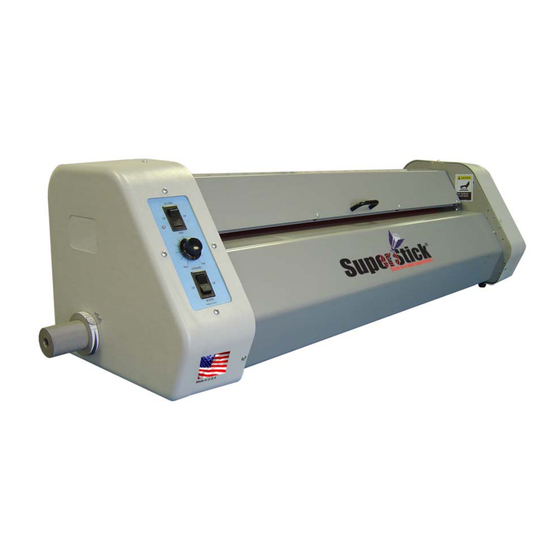

Understanding Your Laminator The EXP 42” Pouch Laminator is a professional laminator designed for ease of use. The process temperature has been preset to eliminate operator guesswork. The factory settings will facilitate good quality results using SuperStick® brand Flexible Pouches and Pouch boards. The EXP 42” Pouch can handle Flexible Pouches and Pouch boards up to 42 inches wide and ½”... -
Page 8: Control Panel
Control Panel LED Design The LED light indicates the status of heat on or off and whether the machine is at the appropriate temperature. Please see below for the definitions of the LED status lights. Switch Design The switch controls whether heat is on or off and the direction the rolls turn. Please see below for detailed instructions. -
Page 9: Nip Adjusters
Nip Adjusters The Nip Adjusters are Located on the left hand side of the laminator and is operated from the front of the machine. The Nip Adjusters are used to adjust the height of the rollers. To Operate the Nip Adjusters: Grasp it with your left hand and pull out approximately 1/4”... -
Page 10: Mounting Using A Superstick® Pouch Mounting System
Mounting using SuperStick Pouch Mounting System Step One Insert your print into the SuperStick Mounting & Laminating Pouch. Step Two Place the SuperStick Pouch on the surface of virtually any rigid substrate or foam board – NO ADHESIVE NECESSARY! Step Three Pass the SuperStick pouch and board combination through the SuperStick heated roll laminator. -
Page 11: Mounting Using A Superstick® Mounting Board
Mounting using a Superstick® Mounting Board: 1. Refer to the instruction sheet packed with each box of SuperStick® Mounting Boards for specific instructions on mounting with a SuperStick® board. 2. Also, refer to the instruction sheet for information on Compatible Media, Process Conditions, and Technical information. -
Page 12: Mounting And Laminating Using A Superstick® Pouch Board
Mounting and Laminating using a SuperStick® pouch board: 1. Refer to the instruction sheet packed with each box of SuperStick® pouch boards for specific instructions on mounting/laminating with a SuperStick® board. 2. Also, refer to the instruction sheet for information on Compatible Media, Process Conditions, and Technical Information. -
Page 13: Encapsulating With A Superstick® Flexible Pouch Or Release Board
Encapsulating with a SuperStick® Flexible Pouch using a SuperStick® Sled or release board: 1. Refer to the instruction sheet packed with each box of SuperStick® Flexible pouches for specific instructions on encapsulating. 2. Also, refer to the instruction sheet for information on Compatible Media, Process Conditions, and Technical Information. -
Page 14: Cleaning Your Exp 42" Pouch Laminator
Cleaning Your EXP 42” Pouch Laminator The laminator may be cleaned with a lint free cloth, lightly dampened with a mild soap and water solution. Do not use spray-on cleaners. Do not immerse any part of the laminator in water or other liquid. Cleaning the rollers with Poly-Off Cleaners &... -
Page 15: Terms & Conditions
Terms & Conditions Dealer, warrants to the original consumer purchaser that each new SuperStick 62” Plus Laminator which proves defective in materials or workmanship within the applicable warranty period will be repaired or, at our option, replaced without charge upon its return as outlined below. The applicable warranty shall be one year from date of purchase with 12 months parts, 6 months labor and 3 months limited warranty on the rollers. -
Page 16: Parts List
Parts List for the EXP 42” Pouch Laminator Part Number Description line 1 Description line 2 Qty Req'd. A4510 10-32 X 1" SOCKET CAP SHOULDER SCREW A5511 2002DIGITAL DRIVE SWITCH-BEZEL BSH0290 Brass Washer TT504 1/4"ID x 1/2"OD x 1/16" 0.00001 ELC0870 KNOB - POT EXP287... - Page 17 707601 UPPER FEED GUARD EXP42POUCH 707606 LOWER FEED GUARD EXP42POUCH 707608 SWITCH MOUNT PLATE EXP42POUCH 707638 LEFT SIDE COVER EXP42PRO POUCH EXP42 POUCH LEFT COVER 707639 RIGHT SIDE COVER EXP42 POUCH EXP42 POUCH COVER RIGHT SIDE 707691 LOWER CONNECTOR, FRONT 3" ROLL EXP42 PRO PLUS FRONT LOWER 707692 UPPER CONNECTOR FRONT 42 PLUS...
- Page 18 920163 LED ASSY EXP42POUCH 920164 WIRE ASS'Y,WITH 6.8 K RESISTOR...
