Klein Tools Coax Explorer VDV512-057 Instruction Manual

ENglIsH
Coax Explorer Tester
®
Instruction Manual

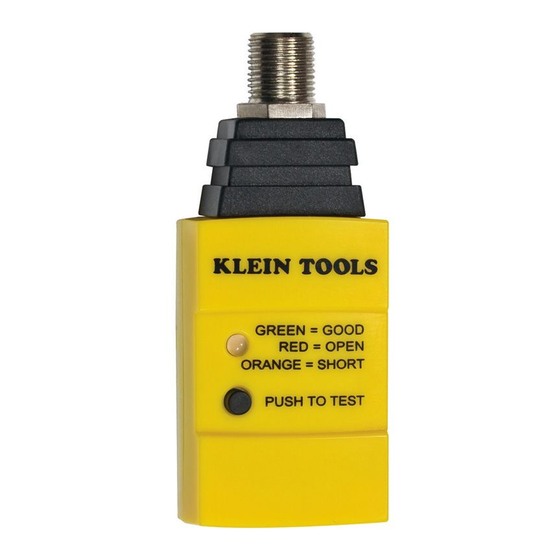

DEscrIptIoN

The Klein Tools Coax Explorer verifi es proper continuity of
®
F-connector terminated cables. The separate test terminator
allows for cable runs between two different locations to be
tested. The tester displays cable status as shorted, open, or
good using a LED.
• Green for good.
• Red for open.
• Orange for shorted.
Note: The tester has no replaceable parts and is permanently
sealed. The tester should be disposed of properly when
the battery is depleted.

tEstINg a cablE

1. connect test remote to one end of the cable. Use a coupler
(not included) if required to connect the test remote to an
F-plug.
2. connect coax Explorer to the other end of the cable.
®
3. press the button below the LED. The LED illuminates
showing the test result. Results are displayed while
button is held down.

gENEral spEcIFIcatIoNs

• Dimensions: 2.7" x 1.1" x 0.7" (6.9 x 2.7 x 1.8 cm)
1.3 oz. (37 grams) with battery and remote
• Weight:
• operating temperature: 0°C– 50°C / 32°F –122°F
• -20°C – 60°C / -4°F – 140°F
storage temperature:
• Humidity: 10% to 90%, non-condensing
• altitude: 10,000 feet (3,000 meters) maximum
• battery life: Lithium primary cell, typical
• 5 years
standby:
• active: 2.5 hours, intermittent use
(approximately 900 tests of 10 seconds each)

DIsposal / rEcyclE

Do not place equipment and its accessories in the trash.
Items must be properly disposed of in accordance with
local regulations
.
Probador Coax Explorer
®
Testador Coax Explorer
®
Testeur Coax Explorer
®
• Tests coaxial cable.
VDV512-057
• Compact size ts easily into pocket
or pouch.
• Bright LED feedback indicates
cable status (good/open/short).
• Simple push-button operation.
• Prueba cable coaxial.
• Su tamaño compacto encaja
fácilmente en el bolsillo o la
bolsa porta herramientas.
• El LED brillante indica el estado del
cable (en buen estado/abierto/en corto).
• Funcionamiento sencillo con botón pulsador.
• Testa o cabo coaxial.
Compact, push button tool • Tamanho compacto se encaixa facilmente em seu
quickly tests coaxial cable bolso ou bolsa.
• Resposta de LED brilhante indica o status do cabo
Test and verify coaxial
(bom/aberto/curto).
cable connections
• Operação de botão de pressão simples.
Herramienta compacta con
• Teste le câble coaxial.
botón pulsador que prueba
• Grâce à sa taille compacte, il tient facilement dans
rápidamente cable coaxial
une poche ou une pochette.
Prueba y verifica
• Le témoin DEL brillant indique l'état du câble
conexiones de
(en bon état / ouvert / court-circuit).
cable coaxial
• Fonctionnement simple à l'aide d'un bouton-poussoir.
Ferramenta compacta
de botão de pressão testa
o cabo coaxial rapidamente
Teste e verifique
as conexões de
cabo coaxial
O testador deve ser descartado adequadamente quando a bateria estiver sem carga.
L'outil compact à bouton-poussoir
Le produit contient une pile au lithium non remplaçable.
permet de tester rapidement
Lorsque la pile est épuisée, il faut mettre le testeur au rebut de manière adéquate.
le câble coaxial
Permet de
tester et
vérifier les
connexions
d'un câble
coaxial
Warranty / Garantía / Garantia / Garantie :
www.kleintools.com/warranty
Test Equipment Depot - 800.517.8431 -
99 Washington Street Melrose, MA 02176
Product contains a lithium cell non-replaceable battery.
Tester should be disposed of properly when battery is depleted.
