Summary of Contents for Barton FR 50 ccm
- Page 1 User Manual...

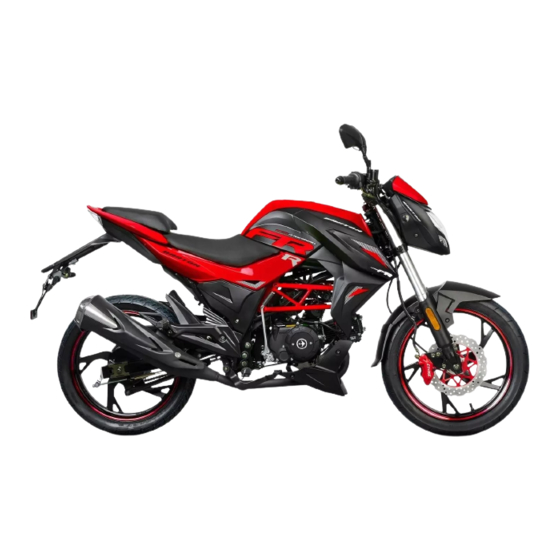

- Page 3 OWNERS MANUAL FOR BARTON BARTON FR MOPED...
- Page 5 INTRODUCTION We are pleased to welcome you among the buyers of Barton Motors' two-wheeled vehicles. Thank you for purchasing our vehicle and at the same time we are convinced that you have made the right choice. Have a nice ride! This manual contains advices on maintenance and handling as well as advice necessary for safe driving.
-
Page 7: Table Of Contents
TABLE OF CONTENTS Road Safety Vehicle construction ………………………………………….………………………………………………...…………..…….2 Operation and function of vehicle components 1. Ignition 2. Switch assembly on the left side of the steering wheel 3. Switch assembly on the right side of the steering wheel 4. Meter 5. -
Page 8: Road Safety
ROAD SAFETY ● Obey all traffic signs and regulations.. ● Adjust your speed to the road conditions. ● Check the technical condition of your vehicle regularly. ● Wear weather-appropriate moped clothing that gives you good visibility on the road ● Learning to drive should take place in facilities that allow you to obtain a Driving Licence;... -
Page 9: Vehicle Construction
VEHICLE CONSTRUCTION Rys. 1... - Page 10 VEHICLE CONSTRUCTION Figure 1. 1. Rear indicators 2. Seat 3. Fuel tank with filling unit 4. Meter 5. Front indicators 6. Headlamp 7. Foot lever for rear brake...
-
Page 11: Operation And Function Of Vehicle Components
OPERATION AND FUNCTION OF VEHICLE COMPONENTS 1. Ignition Turning the key turns the ignition on and off. Warning: do not use the key while driving! Advice: when the engine is not running, turn the key to the OFF position - this prevents depletion or damage to the battery. -
Page 12: Switch Assembly On The Left Side Of The Steering Wheel
● Turn the key from LOCK to OFF position 2. Switch assembly on the left side of the steering wheel Direction indicator switch The switch is used to turn on the directional lights when turning left or right. ● To turn on the left turn signal, push the switch to the left ●... -
Page 13: Switch Assembly On The Right Side Of The Steering Wheel
3. Switch assembly on the right side of the steering wheel Electric starter button To start the engine, press the brake lever and press the starter button - the engine will start. Advice: be careful not to run the starter for too long - this can damage the battery 4. -
Page 14: Brakes
5. Brakes Right lever – front brake Left lever – rear brake The pull path of the brake is 10-20 mm. The vehicle usually has a front brake and a rear drum brake. Adjustment can be made by turning the brake cable adjustment screw clockwise. -
Page 15: Brake Fluids
● abrasion of the brake pads or the distance between the normal position of the front brake and the handlebar grip is 10-20 mm 6. Brake fluid The vehicle was filled with special brake fluid from the factory. The scooter user should fill or replace the fluid with the recommended fluid (DOT4). -
Page 16: Fuse
It's connected to the battery. When the light and entire circuit fails, check the fuse first. The fuse can only be replaced by a new fuse. 9. Battery Battery for Barton FR model: 12N7-4A Caution: ● when the voltage is less than 11. 5 V, use the foot starter... -
Page 17: Fuel Tank
● set the switch indicator to "OFF" before replacing the battery ● electrode identification: "+" red, "-" green ● change the battery every 4 years ● dispose of the used battery at a battery disposal facility ● To ensure optimal battery performance over a long period of time, it is advisable to remove the battery and recharge it regularly when it is not in use for more than 14 days 10. - Page 18 11. Changing and cleaning the air filter Air filter replacement ● the air filter shall be situated on the left side of the vehicle ● loosen the screws and remove the cover ● remove the air filter cartridge ● clean the cartridge with a cleaning agent or, if this is not possible, replace the filter with a new one ●...
- Page 19 ● after the filter has been dried and soaked in fresh filter oil, insert the filter into the housing by fitting it carefully ● If the core is damaged, it must be replaced. Refer to the periodic inspection table for information on cleaning and replacement intervals...
-
Page 20: Pre-Trip Inspection
PRE-TRIP INSPECTION Always inspect your vehicle for any defects or problems before driving. In the event of any irregularities, the vehicle should be taken to a Barton Motors Authorized Service Center for inspection and repair. Check: ● Steering wheel: check that it functions smoothly and that all parts are present ●... -
Page 21: Driving Technique
DRIVING TECHNIQUE Starting the engine Make sure there is enough fuel and oil in the vehicle before starting the engine. Starting the engine with an electric starter ● Turn the key to position and check that the low beam and turn signals are working. - Page 22 Starting the engine with a foot starter Place your foot on the foot starter and press down dynamically. Take your foot off the pedal after starting the engine.
- Page 23 Starting to drive ● After starting the engine while it is still idling (loose), do not rapidly add gas to avoid overloading the engine. ● When going up a larger hill or with a load on the vehicle, the engine needs more power, so shift to a lower gear before the bike loses power.
- Page 24 When you want to overtake another vehicle you can shift to a higher gear and accelerate. The table shows the range of speeds you can achieve in each gear. Speed at which gear may be reduced 4th gear to 3rd gear less than 35 km/h 3th gear to 2nd gear less than 25 km/h...
- Page 25 Braking ● Turn the accelerator handle to its initial position and depress the front and rear brake levers ● You brake correctly when you apply the brake levers progressively ● For the most effective braking, use both brakes simultaneously. ● Use pulse braking when descending a hill.
-
Page 26: Running-In
RUNNING-IN Proper use of the vehicle extends its life. During the first 1000 km, the speed should be kept below 50 km/h. Adjust the speed according to the table below. Mileage in km 0 – 300 300 - 500 500 - 700 700 - 1000 Speed in km/h 25 –... -
Page 27: Periodic Inspection
PERIODIC INSPECTION Maintenance The maintenance schedule indicates how often the vehicle should be serviced and which components require special attention. For safe, reliable and trouble-free operation, it is very important that the vehicle is maintained on schedule. Maintenance schedule The following schedule contains the maintenance points required to keep the vehicle running in good condition under normal conditions. -
Page 28: Periodic Checks Schedule
PERIODIC CHECKS SCHEDULE FOR MOPED 50 CCM Distance (in kilometers) Name 1500 3000 4500 6000 8000 10000 Engine oil Gear oil Fuel lines Valve clearance Engine idle speed Drive chain Check chain tension regularly and adjust if necessary Front and rear suspension Steering mounting screws Spark Air filter... -
Page 29: Methods Of Environmental Protection And Fuel Economy
METHODS OF ENVIRONMENTAL PROTECTION AND FUEL ECONOMY In order to maintain the proper functioning of your vehicle, to reduce the release of harmful substances into the environment and to achieve the most economical driving possible, it is important that your vehicle is properly maintained.. Clean or replace the air filter The air filter is used to filter out debris entering the cylinder. - Page 30 Reasons for improper carburetor operation can be: ● The fuel level in the carburetor is too high. It should be adjusted accordingly. ● The vents are positioned incorrectly. They need to be adjusted. ● The carburetor is very old. It needs to be replaced. Clean, adjust and replace spark plugs Remove dirt from the spark plug and adjust the clearance.
- Page 31 When changing the engine oil, the level must not exceed the upper value: if the oil level is too high, the oil pressure increases, which can cause engine leakage and increased oil consumption. Perform engine repairs and vehicle inspections An old and worn out engine causes fuel waste and high engine oil consumption. Engine overhaul must not be delayed.
-
Page 32: Technical Vehicle Data
TECHNICAL VEHICLE DATA Name Data Name Data Measurements(mm) 2055x760x1155 Wheelbase (mm) 1360 Weight netto (kg) Engine model FT139FMB Engine single-cylinder, 4T Engine capacity 48 ccm Speed max. (km/h) SAE 10W40 Permissible payload(kg) Spark C7HSA Brakes (front/rear) Disc / drum Starter electric/foot Fuel tank (litres) Fuel...
