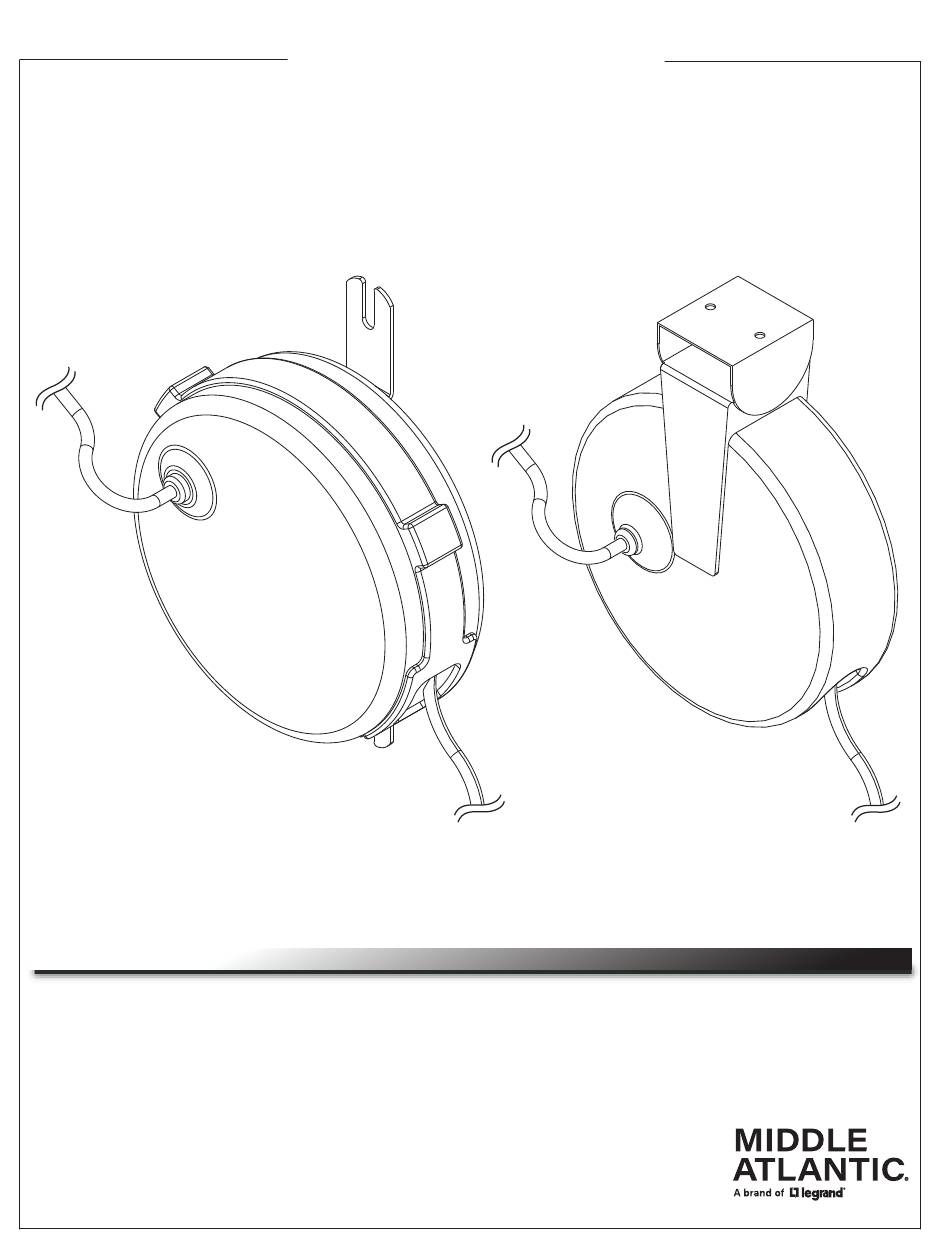

Instruction Sheet FlexView Series Conferencing Cart Cat 6 (FVS-800-CAT6-20F) and Power (FVS-800-RET15F) Cable Retractor Options Cat 6 Power Cable Retractor Cable Retractor THANK YOU Thank you for purchasing a FlexView Conferencing Cart Cat 6 (FVS-800-CAT6-20F) and/or Power (FVS-800-RET15F) Cable Retractor option. Please read these instructions thoroughly before installing or assembling this product.
WARNING: A warning alerts you to a situation that could result in serious personal injury or death. WARNING: Middle Atlantic Products, electrical systems conform to and should be properly grounded in compliance with require- ments of the current National Electrical Code or codes administered by local authorities. All electrical products may present a possible shock or fire hazard if improperly installed or used.
SUPPLIED COMPONENTS AND HARDWARE (CONTINUED) Top, Middle, and Bottom Audio/Video Interface (2x) (6x) ⅜” Plates (2x) (2x) 10-32 x Thread Cutting 4-40 (AVIP) Large Grommet Small Grommet Hex Head Screw Washer Nut Lever Lock (2x) Adapter 10-32 x ½” Screw (2x) Bracket 2”...
Page 4
PREPARING YOUR CART FOR CAT-6 RETRACTOR INSTALLATION 1. Open the rear door on your FlexView Conferencing Cart. 2. Temporarily remove any devices, cables, and cable Lever Lock management from the inside of your cart. Bracket 3. Remove any Lever Lock™ plates and/or channels from inside your cart.
Page 5
ATTACHING CAT-6 RETRACTOR TO THREADED INSERTS ON BACK OF LOWER PANEL • Use a power driver, #2 Philips bit, and (2x) 10-32 x ½” screws (D) to attach the Cat 6 retractor (E) to the threaded inserts on the back of the lower panel Back of of your cart as shown.
Page 6
THREADING THE CAT-6 CABLE AND INSTALLING AVIP PLATES (CONTINUED) 2. Slide the cable stopper down and through the knockout openings so it sits on the span of Cat 6 cable outside of your cart. (FIGURE F) Cable Stopper FIGURE F 3.
Page 7
PREPARING YOUR CART FOR POWER RETRACTOR INSTALLATION 1. Open the rear door on your FlexView Conferencing Cart. Lever Lock 2. Temporarily remove any devices, cables, and cable Bracket management from the inside of your cart. 3. Remove any Lever Lock™ plates and/or channels from inside your cart.
Page 8
ATTACHING POWER RETRACTOR TO LEVER LOCK CHANNEL 1. Use power driver, #2 Philips bit, (2x) 10-32 x ½” screws (P), and (2x) 10-32 nylon locking nuts (R, not visible in figure) to attach the power retractor bracket (S) to the 5th and 7th channel slots on the Lever Lock channel (N) as shown.
Page 9
INSTALLING THE POWER ROLLER BRACKET (CONTINUED) 3. Place the roller bracket (T) onto the studs. 4. Use power driver, ⅜” socket, and flange nuts to reinstall the brush over the roller bracket (T) and onto the studs as shown. (FIGURE N) Brush Studs Flange...
