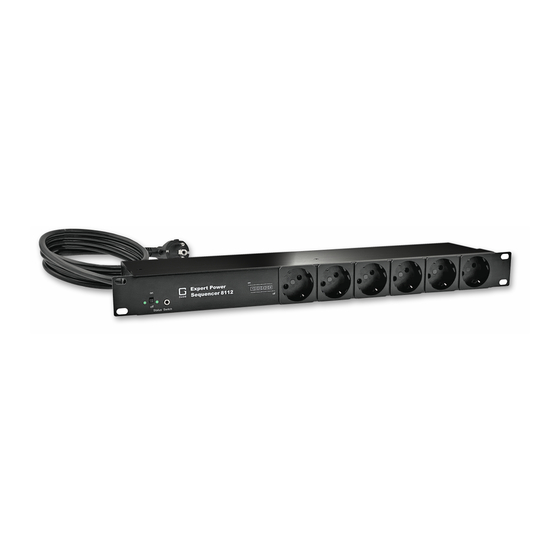

Summary of Contents for GÜDE Expert Power Sequencer 8112 Series
- Page 1 Manual Expert Power Sequencer 8112 Series © 2021 GUDE Systems GmbH Manual Ver. 1.1.0...
-
Page 3: Table Of Contents
Table of contents Device Description Security Advice ......................5 Content of Delivery ......................5 Description ........................5 Installation ........................6 1.4.1 Jack Plug Accessory ....................7 block diagram ......................... 7 Technical Specifications ....................8 Operating Operating the device ....................11 Configuration ....................... - Page 4 Device Description...
-
Page 5: Device Description Security Advice
Device Description Device Description Security Advice · The device must be installed only by qualified personnel according to the following in- stallation and operating instructions. · The manufacturer does not accept responsibility in case of improper use of the device and particularly any use of equipment that may cause personal injury or material dam- age. -
Page 6: Installation
Device Description · Sequential switching on and off of connected loads with a delay of 3s between adja- cent outputs · The time interval can be set individually for each load output · Current peaks during simultaneous switching operations and tripping of upstream fuses are prevented ·... -
Page 7: Jack Plug Accessory
Device Description 6 x Load outputs to consumer ( EPS 8112-3 8112-4, CEE 7/3 type F, max. 16 Start-up the device · Connect the load input to the mains supply. · Connect the load outputs with the consumer. 1.4.1 Jack Plug Accessory The Expert Power Sequencer 8112 can optionally be remote controlled by an external switch with cable. -
Page 8: Technical Specifications
Device Description Technical Specifications Interfaces EPS 8112-1 EPS 8112-2 1 x fixed Mains supply (CEE 7/7 safety plug type E+F, max.16 A, 230 V, cable length 2m) 6 x Load outputs (IEC C13, max. 10 A) 1 x jack socket (3.5 mm, 3-pole) for external switch EPS 8112-3 EPS 8112-4 1 x fixed Mains supply (CEE 7/7 safety plug type E+F,... - Page 9 Device Description combination wave U 6 kV nominal load current 16 A voltage protection level U (L-N) < 1,3 kV voltage prot. level U (L-PE, N-PE) < 1,5 kV response time t (L-N) < 25 ns response time t (L / N-PE) <...
-
Page 10: Operating
Operating... -
Page 11: Operating The Device
Operating Operating Operating the device In the initial position the front switch (1) is in position "off" and all load outputs are switched off. The status LED (2) lights up red. If the switch is set to "on", the 6 load out- puts are switched on one after the other at intervals of approx. -
Page 12: Configuration
Operating onment with many high-energy overvoltage pulses, aging of the overvoltage protection element can cause a permanent failure of the function. The surge protection function can only be restored by the manufacturer of the device. Normally, the device will continue to operate even after the failure of the protect- ive function. - Page 13 Operating e) After the desired time switch to "Off" (for N seconds - N x flashing). f) The EPS 8112 is in the switched off status (outside programming mode). The minimum waiting time when switching on is 2 sec. and the maximum time is 60 sec, even if a different time has been configured.
-
Page 14: Support
Support... -
Page 15: Contact
Support Support If you have further questions about installation or operation of the unit, please contact our support team. Furthermore, we present in our support wiki at www.gude.info/wiki FAQs and configuration examples. Contact GUDE Systems GmbH Von-der-Wettern-Straße 23 51149 Cologne Germany Phone: +49-221-912 90 97... - Page 16 Expert Pow er Sequencer 8112 © 2021 GUDE Systems GmbH 1/20/2021 Expert Power Sequencer 8112 © 2021 GUDE Systems GmbH...
