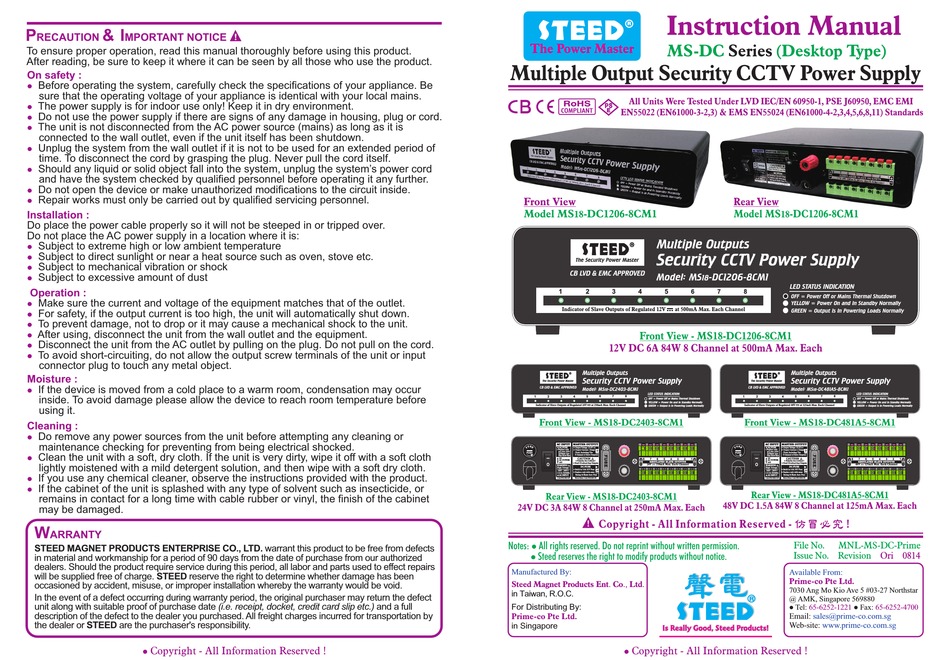

STEED MS-DC Series Instruction Manual

P & I
RECAUTION MPORTANT NOTICE
To ensure proper operation, read this manual thoroughly before using this product.
After reading, be sure to keep it where it can be seen by all those who use the product.
On safety :
Before operating the system, carefully check the specifications of your appliance. Be
l
sure that the operating voltage of your appliance is identical with your local mains.
The power supply is for indoor use only! Keep it in dry environment.
l
Do not use the power supply if there are signs of any damage in housing, plug or cord.
l
The unit is not disconnected from the AC power source (mains) as long as it is
l
connected to the wall outlet, even if the unit itself has been shutdown.
Unplug the system from the wall outlet if it is not to be used for an extended period of
l
time. To disconnect the cord by grasping the plug. Never pull the cord itself.
Should any liquid or solid object fall into the system, unplug the system's power cord
l
and have the system checked by qualified personnel before operating it any further.
Do not open the device or make unauthorized modifications to the circuit inside.
l
Repair works must only be carried out by qualified servicing personnel.
l

Installation :

Do place the power cable properly so it will not be steeped in or tripped over.
Do not place the AC power supply in a location where it is:
l Subject to extreme high or low ambient temperature
Subject to direct sunlight or near a heat source such as oven, stove etc.
l
Subject to mechanical vibration or shock
l
Subject to excessive amount of dust
l
Operation :
l Make sure the current and voltage of the equipment matches that of the outlet.
For safety, if the output current is too high, the unit will automatically shut down.
l
To prevent damage, not to drop or it may cause a mechanical shock to the unit.
l
After using, disconnect the unit from the wall outlet and the equipment.
l
Disconnect the unit from the AC outlet by pulling on the plug. Do not pull on the cord.
l
l To avoid short-circuiting, do not allow the output screw terminals of the unit or input
connector plug to touch any metal object.
Moisture :
If the device is moved from a cold place to a warm room, condensation may occur
l
inside. To avoid damage please allow the device to reach room temperature before
using it.

Cleaning :

Do remove any power sources from the unit before attempting any cleaning or
l
maintenance checking for preventing from being electrical shocked.
Clean the unit with a soft, dry cloth. If the unit is very dirty, wipe it off with a soft cloth
l
lightly moistened with a mild detergent solution, and then wipe with a soft dry cloth.
If you use any chemical cleaner, observe the instructions provided with the product.
l
If the cabinet of the unit is splashed with any type of solvent such as insecticide, or
l
remains in contact for a long time with cable rubber or vinyl, the finish of the cabinet
may be damaged.
W
ARRANTY
STEED MAGNET PRODUCTS ENTERPRISE CO., LTD. warrant this product to be free from defects
in material and workmanship for a period of 90 days from the date of purchase from our authorized
dealers. Should the product require service during this period, all labor and parts used to effect repairs
will be supplied free of charge. STEED reserve the right to determine whether damage has been
occasioned by accident, misuse, or improper installation whereby the warranty would be void.
In the event of a defect occurring during warranty period, the original purchaser may return the defect
unit along with suitable proof of purchase date
description of the defect to the dealer you purchased. All freight charges incurred for transportation by
the dealer or STEED are the purchaser's responsibility.
Copyright - All Information Reserved !
l
!
(i.e. receipt, docket, credit card slip etc.) and a full
Instruction Manual
R
The Power Master
MS-DC
Multiple Output Security CCTV Power Supply
All Units Were Tested Under LVD IEC/EN 60950-1, PSE J60950, EMC EMI
S
E EN55022 (EN61000-3-2,3) & EMS EN55024 (EN61000-4-2,3,4,5,6,8,11) Standards
Front View
Model MS -DC1206-8CM1
18
1 2 3 4 5
Indicator of Slave Outputs of Regulated 12V at 500mA Max. Each Channel

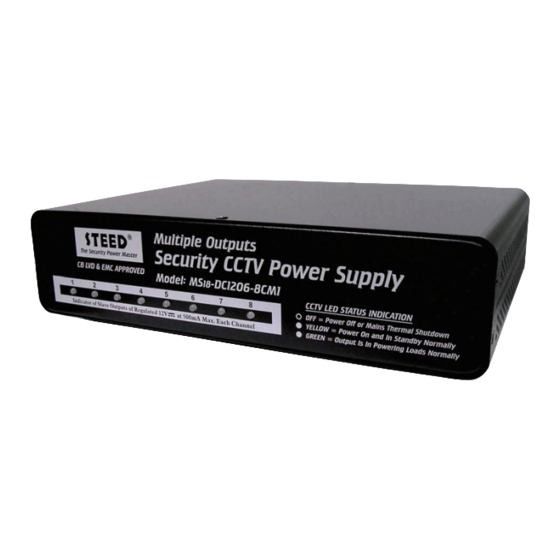

Front View - MS18-DC1206-8CM1
12V DC 6A 84W 8 Channel at 500mA Max. Each
Multiple Outputs
R
Security CCTV Power Supply
The Security Power Master
CB LVD & EMC APPROVED Model : MS
- DC2403-8CM1
18
LED STATUS INDICATION
1 2 3 4 5 6 7 8
OFF = Power Off or Mains Thermal Shutdown
YELLOW = Power On and In Standby Normally
Indicator of Slave Outputs of Regulated 24V at 250mA Max. Each Channel GREEN = Output Is In Powering Loads Normally
Front View - MS18-DC2403-8CM1
AC INPUT MASTER OUTPUT
AC FUSE l Output Voltage: 27.6V
l Replace only l
Output Current: 3Amps
w/2.50A 250V
(Total, Including The
PUSH 5x20mm type RED RED
8 Channel of Slave Outputs)
Fast blow fuse
ON CAUTION 8 7 6 5 4 3 2
AC POWER l
Polarity Are Critical ! REGULATED SLAVE OUTPUTS
OFF
O l Don't Overload Any Outputs
24V 250mA Max. Each Channel
WARNING
DC FUSE
High Voltage !
l Build in 5.0A 32V Fuse
100V - 240V~
1-0.5A 50/60Hz l Replace only with same
BLK BLK
Rating & Blade Auto Fuse
AC INPUT
l Label #LB-2403-8-AF Made in Taiwan Label #LB-2403-8-M l
Rear View - MS18-DC2403-8CM1
24V DC 3A 84W 8 Channel at 250mA Max. Each
!
Copyright - All Information Reserved -
Notes: All rights reserved. Do not reprint without written permission.
l
Steed reserves the right to modify products without notice.
l
Manufactured By:
. ., .
Steed Magnet Products Ent Co Ltd
in Taiwan, R.O.C.
For Distributing By:
Prime-co Pte Ltd.
in Singapore
Copyright - All Information Reserved !
l
Series (Desktop Type)
Rear View
Model MS -DC1206-8CM1
18
LED STATUS INDICATION
6 7 8
OFF = Power Off or Mains Thermal Shutdown
YELLOW = Power On and In Standby Normally
GREEN = Output Is In Powering Loads Normally
Multiple Outputs
R
Security CCTV Power Supply
The Security Power Master
CB LVD & EMC APPROVED Model : MS
- DC481A5-8CM1
18
LED STATUS INDICATION
1 2 3 4 5 6 7 8
OFF = Power Off or Mains Thermal Shutdown
YELLOW = Power On and In Standby Normally
Indicator of Slave Outputs of Regulated 48V at 125mA Max. Each Channel GREEN = Output Is In Powering Loads Normally
Front View - MS18-DC481A5-8CM1
AC INPUT MASTER OUTPUT
AC FUSE l Output Voltage: 55.2V
l Replace only l
Output Current:1.5Amps
w/2.50A 250V
(Total, Including The
PUSH 5x20mm type RED RED
8 Channel of Slave Outputs)
Fast blow fuse
1 ON CAUTION 8 7 6
AC POWER l
Polarity Are Critical ! REGULATED SLAVE OUTPUTS
OFF
O l Don't Overload Any Outputs
48V 125mA Max. Each Channel
WARNING
DC FUSE
High Voltage !
l Build in 3.0A 58V Fuse
100V - 240V~
1-0.5A 50/60Hz l Replace only with same
BLK BLK
Rating & Blade Auto Fuse
AC INPUT
l Label #LB-481A5-8-AF Made in Taiwan Label #LB-481A5-8-M l
Rear View - MS18-DC481A5-8CM1
48V DC 1.5A 84W 8 Channel at 125mA Max. Each
!
File No. MNL-MS-DC-Prime
Issue No. Revision
Available From:
Prime-co Pte Ltd.
7030 Ang Mo Kio Ave 5 #03-27 Northstar
@ AMK, Singapore 569880
l Tel: 65-6252-1221 l Fax:
Email: sales@prime-co.com.sg
Web-site: www.prime-co.com.sg
5 4 3 2 1
Ori 0814
65-6252-4700
