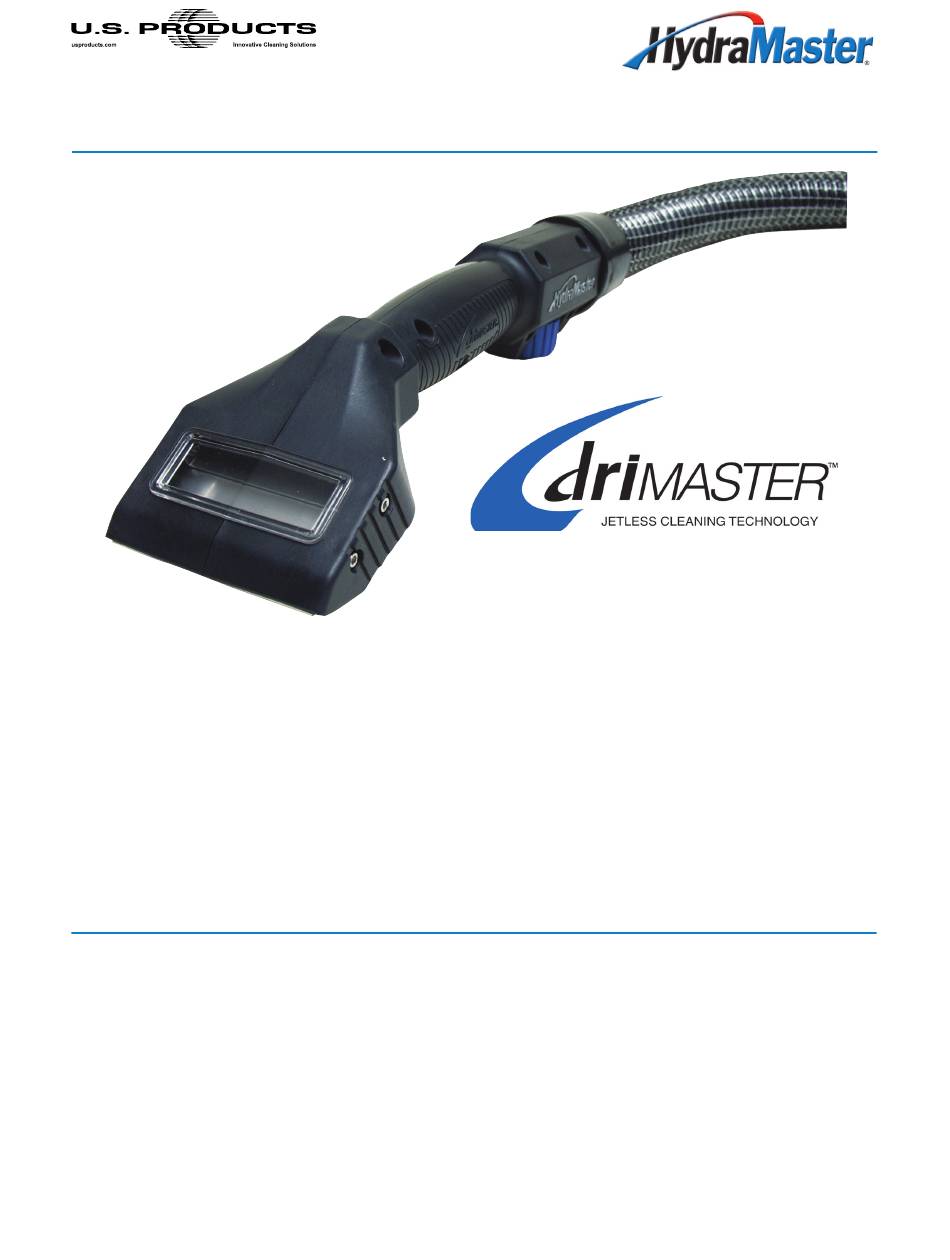

DriMaster HiFlo
Upholstery Tool
Owner's Manual
Model 000-163-012
HydraMaster / U.S Products North America, Inc.
11015 47
Avenue West, Mukilteo, Washington 98275
th
MAN-33123 Rev. 4, February 15, 2013
(182-801)
No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic
retrieval systems) without the express written permission of HydraMaster / U.S. Products Specifications and information in this
document are subject to change without prior notice. All rights reserved. © 2013 HydraMaster / U.S. Products

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydraMaster driMaster HiFlo Upholstery Tool and is the answer not in the manual?

Questions and answers

Summary of Contents for U.S. Products HydraMaster driMaster HiFlo Upholstery Tool

  • Page 1 No part of this manual may be reproduced or used in any form or by any means (i.e. graphic, electronic, photocopying or electronic retrieval systems) without the express written permission of HydraMaster / U.S. Products Specifications and information in this...
  • Page 2 This page intentionally left blank.

  • Page 3: Table Of Contents

    Table of Contents GENERAL INFORMATION ................SECTION 1 Contact Information ................. 1-2 Warnings, Cautions and Notices ............. 1-3 OPERATING INSTRUCTIONS ..............SECTION 2 Optional Accessory Handle Assembly............. 2-1 Begin Cleaning ..................2-2 TOOL MAINTENANCE ................. SECTION 3 Removing and Re-installing the Clear Window Cover ......3-1 Cleaning the Solution Bar Jet..............
  • Page 4 List of Figures Figure 1-1. DriMaster HiFlo Upholstery Tool ............... 1-1 Figure 1-2. Optional Accessory Handle Attached to Tool ..........1-1 Figure 2-1. Remove Tool Screws ................2-1 Figure 2-2. Attach Accessory Handle ................2-1 Figure 2-3. Attach Solution Hose and Adjust Water Volume ........2-2 Figure 2-4.

  • Page 5: General Information

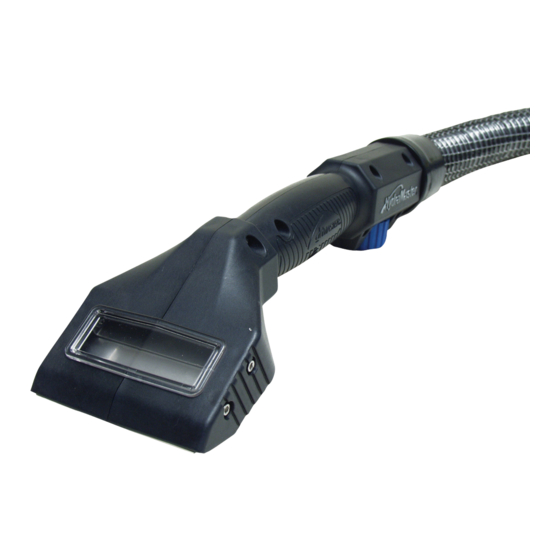

    1 - General Information Congratulations on purchasing the very latest in upholstery cleaning technology. The patented DriMaster HiFlo Upholstery Tool, shown in Figure 1-1, is perfect for cleaning upholstery, fabric and stairs. Because of its Jetless Cleaning Technology, it has no trigger valve, no spray jet and never needs a separate dry pass.* The tool’s new design incorporates light...

  • Page 6: Contact Information

    CONTACT INFORMATION If you have any questions regarding the operation, maintenance or repair of this upholstery tool, please contact your local distributor. To find a local distributor, please visit our website at http://www.hydramaster.com/owners/locate/index.asp. http://www.usproducts.com/findadealer.aspx . If your question cannot be resolved by your distributor or by the information within this manual, you may contact Customer Care direct using the following phone numbers.

  • Page 7: Warnings, Cautions And Notices

    WARNINGS, CAUTIONS AND NOTICES HydraMaster / U.S. Products uses this WARNING symbol throughout the manual to warn of possible injury or death. This CAUTION symbol is used to warn of possible equipment damage. This NOTICE symbol indicates that federal or state regulatory laws may apply, and also emphasizes supplemental information.
  • Page 8 This page intentionally left blank. General Information: 1-4...

  • Page 9: Operating Instructions

    Despite this, it remains only a tool of the upholstery cleaning trade and can produce only as a good a job as the person operating it. HydraMaster / U.S. Products strongly recommends attending an Institute of Inspection, Cleaning and Restoration Certification (IICRC) approved Upholstery Cleaning course as soon as possible and to always follow the IICRC guidelines when cleaning.

  • Page 10: Begin Cleaning

    BEGIN CLEANING Do not use the DriMaster HiFlo Upholstery Tool on a machine exceeding 14” Hg vacuum and 500 psi solution pressure. Personal injury could result. Attach the solution hose to the solution quick connect. A 1 ½” - 2” vacuum hose can be attached to the vac hose manifold (see Figure 2-3).

  • Page 11: Figure 2-4. Turning Knob To "Hiflo" Position Forms Sheet Of Water Across Bar Jet

    When the solution knob is turned toward the “HiFlo” position, the water will form a sheet across the solution bar jet (see Figure 2-4) The amount of vacuum and pressure produced by your machine will determine the overspray on the solution bar jet. The patented solution bar jet makes a trigger valve unnecessary.
  • Page 12 This page intentionally left blank. Operating Instructions: 2-4...

  • Page 13: Tool Maintenance

    3 - Tool Maintenance REMOVING AND RE-INSTALLING THE CLEAR WINDOW COVER Remove vacuum hose cuff from DriMaster HiFlo Upholstery Tool and disconnect the solution hose quick connect as shown in Figure 3-1. Lightly heating the “cuff” with a heat gun will make the cuff easier to remove and install.

  • Page 14: Cleaning The Solution Bar Jet

    Slide the clear window cover off of the tool body. To re-install the clear window cover, slide it into one half of the tool body (see Figure 3-5). Then slide the other half of the body into the window. The clear window has grooves on either side that slide Figure 3-5.

  • Page 15: Cleaning The Filter Cartridge And Orifice Plate

    HydraMaster / U.S. Products recommends you clean the filter cartridge and orifice plate on a periodic basis to eliminate hard water deposit buildup. Both components are conveniently located in the solution quick connect subassembly. DriMaster HiFlo Upholstery Tools Figure 3-7.
  • Page 16 This page intentionally left blank. Tool Maintenance: 3-4...

  • Page 17: Assemblies And Parts Lists

    4 - Assemblies and Parts Lists This section contains all the assemblies and parts lists associated with the upholstery tool: „ Handpiece Assembly Parts List „ Accessory Handle Assembly Parts List „ Hide-A-Hose Assembly Parts List 4-1: Assemblies and Parts Lists...

  • Page 18: Figure 4-1. Handpiece Assembly

    Figure 4-1. Handpiece Assembly 6960 Rev. F Set Screw (P/N 000-143-374) Included with P/N 000-061-146 Assemblies and Parts Lists: 4-2...

  • Page 19: Handpiece Assembly Parts List

    Handpiece Assembly Parts List Item Part Number Description 000-076-088 Jet, DriMaster HiFlo Bar Assembly* 000-105-533 Plate, Wear - DriMaster HiFlo 000-061-138 Handle, Handpiece, Left, DriMaster HiFlo 000-169-014 Valve, Ball 000-052-762 1/8” NPT X 1.5 000-052-433 Quick Disconnect, Male 1/8” NPT 000-061-139 Handle, Handpiece, Right, DriMaster HiFlo 000-174-168...

  • Page 20: Accessory Handle Assembly Parts List

    REVISIONS REVISION CODE REMOVED SPECIFIC MAT'L; ITEM 1 & 2 LRIP CHANGED ITEM 4, NOW IS NYLOC NUT LRIP Figure 4-2. Accessory Handle Assembly 6958 Rev. B Accessory Handle Assembly Parts List Item Part Number Description 000-061-142 Handle, Accessory, Right CAP SCREW, SOCKET HEAD, #6-32 X 2 NUT, #6-32UNC NYLOCK 000-061-141...
  • Page 21 Figure 4-3. Hide-A-Hose Assembly - Parts View 1 of 2 6959 Rev. E DETAIL B SCALE 1 : 2 See Figure 4-4 for details 4-5: Assemblies and Parts Lists...
  • Page 22 Figure 4-4. Hide-A-Hose Assembly - Parts View 2 of 2 6959 Rev. E Assemblies and Parts Lists: 4-6...

  • Page 23: Hide-A-Hose Assembly Parts List

    Hide-A-Hose Assembly Parts List Item Part Number Description - - - Hose, Hide-A-Hose Raw 000-052-434 Quick Connect, Female, 1/8” - Open 000-049-052 Filter Cartridge,1/4” Brass 000-180-023 Orifice, Plate 0.045” * 000-094-118 Nut, Brass Jet X 1/4” FNPT 000-052-050 Quick Connect, 440 Male w/ Viton Std 000-052-171 Housing, 1/4”...
  • Page 24 This page intentionally left blank. Assemblies and Parts Lists: 4-8...

  • Page 25: How To Order Parts

    If, for any reason, your distributor is unable to supply you with the necessary parts, they may call us and arrange for expedited shipping. HydraMaster / U.S. Products sells parts only through authorized distributors and service centers. HydraMaster / U.S. Products warranty covers only defective materials and/or workmanship for the periods listed.
  • Page 26 This page intentionally left blank. How to Order Parts: 5-2...

  • Page 27: Warranty Information

    Freezing, hard water, the use of unapproved solvents and/or abuse will void the warranty. HydraMaster / U.S. Products warranty covers only defective materials and/or workmanship for the period listed. Labor and/or diagnostic reimbursement is specifically excluded. If you have moved to a new area or have purchased a used machine and need information regarding your local distributor, call (425) 775-7272.
  • Page 28 This page intentionally left blank. Warranty Information: 6-2...
