Genesi EFIKA Manual

E F I K A
M A I N B O A R D
Thank you for your purchase of the
EFIKA mainboard. You are reading a
short information guide on how to
use and install this hardware. For
additional information, please visit
our website.
Items of delivery
Please check that your product is
complete. The EFIKA
package should include:
- One mainboard
- this information guide
- PCI Riser card (optional)
Warranty
For information about our warranty
policy, please visit the following web
address:
www.genesi-usa.com/warranty.php
CE Conformity
This product is in conformity with the
Council Directive 89/336/EEC
73/23/EEC of the European Union.
FCC Conformity
This product complies with the American
FCC part 15 class B.
Manufacturer
Genesi USA Inc.
200 Patterson Ave.
San Antonio, TX 78209
USA
Internet: www.genesi-usa.com

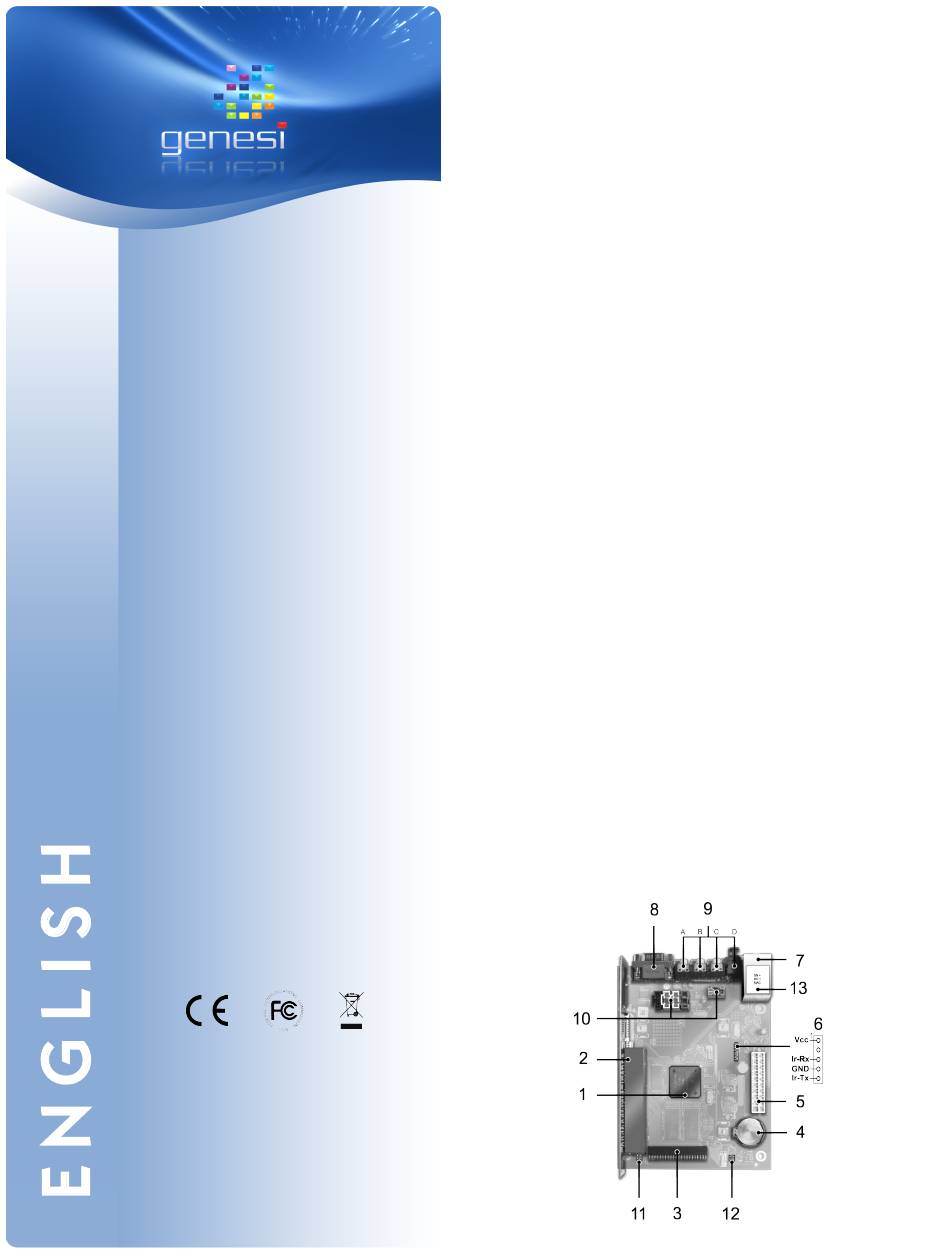

Below you will find an overview of all important product features. In
order to find out where the mentioned components are located on
your mainboard, please note the corresponding numbers and look
for them on the graphic far below.
1. Freescale MPC5200B PowerPC SoC 400MHz
(32 Bit PowerPC with FPU, 603e processor core (e300),
Dhrystone 2.1, 760 MIPS)
with access to 128MB DDR RAM (266MHz) of main memory.
2. PCI slot (compatible to 33MHz and 66MHz PCI 2.2 3.3 volt,
optionally includes a 90 degree AGP Riser card)
3. 44 pin IDE connector (2mm 90 degree port for connecting a
2.5 inch notebook harddisk drive)
4. RTC clock (Real-time clock, system management, power on
/ off)
5. ATX connector for use with an industry standard power supply
unit.
6. Infrared port (IRDA - for communication via infrared
with speeds from 2400 bps upto 4 Mbps; requires additional
infrared receiver hardware to be used)
7. 2x USB ports (1.1 automatic high speed/ low speed recognition,
OHCI)
product
10/100Mbit/s ethernet (Realtek 8201 Phyceiver)
8. 1x RS232 serial port (D-SUB9)
9. Audio connectors: A – Microphone, B – Audio In, C – Audio Out
(headphones / speakers), D – optical S/PDIF out connector
10. Internal audio ports – from left to right (see illustration): Audio In
(CD_IN), Audio In (VID_IN), Audio In (AUX_IN), Headphones(HP)
Microphone (MIC) 90° rotated
11. Two pins each for power LED (PL – left) and harddisk LED
(HD – right).
12. Two pins each for the reset switch (RS – left) and power switch
(PS – right)
13. Information sticker which includes the following details: Your
product's serial number (SN), date of manufacturing (DC) and
and
MAC ID address (MAC).
PRODUCT OVERVIEW
