DSP extension for Amadeus
4 effect DSPs per Amadeus sound module!
This means you can use up to 4 Sounds / Parts per sound module with FX sounds using their
individually effects at the same time!
Uses the accompaniment for example an echo guitar, you can use in the left hand a
background sound with a slow phasing effect and in the right an effect guitar and possibly
another effect sound.
The 4 effect DSPs are each assigned to several parts, so that flexible combinations are possible.
Installation of the operating system for the SEMPRA (BOS Firmware)
The DSP extension requires the following operating system versions:
•
SEMPRA: vers. 1.2 (any date)
•
Amadeus sound modules: vers 5.1 (April, 25

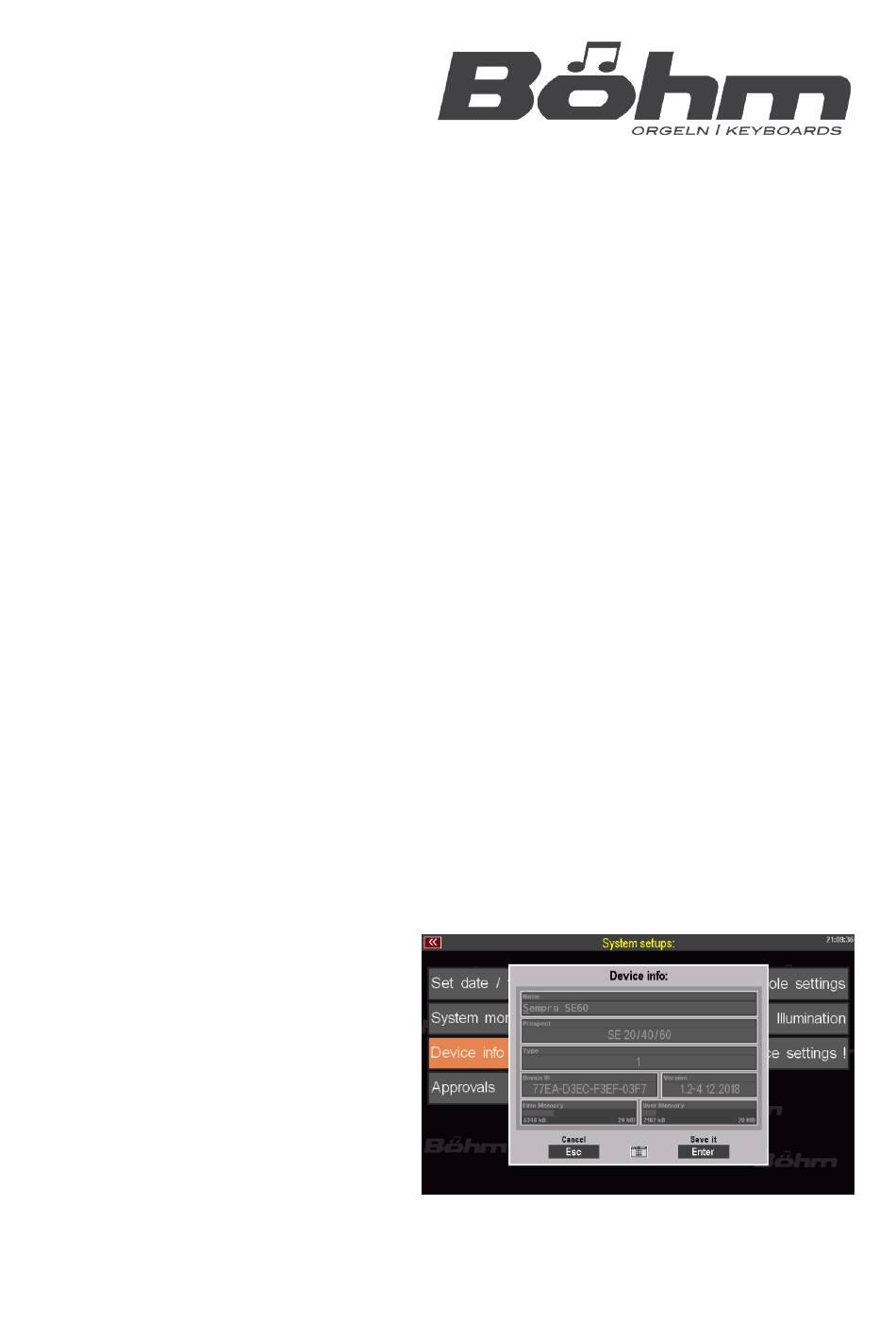

The current firmware version of your SEMPRA
can be found by calling up the menu "System
setups" (8) - "device info" (3).
The version in the example is 1.2 from
04.12.2018 - so no update would be
necessary here.
SEMPRA
th
2018)
Advertisement
Table of Contents
Summary of Contents for Bohn SEMPRA SE 20
- Page 1 SEMPRA DSP extension for Amadeus 4 effect DSPs per Amadeus sound module! This means you can use up to 4 Sounds / Parts per sound module with FX sounds using their individually effects at the same time! Uses the accompaniment for example an echo guitar, you can use in the left hand a background sound with a slow phasing effect and in the right an effect guitar and possibly another effect sound.
- Page 2 If your SEMPRA shows an older version, you will find the current version on the included USB stick (or on our homepage www.boehm-orgeln.de). The current operating system is automatically detected when the stick is inserted. Run the firmware update as described in the main manual and restart the SEMPRA! Updating the firmware of the existing Amadeus sound module(s) The current fimware state of the Amadeus...
- Page 3 • If more than one sound group are installed in your instrument, the display will ask for which sound groups the update should be executed. • If, as in the above example, only ONE soundgroup has to be updated, only this one can be selected, otherwise all soundgroups can be updated at the same time.
- Page 4 Assignment of the parts to the effects The following table shows the assignment of the keyboard parts to the effect DSPs. Depending on the amount of Amadeus sound groups, there are more effects DSPs available at the same time, of course. In the table, there is a column group for each equipment variant. Inside these columns, all parts that use the same effect DSP are also marked in the same color.
