Summary of Contents for GREMSY SBUS

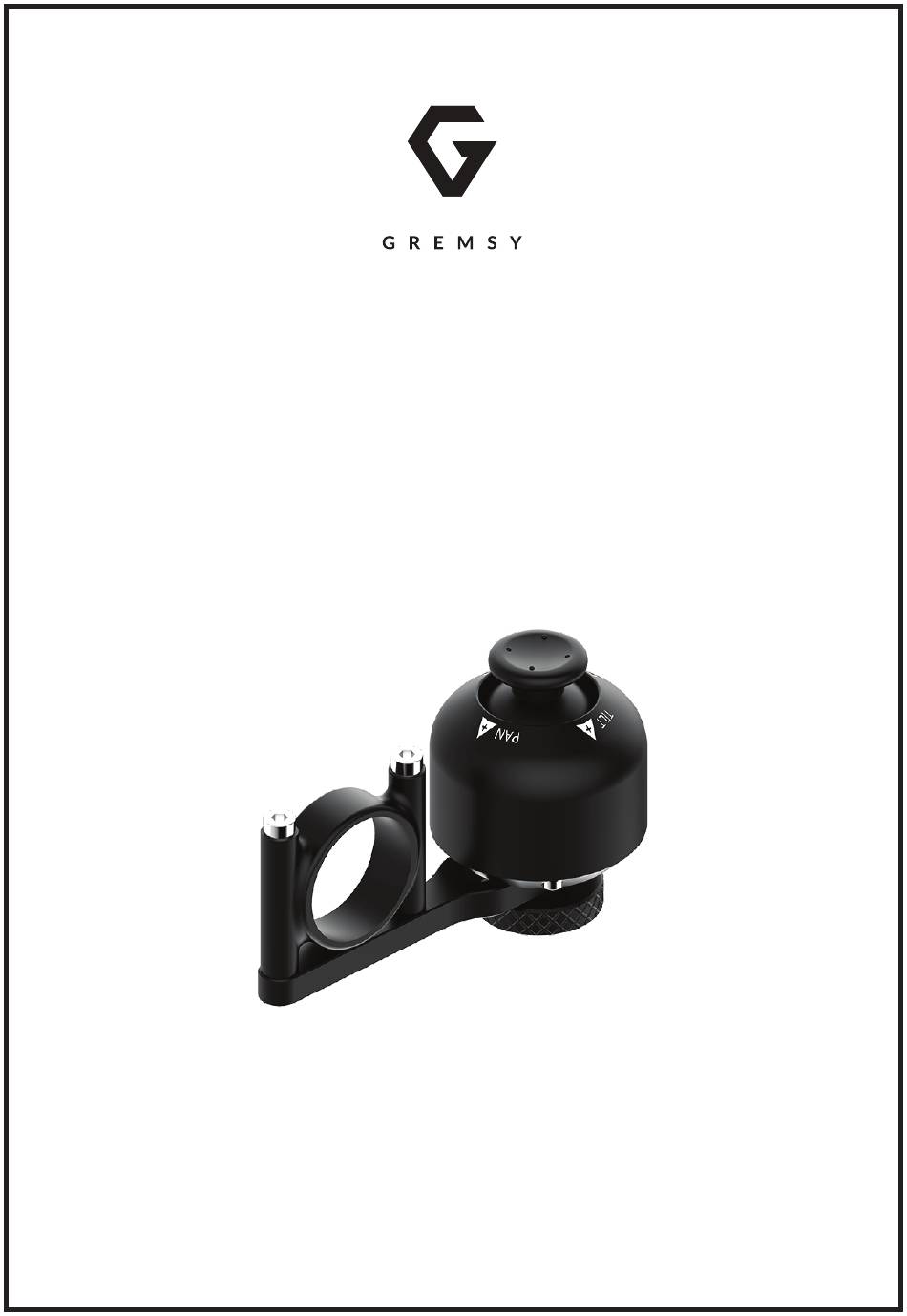

- Page 1 SBUS Joystick Module Manual Version: 1.1 - Date: Jan 23 ,2018...
- Page 2 SBUS Joystick Module is compatible with firmware 5.4.0 and later 1. INSTALL JOYSTICK TO RING OR HANDLE Learn more: https://youtu.be/TmdFlyEW_7M 2. SBUS JOYSTICK CONNECTION Connect SBUS cable from joytick to SBUS port located on the Hyper Quick Release...
- Page 3 3. ASSIGN SBUS CHANNELS Go to SETTINGS -> CONTROLS -> SBUS Select FASST protocol and assign channels as below Channel Note Mode Tilt Speed mode Roll Angle mode Speed mode Tilt Speed Pan Speed...
- Page 4 4. SBUS JOYSTICK MODULE OPERATION ACTIVE INACTIVE CONTROL DISABLE SBUS Press & Hold 3s Press 1 time Press 2 times SET SPEED Press 3 times SET DIRECTION Press 1 time 4.1. DEACTIVATE SBUS JOYSTICK MODULE If joystick is in active state, hold and press button 3 secs will change its state to inactive state...
- Page 5 • Set PAN SPEED : Move pan stick to maxium travel P+ and back to center x times will increase tilt speed by x level (x=1…10) Move pan stick to maxium travel P- and back to center x times will decrease pan speed by x level (x=1…10) Press button 1 time to return to CONTROL mode and LED will turn to BLUE...
