Boss Audio Systems MP3-4100R User Manual

Boss Audio Systems MP3-4100R User Manual

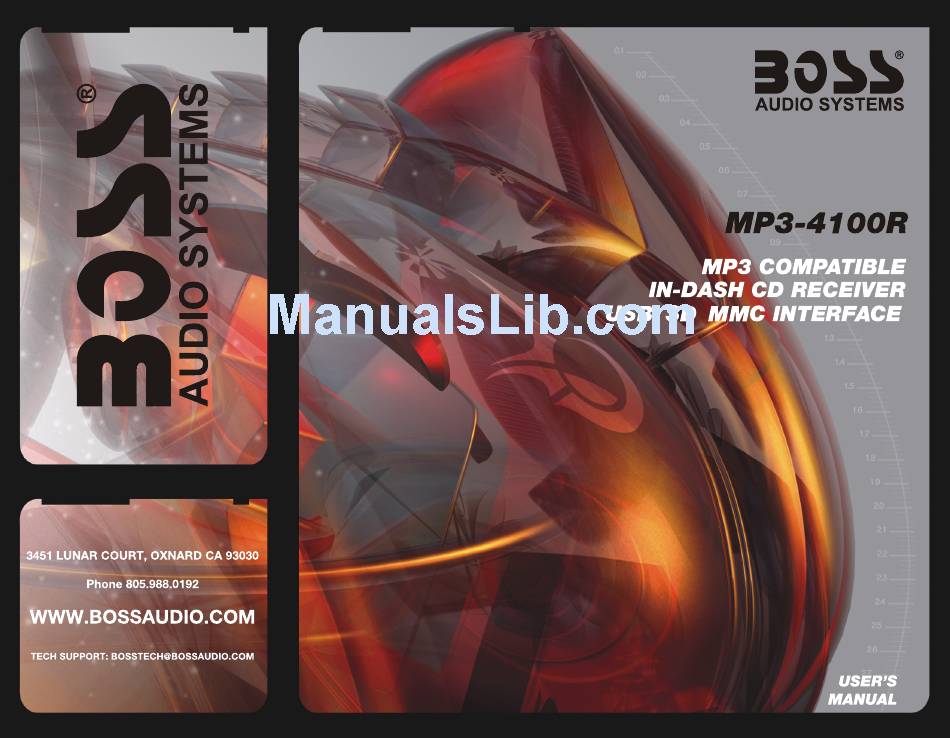

Mp3-compatible in-dash cd receiver usb/sd/mmc interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
/
/

Advertisement

Table of Contents
loading

Related Manuals for Boss Audio Systems MP3-4100R

Summary of Contents for Boss Audio Systems MP3-4100R

  • Page 2: Handling Compact Discs

    1. HANDLING COMPACT DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

  • Page 3: Installation

    2. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
  • Page 4 Removing the unit - Trim Plate Installation: Before attaching the trim plate, the side with a "Bottom" Label stuck should be at down side (as shown on diagram). Push the trim plate against the main panel until it is fitted. - DIN REAR-MOUNT (METHOD B) Installation using the screw holes on the sides of the unit.

  • Page 5: Detachable Control Panel (D.c.p .)

    3.DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). RELEASE BUTTON D.C.P . Attaching the Detachable Control panel (D.C.P .) CAUTION DO NOT insert the D.C.P from the left side. Doing so may damage it. The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.
  • Page 6 4.WIRING DIAGRAM (20 PIN HARNESS PLUG) ANTENNA EXTENDER CABLE RCA-TO-RCA CABLES SUB WOOFER (not supplied) BLUE WOOFER WHITE AMPLIFIER WIRING (SEE AMPLIFIER INSTRUCTIONS) Power Antenna Connect to power antenna or amplifier, If not used, Tape bare end of wire. Ground Connect to ground terminal or clean unpainted metal part of chassis Memory / Battery...
  • Page 7 5.FUNCTION OF CONTROL(MP3 MODEL) A. FUNCTION OF PANEL PANEL TUNING UP / DOWN RELEASE TRACK UP / DOWN POWER BUTTON BUTTON AUTOMATICALLY SOURCE MENU STORE / PRESET BUTTON BUTTON SCAN BUTTON MP3 ENTER BUTTON SUB-WOOFER BUTTON ENCODER VOLUME BUTTON BUTTON BUTTONS PRESET MEMORY BUTTONS (M1~M6) SEARCH...

  • Page 8: Lcd Display

    B. LCD DISPLAY 1. STEREO : Radio stereo indication 2. RPT : Track repeat play indication 3. INT : Track intro play indication 4. RDM : Track random play indication : Preset radio station indication (1 to 6) 6. ARTIST : Artist name indication 7.

  • Page 9: General Operation

    6.GENERAL OPERATION 1) POWER BUTTON Press power button to turn on/off the unit. 4) MENU BUTTON You can operate the following function through MENU button. A. AUDIO OPERATION press MENU button for less than 1 second to open the Audio menu. press MENU repeatedly to navigate through the following functions: VOLUME (VOL) ->...

  • Page 10: Band Button

    3) DISPLAY BUTTON (DISP) At Radio mode Press this button to view frequency of the station in listening and clock time . Clock Adjustment Under clock display mode, press DISP button until the LCD flashes, press VOLUME UP/DOWN to adjust hour & minute. 15) SCAN BUTTON(SCAN) Press this button, the radio will tune up to search stations, the available stations will blinking and stay on the display for a few seconds.
  • Page 11 11) LOC / DX BUTTON This control can be used to change between Local and Distant (-DX) tuning mode. Local mode improves reception in some areas where the signal is too strong. 6) LOUDNESS BUTTON Use this LOUDNESS control to increase bass output. 7) FM MONO / STEREO BUTTON (MONO) Use this control to select stereo or monaural reception for FM radio stations.

  • Page 12: Usb Drive Operations

    PLEASE READ THIS INSTRUCTION CAREFULLY BEFORE OPERATING THE UNIT 8. USB DRIVE OPERATIONS P .1 P .2 P .3 COMPATIBILITY Due to the fast changing technology world, this unit may or may not be compatible to all the USB drive / device available with all the future technology, especially those USB drive / device which require to install a driver.
  • Page 13 WARNING 1) Please never try to fold down the front panel when there is an USB drive / device is plugged in on the front panel. This will cause permanent & serious damage to the unit & USB drive / device.

  • Page 14: Sd/Mmc Operations

    9. SD/MMC OPERATIONS P .1 P .2 P .3 P .4 PLAYING MP3 FILE FROM SD/MMC CARD 1) Press open button to fold down the front panel.(P .1) 2) The SD/MMC card slot is located on top of the front panel near the right side.
  • Page 15 10.MP3 OPERATIONS(CD-R/CD-RW/SD/MMC/USB FILES) - An MP3 directory is shown in this manual as “Folder”, and an MP3 file is shown as “Track”. - Maximum length of track name : 16 characters - Maximum length of folder name : 16 characters - Maximum depth of folder levels : 8 - Maximum number of tracks per disc : 448 - Maximum number of folders per disc : 128...
  • Page 16 4. Searching by character This model also has song name (character) search function for MP3 disc playback, Press MP3 search button three times until “CHAR SCH” is shown on display, then press Enter button once, character “A ” blinks, use volume up or down to select desired character (1st letter), press Enter button to confirm your choice and second character “A ”...

  • Page 17: Remote Control

    11.REMOTE CONTROL OPETATIONS: Radio Mode 1.Power( ) Power On/Off Menu operation 2.MENU / ENTER 3.Volume Up/Down Adjust Vol,Bas, Tre,Bal,Fad 4.Tuning Up/Down Tuning/Seek Up/Down & Track Up/Down 5.Mute (MUT) Mute 6.Band (BND) Band 7. SCAN (SCN) Station Scan 8.LOC Local/DX 9.Mono/ST (MO) FM Mono/Stereo 10.Numeric Key (1) Preset station 1...

  • Page 18: Specifications

    12.SPECIFICATIONS CD PLAYER System Usable disc Sampling frequency No of quantization bits Frequency Number of channels S/N Ratio RADIO SECTION Frequency Range Intermediate Frequency Usable Sensitivity Stereo Separation S/N Ratio AM (MW) Frequency Range Intermediate Frequency Usable Sensitivity S/N Ratio GENERAL Power Supply Polarity...

  • Page 19: Troubleshooting

    13.TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom No power The car ignition is not on. The fuse is blown. Disc cannot be loaded Presence of CD disc inside or ejected...
