Summary of Contents for unGer Rinse'N'Go Max
- Page 1 User Manual Read carefully for safety, assembly and operating instructions prior to using this product.
-
Page 2: Table Of Contents
READ USER MANUAL BEFORE USING PRODUCT TABLE OF CONTENTS Introduction.......................... 3 1.0 Safety Information ....................4-5 2.0 System Products & Accessories ................. 6-9 3.0 Assembly Instructions .....................10 4.0 Use and Operation ....................11-12 5.0 Pure Water Production....................13 6.0 System Maintenance - Replacing Resin Filter & Care ......14-16 7.0 Storage .........................16 8.0 Environmental Information ..................16 9.0 TDS Meter ........................17... -
Page 3: Introduction
INTRODUCTION Thank you for your purchase of the Unger Professional Rinse 'N' Go Max™ system. This manual will help you get set up and begin using your product right away. When used as intended, this system will produce low total dissolved solids or TDS (less than 20 ppm) pure water for auto, boat, RV and solar panels. -
Page 4: Safety Information
Unger is not liable for damage to application areas, plumbing system components or persons. Unger is not liable for misuse or mishandling of the product, including dropping, dragging or dismantling. - Page 5 1.2 WHEN STARTING SYSTEM: • For use only with tap water. • Do not connect to pressure washer or auxiliary pump. • Do not exceed water pressure of 115 psi. • Check system for cracks/damage. • Be sure cover is in fully locked position. 1.3 BEFORE OPENING SYSTEM TO REPLACE RESIN: 1.

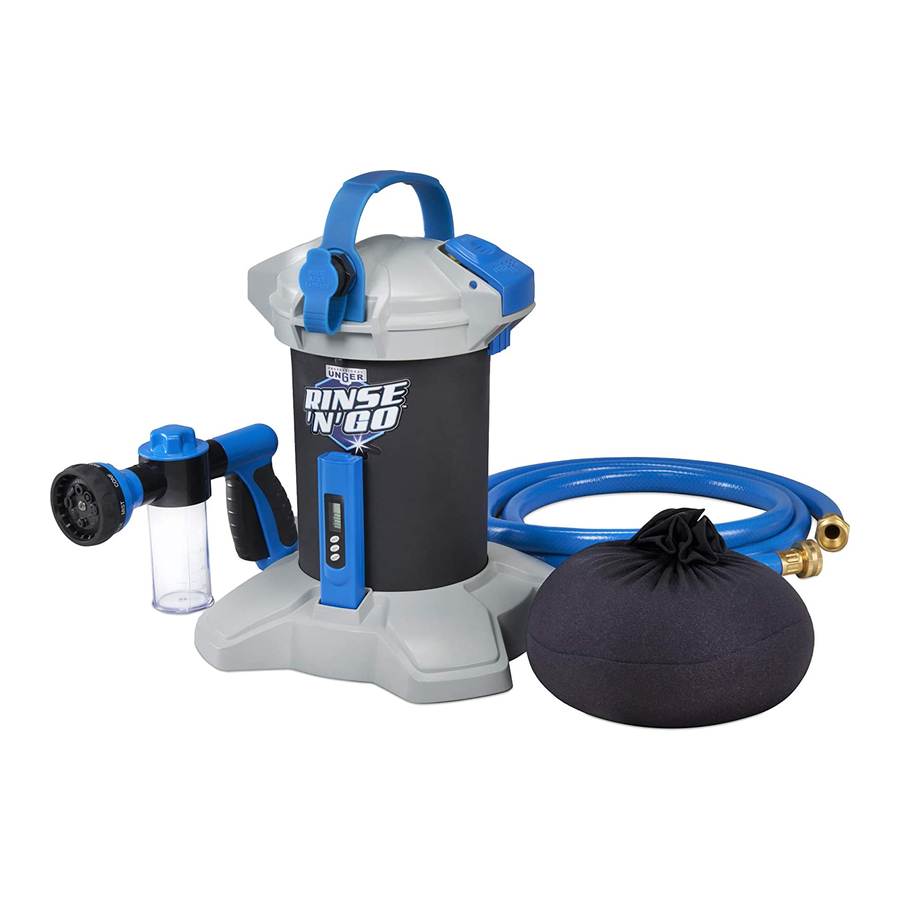

- Page 6 2.0 SYSTEM PRODUCTS & ACCESSORIES NOTE: When unpacking the product, make sure that no accessories are missing and that none of the package contents have been damaged. RINSE 'N' GO MAX™ DEIONIZATION SYSTEM OVERVIEW This product can be connected to traditional garden hoses and used with conventional car and window cleaning tools of your choice.
- Page 7 SOAP BLASTING NOZZLE OVERVIEW Spray delivery Flow control knob Spray pattern selector Soap Blasting Nozzle Soap container connects to the outlet Locking hose (not provided) trigger Battery TDS METER OVERVIEW compartment Hold Temperature On/Off Maximum immersion level Protective cap TDS meter electrode...
-
Page 8: System Products & Accessories
SYSTEM PRODUCTS & ACCESSORIES WATER-FED POLE & SOFT WASH BRUSH Water flow ON / OFF valve Pole connects to the outlet hose (not provided) Non-slip grip foam Water-fed pole Water-fed soft wash brush... - Page 9 INLET HOSE AND CONNECTION PLUGS Water supply hose connects Water supply hose to the inlet connection (ON/OFF valve) QUICK CONNECT PLUGS Inlet Adapters Outlet Adapters Outlet female plug Inlet plug (male plug) Outlet garden hose Water supply hose (male plug) ON/OFF valve Garden hose (not provided)
-
Page 10: Assembly Instructions
3.0 ASSEMBLY INSTRUCTIONS • Unpack Unit: Inspect the Unger Professional Rinse 'N' Go Max™ system and all components to ensure there are no cracks or other damage. Read all warnings and manual. • Ensure there is a resin filter inside the unit. -
Page 11: Use And Operation
4.0 USE AND OPERATION Unger recommends testing the water supply for TDS prior to use in order to determine approximately how many times you can rinse your vehicle before replacing the resin filter. INSPECT THE RINSE 'N' GO MAX™ SYSTEM PRIOR TO USE Inspect system for leaks, cracks, or dents and proper fit of top cap assembly. - Page 12 4.0 USE AND OPERATION (CONT.) 1. Fill container with your favorite concentrated car wash shampoo (do not add water). 2. Attach the spray nozzle to your garden hose. USING THE TDS METER 1. Remove the protective cap. 2. Press the ON/OFF button to turn the meter on. 3.
-
Page 13: Pure Water Production
5.0 PURE WATER PRODUCTION Tap water flows into the system’s lower connection port via tap pressure and flows upwards through the Rinse 'N' Go Max™ tank. Pure water exits through the top connection. When plumbing line pressures fall below 40 psi, a reduction in flow rates will be noticeable. -
Page 14: System Maintenance - Replacing Resin Filter & Care
6.0 SYSTEM MAINTENANCE AND CARE Unger does not recommend the use of any other resin except that which is made specifically for the Unger Professional Rinse 'N' Go Max™. The use of any other resin may cause damage to the system. - Page 15 OPENING THE UNIT AND REPLACING THE RESIN FILTER First shut off tap water supply, then press yellow FastLock™ lever on system head assembly. Turn ON/OFF Input connector (at the bottom of the unit) to “OFF” position and disconnect output hose (at the top of the unit). Press yellow FastLock™...
-
Page 16: Storage
THERE IS A RISK OF DAMAGE TO THE SYSTEM DUE TO: • Operating and installation errors. • Use of resin filter other than that specifically made for Unger Professional Rinse 'N' Go Max™ system. • Use of loose resin (loose resin will most likely cause clogging and reduce flow rate). -
Page 17: Tds Meter
9.0 TDS METER The TDS meter model HS-1510 included with the system is to measure the Total Dissolved Solids (TDS) level in the water that comes out of the Rinse 'N' Go Max™ system. TDS is a measure of how pure the water is. Water that contains a TDS of less than 20 ppm should not leave spotting on the vehicle. -
Page 18: Product Guarantee
PRODUCT LIFETIME GUARANTEE We design and test Unger products to ensure they meet our high quality standards. We support this with the Unger Professional Product Lifetime Guarantee. We will replace your Unger Professional Rinse 'N' Go Max™ system if it does not meet our high quality standards for material, construction, or workmanship. - Page 19 Thank you for using...
- Page 20 ™ Unger Industrial, LLC 425 Asylum Street Bridgeport, CT 06610 (800) 833-6100 www.ungerpro.com...
