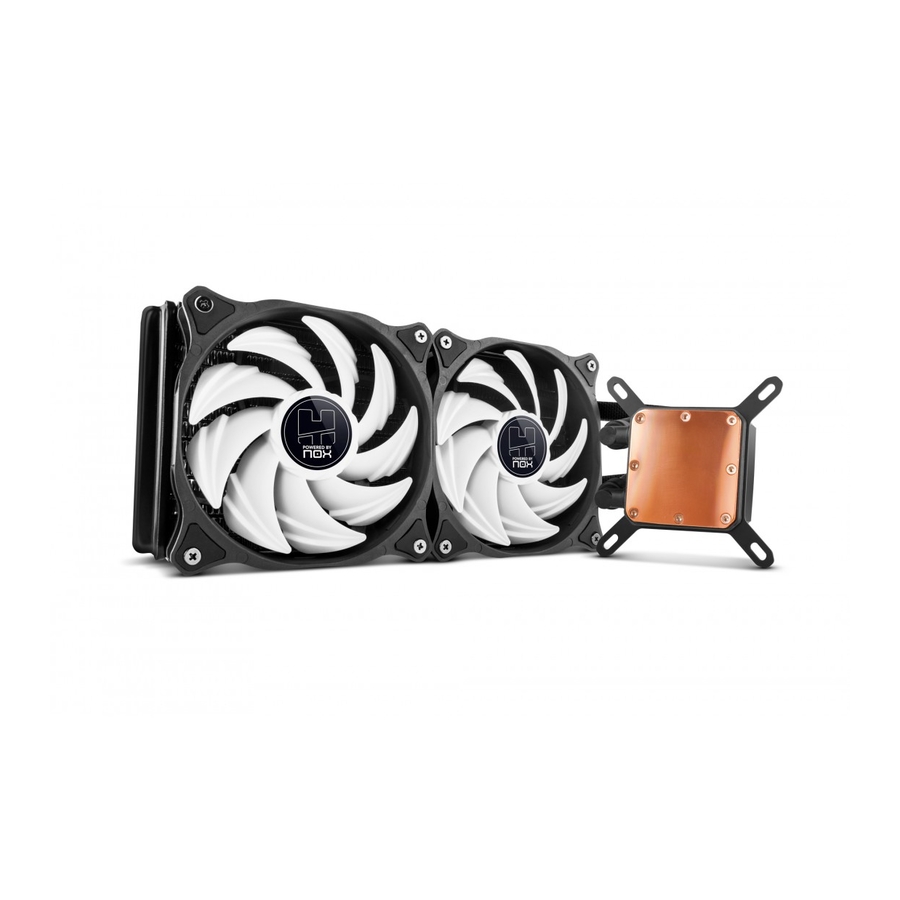

nox Hummer H-240CL Manual
  1. Manuals
  2. Brands
  3. nox Manuals
  4. Computer Hardware
  5. Hummer H-240CL
  6. Manual

nox Hummer H-240CL Manual

Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
H-240CL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hummer H-240CL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for nox Hummer H-240CL

  • Page 1 H-240CL...
  • Page 2 EN - Warning Improper installation will result in damage to the processor. Never switch the computer system on until the cooler and the fans are connected to the motherboard power connector. Always use the included screws. Screw the radiator with care to avoid damaging it. Electrostatic discharge (ESD) can damage system components.
  • Page 3 H-240CL...

  • Page 4: Warranty

    Please read this user’s manual carefully before installation to get the water cooler’s best performance by optimized installation. Nox Xtreme is not responsible for any damage to the product or injury caused by incorrect installation or user’s carelessness. The water cooler may cause interference with some motherboards.
  • Page 5 1) 6mm radiator screws x8 6) Spring nuts x4 11) Insulative rings x4 2) 29.5mm fan screws x8 7) Back plate spacer (AMD) x1 12) AMD clip x1 3) Intel LGA 2011 screws x4 8) Back plate x1 13) Fan spliter cable x1 4) Thermal compound x1 9) 28.5mm back plate screws x4 14) 12cm Hummer fan x2...
  • Page 6 B) Apply the Intel clip (5) on the cooler. C) Remove the protective tape from the (If not pre-installed) cooler’s base. LGA 775 / 115X / 1366 LGA 2011 D.1) Place the Intel clip on the LGA 2011 D.1) Place the Intel clip on the back plate screws.
  • Page 7 G) Place the AMD clip on the back plate screws. Attach the spring nuts (6) on the back plate screws. Connecting the cooler pump to the motherboard A) Connect the 3-pin pump power cable to the CPU fan header on the motherboard.

  • Page 8: Aviso Importante

    Leia este manual cuidadosamente antes de instalar o cooler CPU. A sua correcta instalação permite obter a melhor performance. A Nox Xtreme não se responsabiliza por quaisquer danos no produto, ou que este possa causar em produtos terceiros, por instalação incorrecta ou falta de cuidado. É possível, apesar de improvável, que o cooler CPU cause interferências na motherboard.
  • Page 9 1) Parafuso radiador 6mm x8 6) Porca de mola x4 11) Anilha isoladora x4 2) Parafuso ventoinha 29.5mm x8 7) Espaçador back plate (AMD) x1 12) Clip AMD x1 3) Parafuso Intel LGA 2011 x4 8) Back plate x1 13) Cabo divisor ventoinhas x1 4) Massa térmica x1 9) Parafuso 28.5mm back plate x4 14) Ventoinha 12cm Hummer x2...
  • Page 10 B) Aplique o clip Intel clip (5) no cooler. C) Remova a proteção da base do cooler. (Se não pré-instalado) LGA 775 / 115X / 1366 LGA 2011 D.1) Coloque o clip Intel nos parafusos D.1) Coloque o clip Intel nos parafusos LGA 2011.
  • Page 11 G) Coloque o clip AMD nos parafusos da back plate. Fixe as porcas de mola (6) nos parafusos. Ligar a bomba do cooler na motherboard A) Ligue o cabo de alimentação de 3 pinos da bomba do cooler na CPU fan header da motherboard.

  • Page 12: Descripción De Componentes

    Para cualquier reclamación de la garantía, por favor póngase en contacto con los distribuidores de Nox Xtreme en el país en el que haya realizado la compra. Puede ver la red de distribuidores en nox-xtreme.com Garantía: 2 años desde la fecha de compra.
  • Page 13 1) Tornillos cooler 6 mm x8 6) Tuercas de resorte x4 10) Espaciadores x4 2) Tornillos ventilador 29,5 mm x8 7) Adhesivo aislante placa trasera 11) Anillos aislantes x4 3) Tornillos Intel LGA 2011 x4 12) Clip AMD x1 (AMD) x1 4) Compuesto térmico x1 8) Placa trasera x1 13) Cable divisor del ventilador x1...
  • Page 14 B) Aplique el clip Intel (5) en el cooler. C) Retire la cinta protectora de la base (Si no está preinstalado) del cooler. LGA 775 / 115X / 1366 LGA 2011 D.1) Coloque el clip de Intel en los D.1) Coloque el clip de Intel en los tornillos de tornillos LGA 2011.
  • Page 15 G) Coloque el clip AMD en los tornillos de la placa posterior. Fije las tuercas de resorte (6) en los tornillos de la placa posterior. Conexión de la bomba del cooler a la placa base A) Conecte el cable de alimentación de la bomba de 3 pines al conector del ventilador de la CPU en la placa base.
