VF SPC4 702-DL User Manual

Wifi data logging and monitoring system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

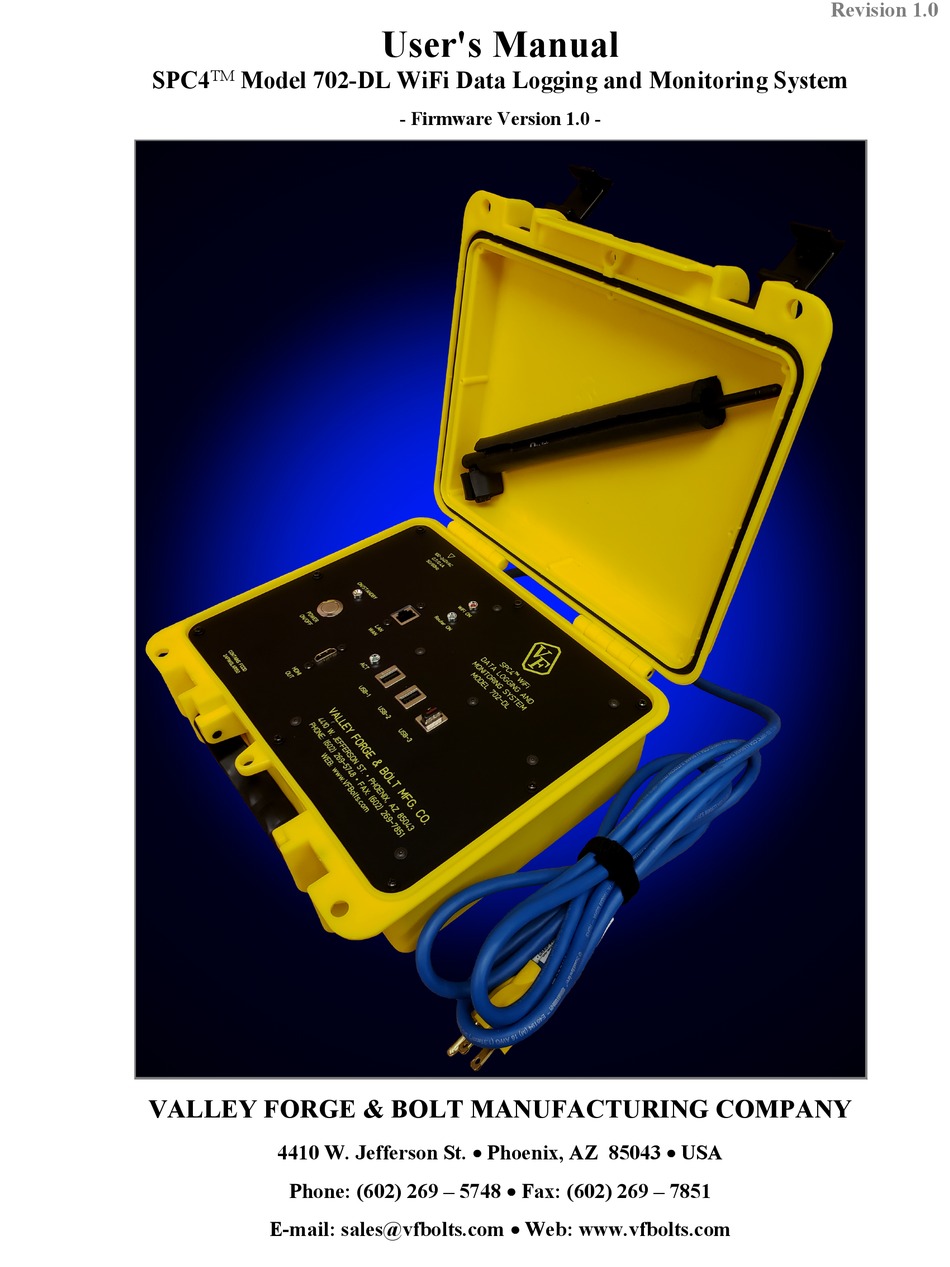

Revision 1.0
User's Manual
SPC4
TM
Model 702-DL WiFi Data Logging and Monitoring System
- Firmware Version 1.0 -
VALLEY FORGE & BOLT MANUFACTURING COMPANY
4410 W. Jefferson St.    Phoenix, AZ 85043    USA
Phone: (602) 269 – 5748    Fax: (602) 269 – 7851
E-mail: sales@vfbolts.com    Web: www.vfbolts.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPC4 702-DL and is the answer not in the manual?

Questions and answers

Summary of Contents for VF SPC4 702-DL

  • Page 1 Revision 1.0 User's Manual SPC4 Model 702-DL WiFi Data Logging and Monitoring System - Firmware Version 1.0 - VALLEY FORGE & BOLT MANUFACTURING COMPANY 4410 W. Jefferson St.    Phoenix, AZ 85043    USA Phone: (602) 269 – 5748    Fax: (602) 269 – 7851 E-mail: sales@vfbolts.com ...
  • Page 2 VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com WARNING FASTENER INSTALLATION CAN BE VERY DANGEROUS OR EVEN DEADLY! ALWAYS WEAR PROTECTIVE EQUIPMENT AND FOLLOW INSTRUCTIONS CAREFULLY WHILE OPERATING YOUR TIGHTENING EQUIPMENT.

  • Page 3: Table Of Contents

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com TABLE OF CONTENTS Page 1.0 Introduction 1.1 Inspection 1.2 Included Items 1.3 Description of the SPC4 Model 702-DL WiFi Data Logging and Monitoring System 1.3.1 702-DL WiFi Data Logging and Monitoring System (DL) 1.3.2 702-DL WiFi Data Logging and Monitoring System - Front Panel...

  • Page 4: Introduction

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 1.0 Introduction The SPC4 Model 702-DL WiFi Load Monitoring System (SPC4 System) is designed to facilitate the bolted structures’...

  • Page 5: Description Of The Spc4 Tm Model 702-Dl Wifi Data Logging And Monitoring System

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 1.3 Description of the SPC4 Model 702-DL WiFi Data Logging and Monitoring System 1.3.1 702-DL WiFi Data Logging and Monitoring System (DL) Figure 1.3.1 –...
  • Page 6 VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com Figure 1.3.2 – 702-DL - Bottom View ..4..8.. - POWER SUPPLY SCREWS (x2) - NETWORK CONNECTOR (* SIDE VIEW) ..5..
  • Page 7 VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com Please see “Figure 1.3.1 - - Front View (Lid Open)” and “Figure 1.3.2 - - Bottom View”. 702-DL 702-DL ..1..

  • Page 8: 702-Dl Wifi Data Logging And Monitoring System - Front Panel

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 1.3.2 702-DL WiFi Data Logging and Monitoring System - Front Panel Figure 1.3.3 – 702-DL - Front Panel ..1..
  • Page 9 VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com Please see “Figure 1.3.4 - - Front Panel”. 702-DL ..1.. - “ON/STANDBY” LED  A yellow LED that shows the current status of the DL. When off, the DL is not currently powered. When blinking, the DL is in its standby mode (WiFi router is powered).

  • Page 10: Description Of The Power Cord Tips (Pct)

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com .10. - USB CONNECTORS  Three USB connectors (named “USB-1”, “USB-2”, and “USB-3”) connected to the on board computer which are used with USB devices such as the supplied USB flash drive.

  • Page 11: Description Of The Antenna Connector Cap (Acc)

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 1.3.5 Description of the Antenna Connector Cap (ACC) The antenna connector cap (Figure 1.3.6 – Antenna Connector Cap (ACC)) is a simple yet effective means of protecting the DL antenna connector from dirt and damage.

  • Page 12: Warning

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 2.1 Warning FASTENER INSTALLATION CAN BE VERY DANGEROUS OR EVEN DEADLY! ALWAYS WEAR PROTECTIVE EQUIPMENT AND FOLLOW INSTRUCTIONS CAREFULLY WHILE OPERATING YOUR TIGHTENING EQUIPMENT.

  • Page 13: 702-Dl Setup

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com The label of the USB flash drive is “VFLOG” and should never be changed. Do not attempt to clean the DL by abrading it with emery cloth or sandpaper. Any attempts of cleaning the DL should be made while it is completely unpowered (power cord disconnected) and the antenna removed with the ACC covering the enclosure antenna connector.

  • Page 14: 702-Dl Shutdown

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 2.4 702-DL Shutdown [1] Press the “POWER ON/OFF” button momentarily. The “ACT” LED will flicker while the on board computer saves any open files and will turn off when done.

  • Page 15: Flash Drive Direct Access

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com [5] A new file will appear called “WiFiBoltLog.txt”. This is the where all of the bolt load data is stored. From here, double-clicking and opening the file grants access to the recorded data.

  • Page 16: Antenna Installation

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 2.6 Antenna Installation [1] Remove the antenna from the holder and with the antenna in hand, bend the foot so that it is completely straight.

  • Page 17: Additional Information

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 2.9 Additional Information 2.9.1 702-DL Router The router is what allows the DL to receive and send data via the router’s WiFi network. As such, the router may be accessed if desired to change specific elements at a risk that any change may hinder the DL or make it become nonoperational.

  • Page 18: 702-Dl Placement

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 2.9.3 702-DL Placement The DL should be placed in the general location of the 702-01 WiFi monitoring units to ensure a good connection is made between the two.

  • Page 19: Spc4 Tm Model 702-Dl Wifi Data Logging And Monitoring System Specifications

    VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com 3.0 SPC4 Model 702-DL WiFi Data Logging and Monitoring System Specifications 3.1 Electrical Specifications Supply Voltage: 100 to 240 V AC Internal Power Supply: 5.15 V RTC Battery:...
  • Page 20 VALLEY FORGE & BOLT MANUFACTURING COMPANY PHONE: (602) 269 - 5748 4410 W. Jefferson St. • Phoenix, AZ 85043 • USA WEB: www.vfbolts.com NOTES: SYSTEM    MODEL 702-DL    USER'S MANUAL SPC4 Rev. 1.0 - Page 20 of 20 -...
