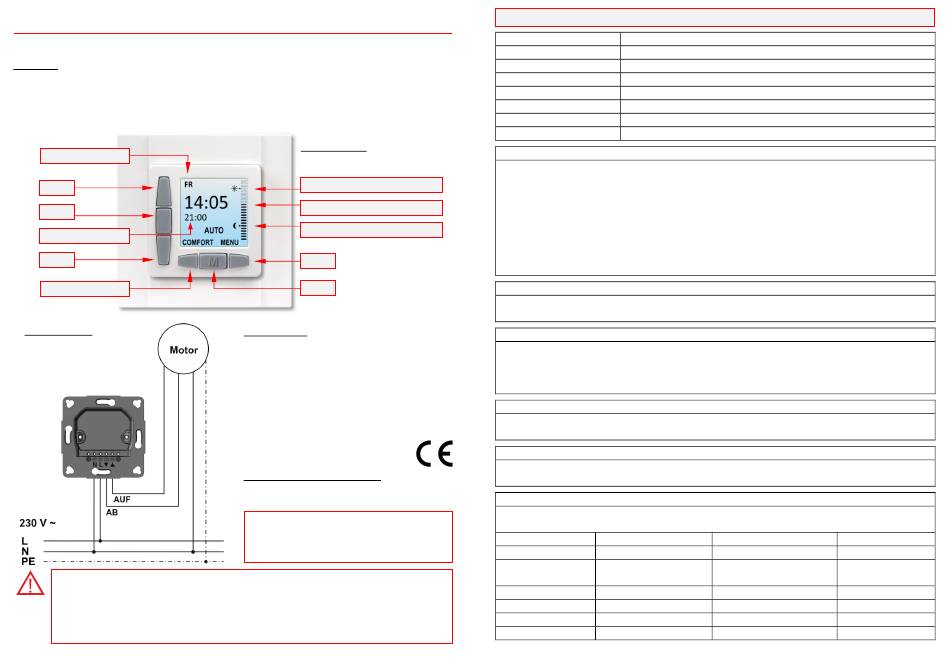

User Manual
ROJAL SAT is a electronic timer for controlling a 230 V AC shutter or blind drive.
Functions: ASTRO function, day/week program, holiday switching, inching mode, variable travel
time, auto slats turn/ventilation function, automatic switchover winter‐/summertime, variable
comfort position (partial lowering), backlit display (6 colours), connection for an optional sun/twilight
sensor, all menu items/settings in plain text. The installation dimensions of 50 x 50mm (according to
DIN 49075) enable the appliance to be installed in most standard switch programs of leading switch
manufacturers.
Weekday
UP
STOP
Next switching time
DOWN
COMFORT
Wiring diagram
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
are supervised or have been given instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.
ROJAL SAT ‐ Timer
Sensor displays
(if sensor is connected)
Limit/threshold value "Sun"
Current external brightness
Limit/threshold value "Twilight"
MENU
MODE
Technical data
Operating voltage:
230V/50Hz
Switching voltage:
250V AC
Switching capacity:
3A (cos phi=1)
Temperature range:
0°C to +45°C
Travel time:
0‐180 s.
Accuracy:
< 3 s/day
Power reserve :
≥ 72 hours
Terminal:
max. 2.5mm²
Power consumption:
< 1W
Degree of protection:
IP 40
Safety class:
II
Brightness sensor setting range:
Sun function
5‐70 kLux
Twilight function
1‐500 Lux
ATTENTION! Work on the 230V mains
may only be carried out by authorised
electricians!
UP < 1 s.
Inching mode or move up (if inching mode deactivated)
UP > 1 s.
Move up
DOWN < 1 s.
Inching mode or move down (if inching mode deactivated)
DOWN > 1 s.
Move down
STOP
Stop running motor
COMFORT
Move to Comfort position (shade position/partial lowering)
MODE > 2 s.
Change operating modes (MAN, AUTO, HOLIDAY)
MENU > 2 s.
Input/output programming
Press and hold the MODE (M) button > 2 s. to switch between the available operating modes.
Three modes are available:
MAN Manual operations (automatic timing and sensor functions deactivated)
AUTO Automatic timing and sensor functions (if sensor available) activated
Holiday Automatic timing, random generator and sensor functions (if available) activated
In the operating mode HOLIDAY the random generator is activated in addition to the automatic
timing. The programmed switching times are delayed randomly by 1‐30 minutes. The next
switching time is shown correspondingly in the display with the symbol "+" (e.g. 21:00+).
Switchover winter/summer time
The switchover between winter time and summer time is done automatically by means of the
date. Where necessary, this can be switched on/off in the menu item SETTINGS/SU‐/WINTERTIME.
Illumination and display colour scheme
The display colour scheme can be set in the menu item SETTINGS/COLOUR SCHEME. The LCD light
is switched off after 5 minutes in standby mode, and switches back on automatically on the next
status change (a button is pressed, a switching process is triggered, the limit/threshold value of
one of the sensor functions was reached).
All settings, switching times, etc. remain permanently stored. Only the current time and date have
to be reset after a power failure ≥72 hours.
Pressing the UP/DOWN buttons briefly (< 1 s.) slants the blind slats or positions the blinds exactly.
The inching mode can be switched on/off at any time in the menu SETTINGS/INCHING MODE.
Where required the factory settings of all function parameters can be reset in the menu item
SETTINGS/RESET:
Operating mode
MAN
Time/date
12:00, 01 July 2015
Country/region
DE‐Mitte
[Central Germany]
ASTRO UP
Sunrise + 0 h
Locking time UP
No earlier than 07:00
ASTRO DOWN
Sunset + 1 h
Locking time DOWN No later than 21:00
‐1‐
Operating
timer
the
Possible operating modes
Power reserve
Inching mode
Reset/factory settings
Menu language
Travel time
Inching mode
Turn function
Comfort position
Limit value "Sun"
Limit value "Twilight"
German
60 s.
OFF
0 s.
10% shade
approx. 30 kLux
approx. 4 Lux
Advertisement
Summary of Contents for Inprojal ROJAL SAT
- Page 1 Operating timer User Manual ROJAL SAT ‐ Timer UP < 1 s. Inching mode or move up (if inching mode deactivated) ROJAL SAT is a electronic timer for controlling a 230 V AC shutter or blind drive. UP > 1 s. Move up Functions: ASTRO function, day/week program, holiday switching, inching mode, variable travel DOWN < 1 s. Inching mode or move down (if inching mode deactivated) time, auto slats turn/ventilation function, automatic switchover winter‐/summertime, variable DOWN > 1 s. ...
- Page 2 Set time and date ASTRO: Set land/region Set the auto slats turn function The current time and/or the date must be set during the first It is important to specify the land or The auto slats turn function is a brief LAND / REGION start‐up or after a longer power failure (≥ 72 hours) with the region for correct calculation of the automatic UP movement of the shutter following steps: astronomical sunrise/sunset times in or blind after a completed DOWN 12. DE‐MID your area. operation. The brief UP movements can 1 Select menu item The following countries/regions can be be used for subsequent slanting of the set in the menu item SETTTINGS/ASTRO: blind slats or to ventilate the shutters. SETTINGS/CLOCK+DATE Hold the MENU > 2 s. (bottom The auto slats turn function is carried out right), then select the item automatically: SETTINGS in the MAIN MENU and PT Portugal ES ...
- Page 3 Astro function and switching times Set switching times 6 Set the desired value SUNSET Please ensure that the correct time/date is set in the menu item Use the UP/DOWN buttons to set ‐1 St. SETTINGS/TIME & DATE and that the desired country or region is 1 Select the menu item TIME the value (e.g. change from "21:00" LATEST BY: set in the menu item SETTINGS/ASTRO (factory setting: DE‐MID PROGRAM to "22:00") and confirm by pressing 22:00 [Central Germany]). Hold the MENU >2 s. (bottom right), M (MODE). The display stops DAILY use the UP/DOWN buttons to select flashing. The UP and DOWN switching times of the ROJAL SAT are linked to the item TIME PROGRAM, confirm Repeat steps 5‐6 if other the astronomical sunrise/ sunset times of the selected region and by pressing M (MODE). parameters in the display have to be follow these astronomical times with a time interval set by the corrected. operator (options: ‐2 h, ‐1.5 h, ‐1 h, ‐0.5 h, 0 h, +0.5 h, +1 h, +1.5 ...
- Page 4 The sensor functions are ended as soon as a DOWN operation hold the button MENU > 2 s. pressing M (MODE). for the period of the preset travel time is concluded. (bottom right) and leave This DOWN operation can be triggered by: programming. 2 Select the parameter FUNCTIONS A) the DOWN switching time of the time program; Use the UP/DOWN buttons to B) manual operation (DOWN button); select the parameter (e.g. Sun C) the sensor's twilight function inprojal elektrosysteme GmbH function "SUN" ON), confirm by The "Sun" and "Moon" symbols then disappear from the display. Auf dem Schüffel 1 pressing M (MODE). The "ON" 58513 Lüdenscheid display starts to flash. ROJAL SAT_Rev.1_ENG ‐4‐ ...
