Belnick GC-MBLK67-GY-GG Assembly Instructions Manual

Belnick GC-MBLK67-GY-GG Assembly Instructions Manual

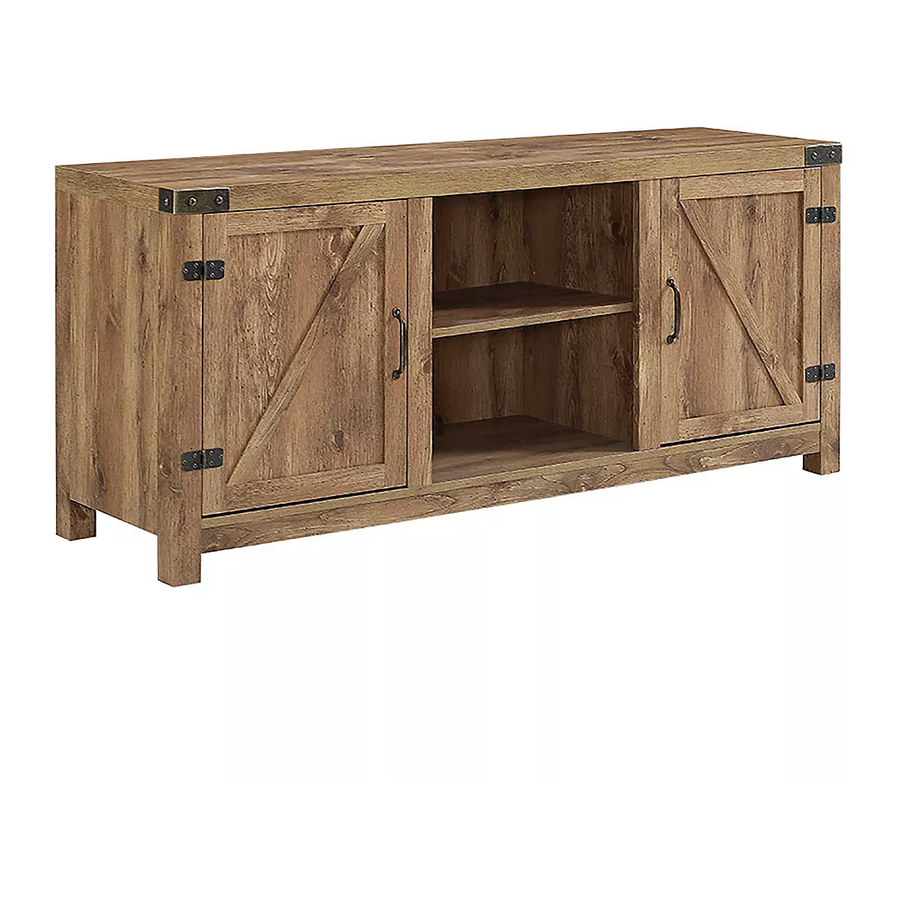

58" barn door style tv stand for up to 65" tv's

Advertisement

Quick Links

Thank you for your purchase!
58" Barn Door Style TV Stand
for up to 65" TV's
Assembly Time
60 min
Load Bearing
LBS
LBS
LBS
200 LBS
LBS
LBS
LBS
LBS
30 LBS
LBS
ASSEMBLY INSTRUCTIONS
Before You Begin:
Please identify all component parts and hardware pieces required before you begin. Carefully remove all of the
components from the packaging and set aside for assembly. Assemble on a soft surface to prevent scratching during
assembly.
Tighten all components securely before use. Failure to do so may result in personal injury.
DO NOT use any sharp objects to open plastic wrapped components as damage to product or components may result.
CHOKING HAZARD - Small Parts. Adult Assembly Required.
DO NOT ALLOW CHILDREN TO CLIMB ON FURNITURE
Serious or fatal injuries can occur from furniture tipping over. You must install Tipping Restraint Hardware (where
included) to help prevent the unit from tipping and causing accidental injury, instability, death or damage. The tipping
restraint is intended only as a safety measure, it is not a substitute for proper adult supervision.
To help prevent furniture from tipping over it must be permanently attached to the wall. Anti-Tip Safety Wall Straps
suitable for the unit weight and wall materials (if not included) should be purchased and installed.
http://ftp.flashfurniture.com/AssemblyInstructions/GC-MBLK67-WH-GG.pdf
Online Assembly Instructions:
Customer Service Email: CustomerExperience@belnick.com | phone: 866-552-2810
GC-MBLK67-GY-GG/GC-MBLK67-WH-GG

Advertisement

loading
Need help?

Need help?

Do you have a question about the GC-MBLK67-GY-GG and is the answer not in the manual?

Questions and answers

Summary of Contents for Belnick GC-MBLK67-GY-GG

  • Page 1 To help prevent furniture from tipping over it must be permanently attached to the wall. Anti-Tip Safety Wall Straps suitable for the unit weight and wall materials (if not included) should be purchased and installed. http://ftp.flashfurniture.com/AssemblyInstructions/GC-MBLK67-WH-GG.pdf Online Assembly Instructions: Customer Service Email: CustomerExperience@belnick.com | phone: 866-552-2810 GC-MBLK67-GY-GG/GC-MBLK67-WH-GG...
  • Page 2 This warranty will not cover: (1) labor, freight, or damage from misuse, abuse, negligence, alteration, assembly, installation, attachments, accident, vandalism, acts of nature or any other event beyond the control of Belnick; (2) tearing, scratching, scuffing, or blemishing of leather or fabric; (3) cosmetic damage that may result from normal usage; (4) damage attributable to use by persons exceeding specified weight limits or commercial use exceeding forty hours per week;...
  • Page 3 PARTS Magnetic Door Catch Top Plate Right Rear Fascia Strike Plate (1) (1) (12) 1 1 1 Door Handles Right Front Fascia Bottom Plate (2) (13) Door Handle Screws Right Door Left Front Fascia (3) (14) Left Door Short Flat Head Screws Left Rear Fascia (4)...
  • Page 4 STEP 1 Right Side Panel (5) Dowel Pegs Left Side Panel (6) Long Screw-In Pegs Inner Supports (11) × (1) Top Plate (12) Right Rear Fascia (15) Bottom Plate Left Rear Fascia (2) (14) Left Front Fascia Short Screw-In Pegs Magnetic (8)...
  • Page 5 STEP 3 STEP 3B: Ensure Cam Locks (Part D) are inserted in holes with open side facing outwards toward receiver hole for Screw- In pegs (Arrow Side). Insert Short Screw-In Pegs on the Left Side Front Fascia (Part 14) into the Cam Locks (Part D) on the Left Side Panel.
  • Page 6 STEP 5 STEP 5: Attach Bottom Support Feet (Part F) onto pre- marked holes on Bottom Plate using (8) Short Flat Head Screws (Part ) J Bottom Support Feet Short Flat Head Screws (2) Bottom Plate STEP 6 STEP 3: Ensure Cam Locks (Part D) are inserted in holes with open side facing outwards toward receiver hole for Screw-In pegs (Arrow Side).
  • Page 7 STEP 7 STEP 7: Carefully place frame into an upright position. Place the Lower Rear Panel (Part 9) into the grooves on the Left & Right Side Panels and slide down into the groove on the Bottom Plate. Once seated place the Upper Rear Panel (Part 10) into the grooves on the Left &...
  • Page 8 STEP 9 STEP 9A: Ensure Cam Locks (Part C) are inserted in holes with open side facing outwards toward receiver hole for Screw-In pegs (Arrow Side). Place Top Plate (Part 1) onto the assembled frame. Confirm that all Screw-In Pegs and Dowel Pegs that were preassembled in STEP 1 are seated correctly.
  • Page 9 STEP 11 L*12 (4) STEP 11: Attach Hinges (Part N) to Left Door (Part 4) and Right Door (Part 3) using (12) Self-Tapping Dome Head Screws (Part L) (3) STEP 12 STEP 12A: Attach Strike Plates (Part G) to the Left and Right Doors using (4) Short Flat Head Screws (Part J) Short Flat Head Screws...
  • Page 10 STEP 13 (3) L*12 (4) STEP 13: Attach Door Hinges to Assembled Frame using (12) Self Tapping Dome Head Screws (Part L) STEP 14 STEP 14A: Attach Front Corner Brackets (Part M) to Top Plate using (8) Self-Tapping Dome Head Screws Front Corner Bracket...
  • Page 11 STEP 15 (16) STEP 15: Lay Adjustable Middle Shelf (Part 16) on the Shelf Pegs STEP 16...

This manual is also suitable for:

Gc-mblk67-wh-gg
