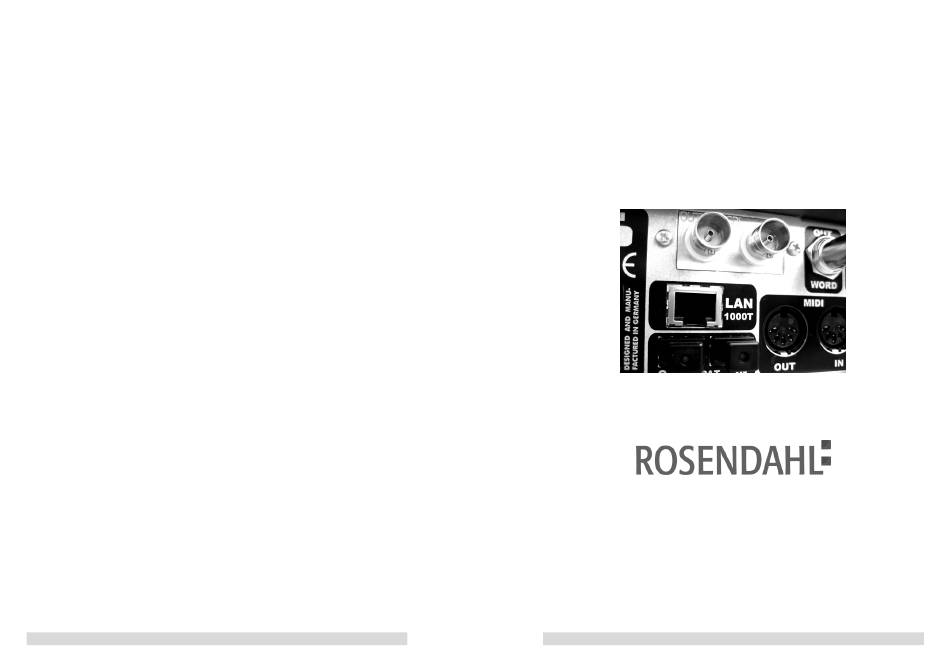

- Page 1 Instruction Manual Rosendahl bonsaiLAN bonsaiLAN is a Gigabit Ethernet Module for the Rosendahl bonsaiDRIVE video and audio multitrack harddisk recorder. www.bonsaidrive.com - 0 - - 1 -...
-
Page 2: Table Of Contents
Contents 1. Ethernet page Declaration of Conformity 2. IP Address page Rosendahl Studiotechnik GmbH Andechser Str. 5 3. FTP page D-86919 Utting a.A. 4. Quick Time page herewith confirms that the product: Type: Harddisk Video Recorder Model: bonsaiDRIVE 4. Menu Settings... -
Page 3: Ethernet
CAT-5 is a standard which specifies ethernet cables. It is possible to connect your bonsaiLAN port direct to a computer 10 or 100BASE-T Ethernet modes are not supported by the without a switch or crossover cable because the bonsaiLAN module bonsaiLAN module. -
Page 4: Ip Address
Start , then Run , and type in CMD. In the CMD window type in ipconfig and press enter. If you want to connect a bonsaiLAN port to that computer you must set the IP address also to 192.168.100 together with an individual low... -
Page 5: Ftp
3. FTP The standardised File Transfer Protocol is used to transfer files from When using a DHCP server you must set the bonsaiLAN IP address the bonsaiLAN module and a computer. according to the DHCP address range and the used subnet mask as described already in example 1. - Page 6 Simultaneous standard play operation will not much speed down the file transfer process. Because of these limited capabilities of the harddisk the bonsaiLAN module does simultaneously allow only one user in the network to get access to the FTP server.
-
Page 7: Quicktime
QuickTime PRO version for around USD 30,--. Some professional video editing systems are based on the Now you can transfer this Reference File to the bonsaiLAN module QuickTime API and include a PRO license already. first and then the large original movie file. -
Page 8: Menu Settings
In summary: Files you want to import using bonsaiLAN must fulfil the MENU 041..044 IP ADDRESS following conditions: MENU 041, 042, 043 and 044 allows you to configure the IP address - Video codec is Uncompressed 8-bit 4:2:2 format (2uvy) of your bonsaiLAN module. - Page 9 (odd lines) as temporary first field (default setting). As described in the QuickTime chapter of this manual all files which are transfered to the bonsaiLAN module must comply with the In some situations it can be necessary to swap the fields temporary.
- Page 10 MENU 049 CAPTURE WHILE RECORD When you start a CRASH recording on the bonsaiDRIVE it is possible to upload the new created clip already while it is still recording. Therefore it is necessary to predefine the duration of the recording. Set the duration in menu 049 to the expected length. A LIST (refresh directory) command initiated by the FTP client program will then indicate REC_clip_xxx, where xxx is the currently recording clip number.
- Page 11 - 20 - - 21 -...
- Page 12 - 22 -...
