Summary of Contents for PulseAudio PA-SS4V
- Page 1 Two Source, Four Pair Stereo Speaker SELECTOR BOX with Volume Control PART NUMBER PA-SS4V pulseaudio1.com | vanco1.com | 800.626.6445...
- Page 2 DEAR CUSTOMER Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS.
- Page 3 FEATURES Thank you for your purchase of a PA-SS4V Two Source, Four Pair Speaker Selector Box with Volume Control. The PA-SS4V is a low-profile speaker distribution system which features: • An independent On/Off switch for each zone of audio •...

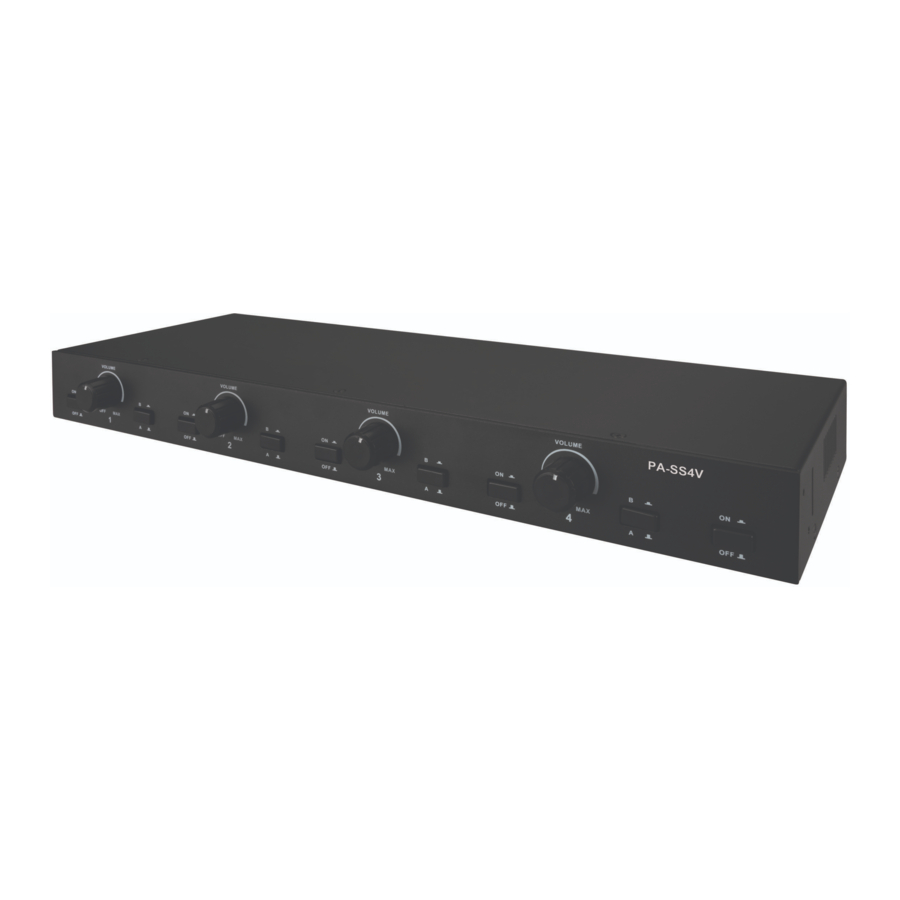

- Page 4 SS4V PANEL DESCRIPTIONS Front Panel Speaker Zone ON/OFF Button Volume Control Dial Zone Source Selection Button (A/B) Unit ON/OFF Button Back Panel Spring Loaded Inputs Impedance Switch - 1 for each zone (see chart below) Spring Loaded Speaker Outputs CONNECT AND OPERATE The “+/-“...
- Page 5 Next, with your source amplifier powered off, strip ¼” insulation from the end of the cable. Make sure the + and – terminals are correctly identified. To connect the speakers to the PA-SS4V press to open the appropriate spring-loaded terminal (OUTPUT) and insert the striped end of the wire into the proper terminal.
- Page 6 The PA-SS4V has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the PA-SS4V should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 7 TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@ vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call.
- Page 8 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at pulseaudio1.com...
