Holtz 303LRK2 Quick Start Manual

Lock Release Auto Can Lid Lock
Flat or Slope Dumpsters-Side Mount
Part No: 303LRK2
FIG 1
Before you begin, please read through the entire instructions.
To assemble and install the kit, you will ned channel locks, two "C"
clamps, and adjustable wrench and a drill with 3/8" drill bit. You will
also need five of each of the following: 3/8" carraige bolts, nuts,
flat washers and (optional) lock washers.
NOTE: IMPROPERLY FITTING LIDS
Lids that hang over or have handles that hang over the front of the container may cause complications
during mounting and/or operation of the automatic lock.

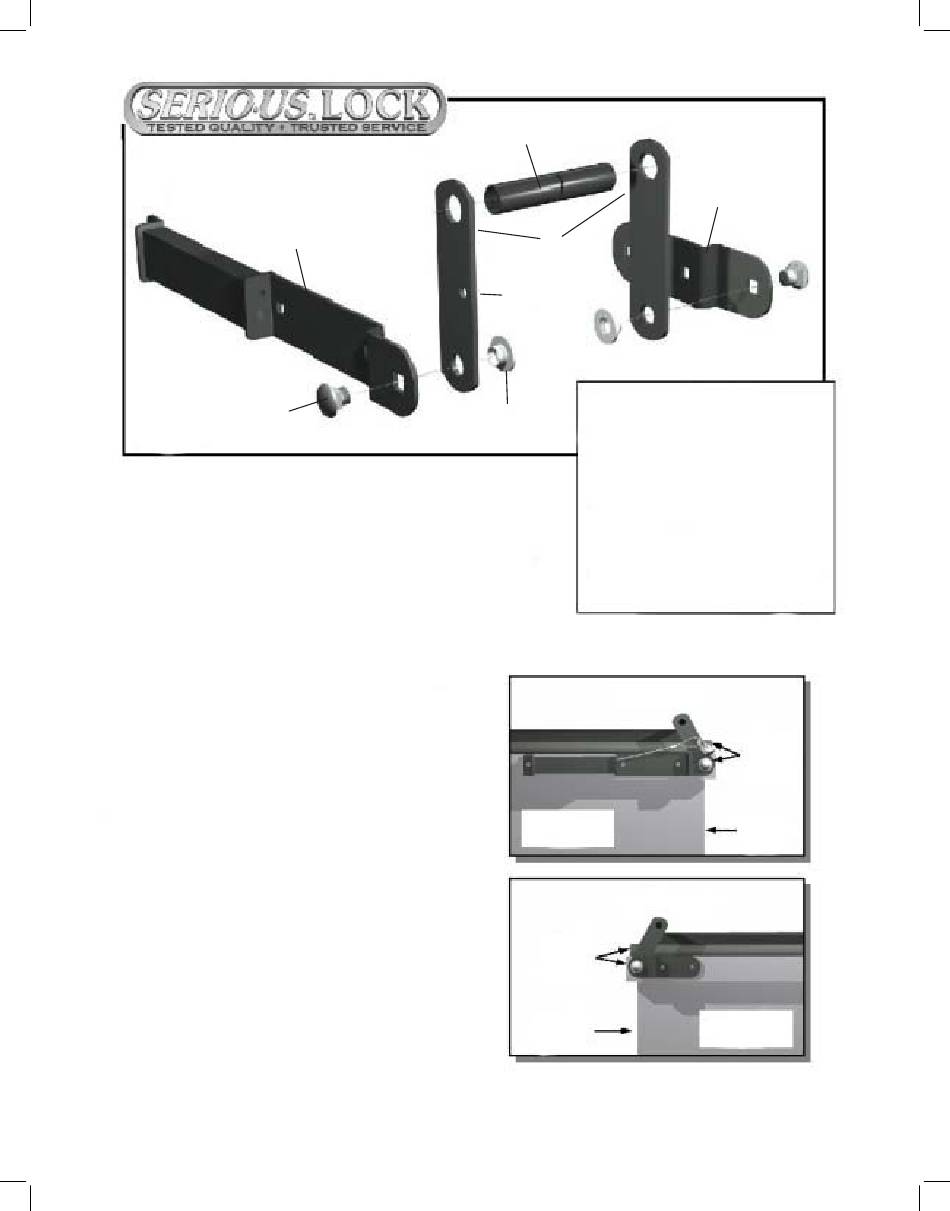

Step 1: Assemble kit as shown in FIG 1. Making sure that the
padlock hole is toward the front of the container. Use
channel locks to tighten flange nuts.
Step 2: Position lock release on left side of container, flush
with the top of the channel and even with the front of the
lids as shown in FIG 2. Clamp in place.
Step 3: Position pivot plate on right side of container, flush
with the top of the channel and even with the front of the
lids as shown in FIG 3. Clamp in place.
Step 4: Drill holes and bolt on with carraige bolts.
Call Us Toll Free: 1-800-535-0104
3
1
Holtz Industries, Inc.
Not Included
5*
Must purchase
seperately
4
Padlock
Hole

Parts List

2
#1 2 Carriage Bolts
#2 2 Flange nuts (self-locking)
#3 1 Lock release with
pivot plate
#4 2 Side plates welded to
number 5
#5* 1 Sch. 40 x 3/4" LD Pipe
#6 1 Pivot Plate
*NOTE: #5 IS NOT INCLUDED
Must purchase bar seperately
Left Side
FIG 2
Right Side
Front of
lids and kit
are even.
Front of
container.
6
Front of
lids and kit
are even.
Front of
container.
FIG 3
