MANUAL
MAIN CHARACTERISTICS:
Supply voltage range from 12V to 48V
•
Separate input pin for enable the time-counting
•
Flashing sandglass icon during the time-counting
•
1/10 hour accuracy
•
Maximum hours amount 99999.9
•
Black ABS case
•
Front side of the case : IP66 protection
•
Working temperature range from -20°C to +60°C
•
Mounting holes dimensions 36 x 24 mm
•
NOTE: The hours counter is designed to work properly with a supply voltage value inside
the indicated range, if voltage is out of range, it may be that the counter appears to work
correctly, but in this case right functioning is not ensured. Supply voltage that exceed the
maximum value can seriously, and permanently, damage the device.
www.aqtron.com - info@aqtron.com

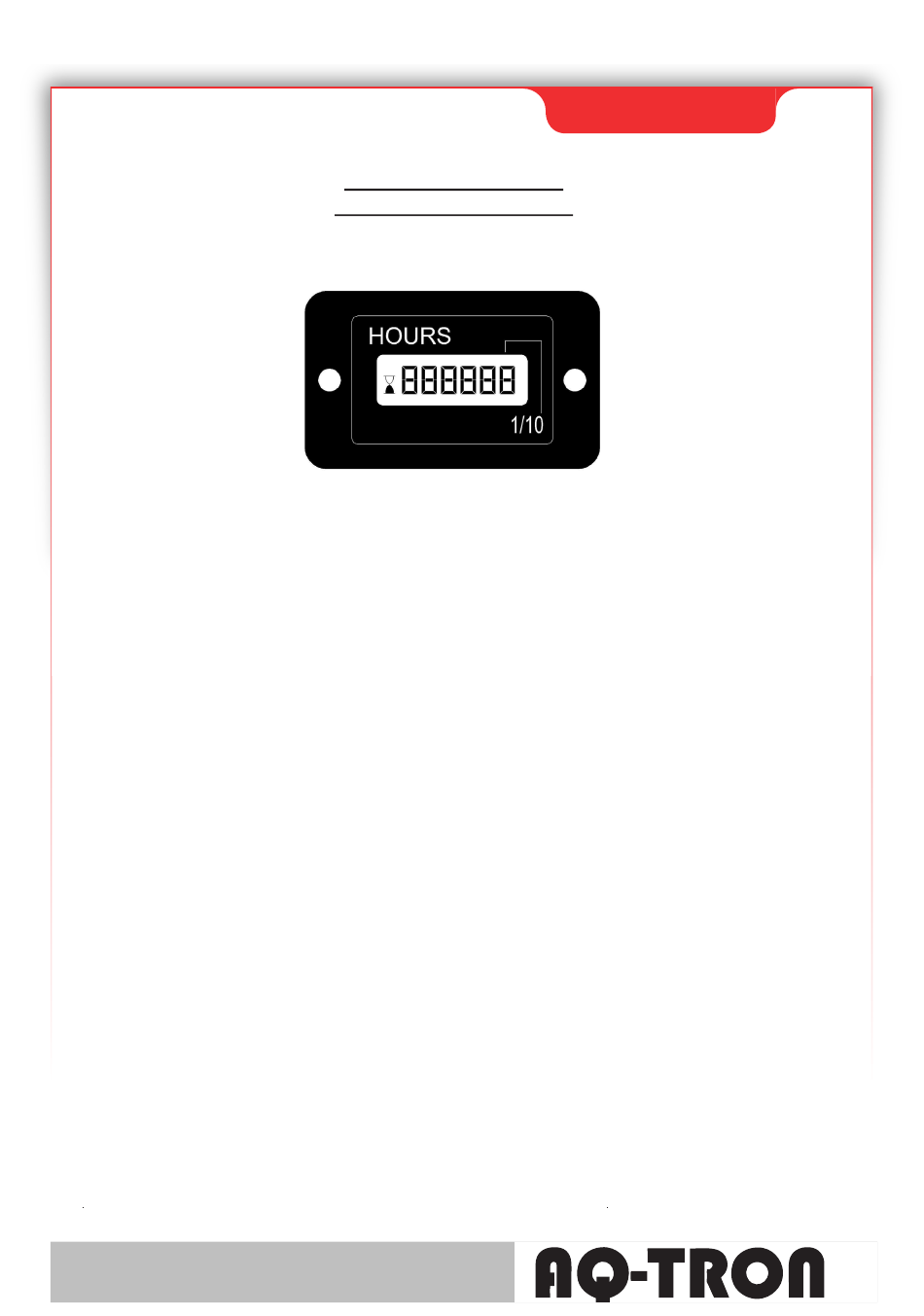

TECHNICAL MANUAL
HC HOURS COUNTER
BAT/32562
®
Advertisement
Table of Contents
Summary of Contents for AQ-Tron BAT/32562
- Page 1 MANUAL BAT/32562 TECHNICAL MANUAL HC HOURS COUNTER MAIN CHARACTERISTICS: Supply voltage range from 12V to 48V • Separate input pin for enable the time-counting • Flashing sandglass icon during the time-counting • 1/10 hour accuracy • Maximum hours amount 99999.9 •...
- Page 2 MANUAL BAT/32562 DIMENSIONS AND CONNECTING PIN DESCRIPTION PIN DESCRIPTION DESCRIPTION Positive Input pin for enable the counting Negative power supply Positive power supply Negative Input pin for enable the counting ® www.aqtron.com - info@aqtron.com...
- Page 3 MANUAL BAT/32562 FUNCTION DESCRIPTION: The circuit must be power feeded by pin 2 and 3, in this condition the amount of the counted hours do not increase, because the counting is not enabled yet. In order to start the counting and increase the amount of hours it is necessary to...
- Page 4 MANUAL BAT/32562 COMPLIANT STATEMENT The device here descripted compliant to the following rules and europen normative. EUROPEAN RULES: Low voltage: European : 2006/95/CEE ELECTROMAGNETIC COMPATIBILITY European: 2004/108/CEE REFERENCE EUROPEAN NORMATIVE: LOW VOLTAGE: EN50178 EN60204 EN60335-1 EN60335-2-29 ELECTROMAGNETIC COMPATIBILITY: EN55011 EN61000-4-2...
- Page 5 MANUAL BAT/32562 WIRING DIAGRAMS: ® www.aqtron.com - info@aqtron.com...
