Rocky's 3” Motor Kit Installing

Rocky's Reel Systems Inc. reserves the right to make any modifications to the products at any time without prior notice,
and rejects any liability for any kind of damage to persons or property due to improper installation, use or misuse.
Before starting the installation of this kit, we recommend that you carefully read these instructions to familiarize your-
self with the installation and programming of this unit. These instructions are intended for qualified technicians in
the field of automation. The information contained in these instructions may not be useful to unqualified individuals.
All maintenance or adjustment operations should be carried out by a qualified technician.
The automation outlined in this document must be performed in accordance with the current regulatory systems.
-Safety of machinery. Electrical equipment. Part 1 General rules.
-Safety in the use of automated materials, test method and test.
-Safety of pool materials and electrical protection.
Installation requires a working knowledge of electricity and mechanics. It must be done exclusively by a qualified tech-
nician and by an individual authorized to deliver the certificate of conformity by the installation.
(Directive 2006/42 / EEC, -IIA)
It is obligatory to conform to the norms of use of the materials on the edge of basins of water or swimming pools.
The manufacturer reserves the right to make any changes at any time to the product without prior notice.
1

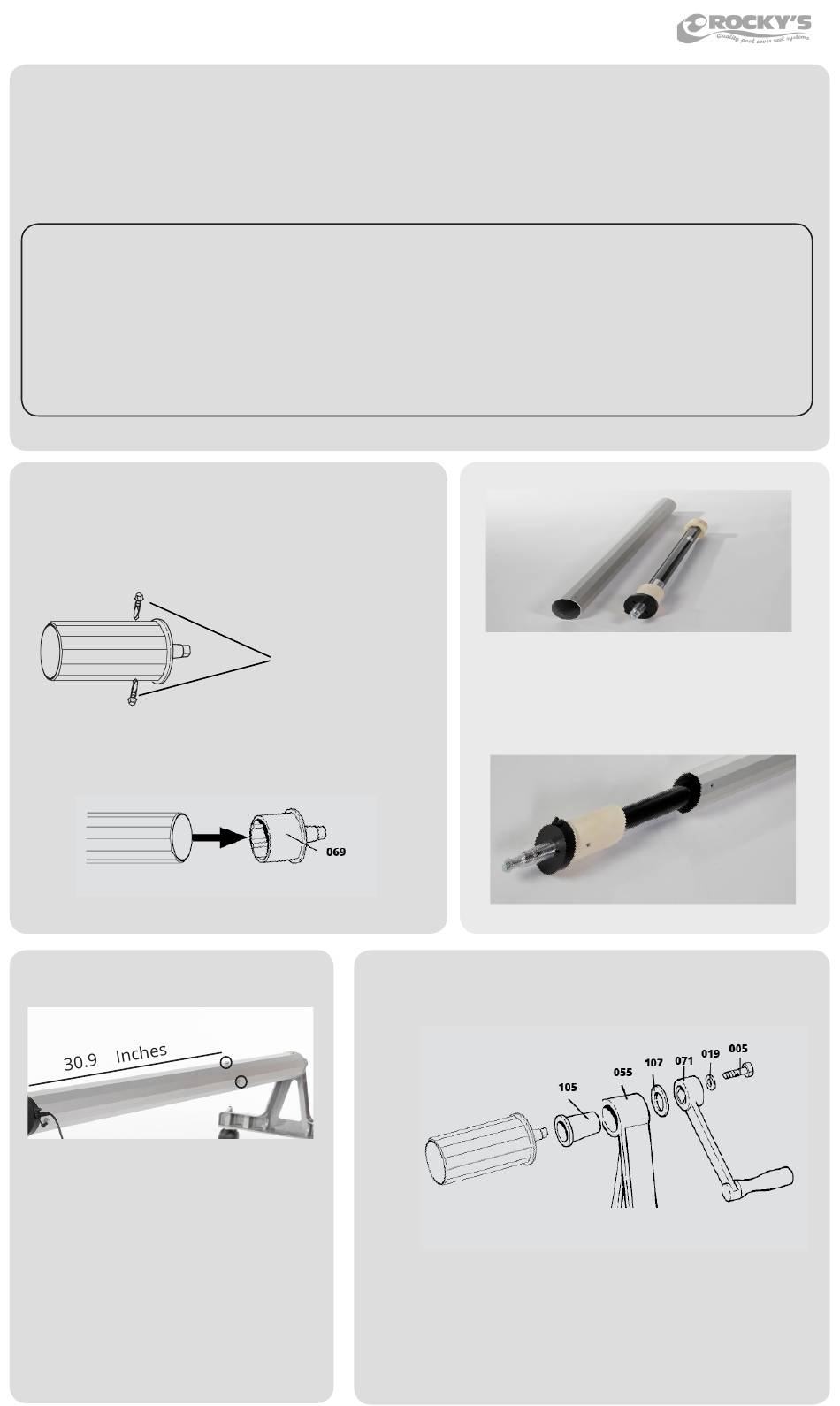

Remove The Standard Hub
Remove the two TEK screws on the handle side of your reel
that secure the hub to the tube.
The motor unit will be replacing the hub.
Next slide the hub out of the tube. Put the two TEK screws
and the hub some place safe so that if you need them in the
future you still have them.
3
Securing The Motor
Next you will need to lay out where you
will attach the motor. You will need to
measure 30.9 inches down 3 sides of the
tube and make a mark where you will put
the screws in. Rocky's recommends using
the sides that have the screw channels so
that your screws will be centered. Once
you have laid out where the screws will
go, use a number 2 Phillips driver bit to
secure the motor with the three supplied
TEK screws.
Installing Rocky's 3" Motor Kit
*** Warnings ***
Certificate of Conformity (Directive 2006/42/EEC,-IIA
TEK Screws
4
Put the black bushing onto the end of the motor we recommend putting
some waterproof grease inside the bushing. Grease once a year after
that.
Push the motor and the black bushing into the frame.
Put the black washer over the end of the protruding end of the motor
and slide the handle onto the end.
Put the 5/16" washer on the bolt and secure the handle.
-VERY IMPORTANT: Do not over-tighten this bolt as it will make it hard
to rotate the handle.
Insert The Motor Assembly
2
Next slide the motor into the tube.
The motor should slide in easily, if it catches do
not force it in. Make sure your are sliding it in as
straight as possible.
Reassemble The Reel System
