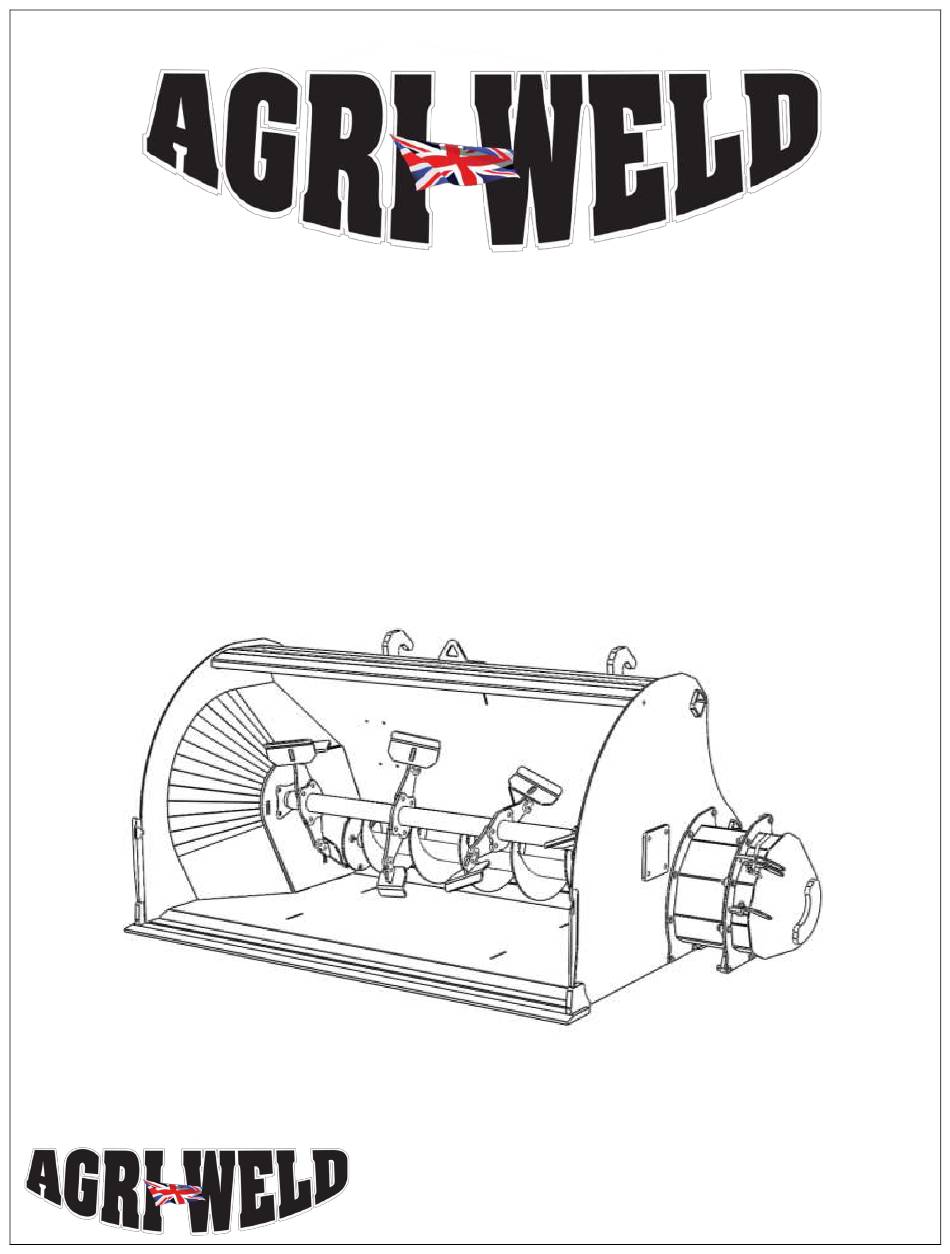

- Page 1 OPERATOR MANUAL 6’6’’ (1.7m³) Mixer Bucket The Workshops Main Street Garton-on-the-Wolds Driffield, YO25 3ET Tel: 01377 259140 Fax: 01377 259141 Email: sales@agriweld.co.uk www.agriweld.co.uk...
- Page 2 Contents Page 3 User Information, Getting Started & Weight Page 4 Spout Fitting Instructions Page 5 Safety, Qualification & Training, General Safety Page 6 Important Safety Instructions Connection to the Forklift/Loader, Creating Offset, Page 7 Attachment Page 8 Operating and Mixing Process, Cross Line Relief Valve Page 9 To set the Cross Line Relief Valve Page 10...
-
Page 3: User Information
6’6”Wide /1.7m³ Model 790kgs including brackets Your Cereal Mixer Bucket is not to be used for any other purpose than for which it is intended – Primarily that is the collection, mixing and discharge of Cereal type feed and feed including minerals, nuts, and molasses. - Page 4 Damage as a result of use for other any other purpose will not be covered under warranty. The specifications, descriptions and illustrations in this manual are accurate at the time of publication but may be subject to change. SPOUT FITTING INSTRUCTIONS Ensure that the spout is fitted to the bucket discharge side prior to operation.
-
Page 5: General Safety
All operators of the forklift/loader must hold the appropriate license or certificate of competence to do so. All operators must be familiar with the Cereal Mixer Bucket Operators Manual and forklift/loader operations prior to use. If safety instructions are not observed and complied with it can lead to the risk of injury to the operator and others as well as damage to the machine, property and the environment. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Take extra care when attaching the Cereal Mixer Bucket to the forklift/loader to ensure that it is attached correctly via the bracketing and hydraulic fittings. (See page 7 Connection to the forklift/loader). Ensure that the forklift/loader and its hydraulic system is in full working order. - Page 7 NEW ONES. ALWAYS ENSURE THEY ARE ALL THOROUGHLY TIGHTENED. CONNECTION TO FORKLIFT/LOADER Stand the Cereal Mixer Bucket in an area free from obstruction to allow you to drive the forklift/loader towards the bracketing. For Quick Hitch bracketing, connect as you would with any other attachment and the type of bracketing fitted to the rear of the bucket.
- Page 8 3. Start the flow of hydraulic oil to the motor by operating the lever inside the forklift cab. Run the mixer bucket in REVERSE to mix until you are happy with the result. It is possible to tip the bucket forwards/backwards during mixing slightly, to assist if required.
- Page 9 CROSS LINE RELIEF VALVE Cross line relief valves are fitted to the top of each hydraulic motor on your bucket as additional protection for the motor against damage. TO SET THE CROSS LINE RELIEF VALVE The Valve is pre-set to 180 bar prior to delivery in the event that you do not make any adjustments yourself to give your motor protection against major blockages.
-
Page 10: Safety During Maintenance
SAFETY FIRST • DO NOT ALLOW ANY ONE, INCLUDING YOURSELF TO LEAN INTO THE BUCKET WHILST IT IS OPERATING. • DO NOT “POKE” THE MIX WITH ANYTHING DURING OPERATION. • DO NOT REMOVE ANY GUARDS WHILST THE MACHINE IS IN USE. •... -
Page 11: Full Assembly
Full Assembly Spill Guard (Mounted using 4 x M12 x 30 Button Head Bolts, Washers & Nylock Nuts Manual Flap Mixer Shaft Inc. Mixer Paddles (Other options available) Brackets (Mounted using 11” Discharge Auger 8 x M16 Square Bends in Feed Pipe order to create offset Bracket... - Page 12 Main Drive, Auger & Mixer Shaft Parts Welds to gearbox mounting plate (2 no off per gearbox) Detail A Detail B...
- Page 13 Main Drive, Auger & Mixer Shaft Parts Continued See Page 13 See Page 20...
- Page 14 Main Drive, Auger & Mixer Shaft Parts Continued Welded to inside of bucket side Detail C (Not a replaceable part) Note: Mixer shaft gearbox & See Detail D discharge auger gearbox use the same nuts, bolts, washers etc. *Example shaft shown is 1.7m³ or 6’...
- Page 15 Main Drive, Auger & Mixer Shaft Parts List Quantity per Item Number Part Number Description Machine Discharge Auger & Mixer Shaft AW_RT16040 Gearbox AW_SMR100 Discharge Auger Motor AW_CMB_1526 Gearbox Mounting Plate AW_M12_50 Mounting Plate 15mm Tab Bolt Mounting Plate 15mm Tab AW_M12W Washer AW_M12N...
- Page 16 Main Drive, Auger & Mixer Shaft Parts List Continued Item Number Part Number Description Quantity per Machine Non Drive End AW_KOYO_50FX1- Bearing Non Drive End AW_16W Washer AW_16N Non Drive End Nut Mixer Shaft Paddle AW_CMB_1251 Mixer Shaft Paddle AW_CMB_0605 (various sizes) AW_12_50 Paddle Bolt...
- Page 17 Combined 50/50 Flow Divider – Part No: 004-058-B00 Combined 50/50 flow divider located on back of bucket Mounted by 3 x M8 x 70 Bolts, Washers & Nylock Nuts Leads back to bulk head fittings which support feed pipes Side view of bucket showing gearboxes &...
-
Page 18: Part Number Description
Mixer Shaft Shut Off Tap (Optional Extra required to feed roots) When tap is in this position both mixer shaft and discharge auger will work When tap is in this position only discharge auger will work Item Number Part Number Description Quantity Hydraulic Tap... -
Page 19: Discharge Spout
Discharge Spout 8, 9 &10 Discharge Spout Parts List Item Quantity per Part Number Description Number Machine AW_Spout_0401 Discharge spout M10X30 CHS M10 Cup head squares M10 Nut M10 Nut M10 Washer M10 Washer AW_0653 Spout lid 6 & 7 Manual pin &... - Page 20 Forklift Brackets Example bolt on Euro Hook brackets...
- Page 21 Three Point Linkage Attachment Fit top link and lower link balls into 3 point linkage frame on bucket, make sure to re-attach the linch pins. Back up the tractor and fit 3 point linkage to bucket. Connect hydraulic hoses and operate bucket. Item Number Part Number Description...
- Page 22 Stickers Sticker Part Description Quantity per number Machine AW_CMB_WS Warning Sticker (80mm x 80mm AW_CMB_AS Agriweld Sticker (170 mm x 80mm) AW_CMB_GB (100mm x Great Britain 60mm) Sticker AW_CMB_ALS Agriweld 1 no of this hand (660mm x Sticker 1 no of opposite...
- Page 23 Warranty Your Agriweld Mixer Bucket is covered for a period of 12 months from the date of dispatch (which is recorded on our files) against faulty components and/or bad workmanship. Our welders are coded to ISO 9606-1 and our welding procedures are approved in accordance with ISO 15614-1 to manufacture your equipment.
-
Page 24: Ce Declaration Of Conformity
East Yorkshire YO25 3ET Product: Cereal Mixer Bucket Product Options: Individual Serial Number: Product Description: AGRIWELD Cereal Mixer Bucket Date of Last Load Test Report: Supplementary Information: Authorized Signatory on Behalf of Manufacturer: Name of Signatory: Dawn Foster Position in Company:...
