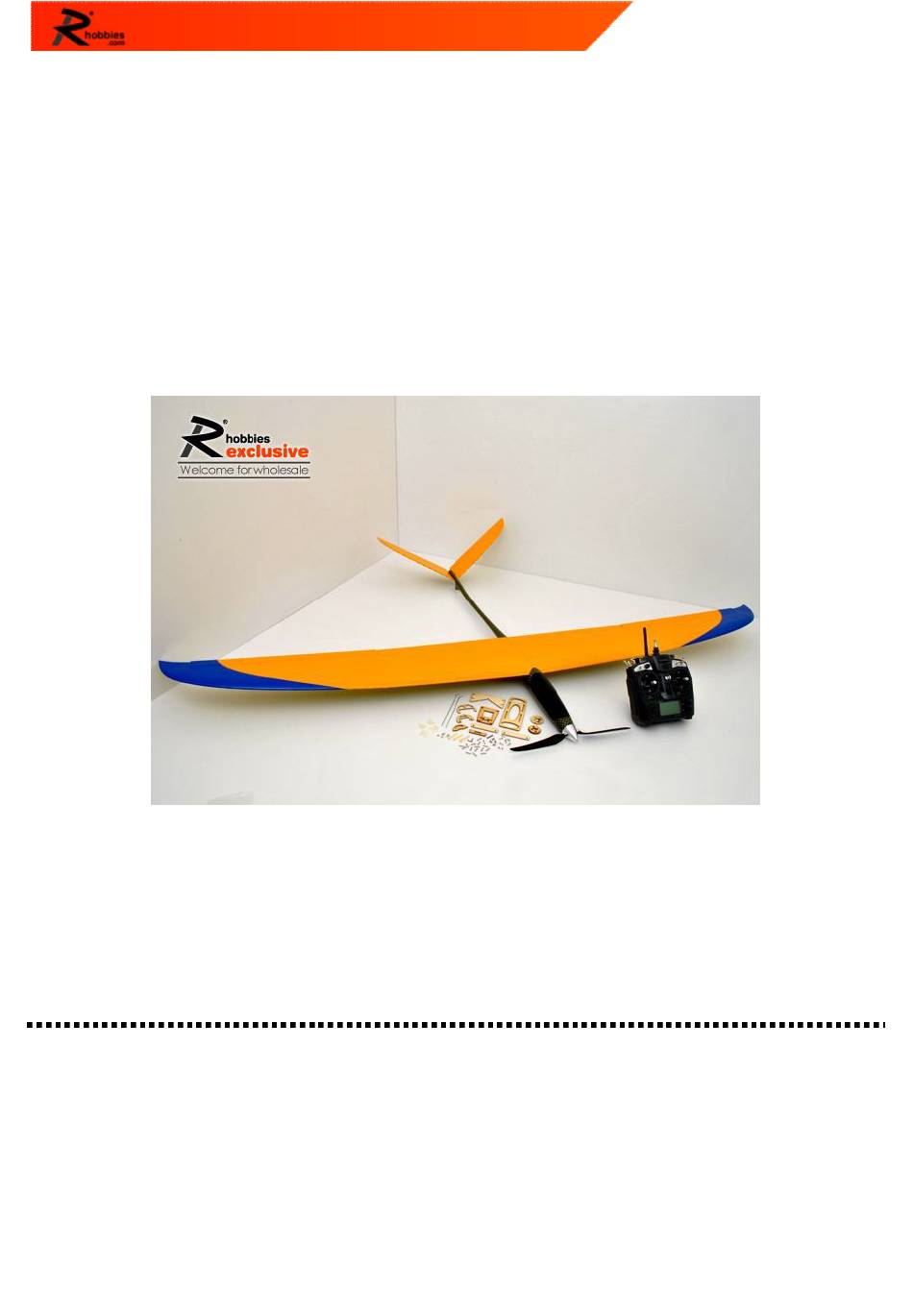

- Page 1 2M Sloopy 2000 Sailplane 2M Sloopy 2000 Instruction Manual You should read this Manual carefully before you play. It contains important information for using the model. Join our FREE Membership and accept 10%off Offer! R2hobbies.com...
-
Page 2: Specification
2M Sloopy 2000 Sailplane SLOOPY 2000 SLOOPY 2000 is new mate of R2hobbies Gliding Team. It’s the latest Edition of R2 Glider. Like others, its fuselage is made up of Carbon Giber but in additional, it has 4 extra Fiberglass Clothes Layer turn out an Ultra-Strong and in Carbon-Kevlar Pattern Fuselage. - Page 3 2M Sloopy 2000 Sailplane Fuselage Installing Motor Fix the Motor with 2-4 Screws into the Motor Mount in the Head. Installing Tail Wing Servo Pass the Servo Extention Wire from Fuselage Front to the Servo Cabin. Such action will make connecting Aileron’s Servo easier.
- Page 4 2M Sloopy 2000 Sailplane Constructing V-Tail Tail Wing is important in controlling speed, so it should be constructed delicately to give the best performance. Therefore, R2hobbies prepare a Tail Mold to make sure the Tail Wing opens accurately. Check the Tail Mold Parts Insert the Stick into the V-Shape Wooden Parts, Joint-to-Joint, form lilke the following Figure.
- Page 5 2M Sloopy 2000 Sailplane 7. Glue the Carbon Fiber V-Strip onto the V-Tail. Please note that the Adjusting Pin should be fixed on Tail Wing Front Edge. Combining Fuselage & Tail Wing 1. Place the V-Tail onto Fuselage Tail Part. Mark the Fuselage Tail Hole Location and drill a hole on the V-Tail 2.
- Page 6 2M Sloopy 2000 Sailplane 3. Connecting Push Rod and Servo Arm. Use Adhesive Tape to confirm the location of Servo Horn, in order to make sure the Angle of Elevator is correct. 5. Bend Push Rod in 90 Degree and connect Servo Horn.
- Page 7 2M Sloopy 2000 Sailplane Installing Aileron Servo Find the Servo Location and remove the covering frame. Stick the Servo onto the Servo Rectifier by Bi-side Adhesive Tape. Mark the Servo Rectifier by Paper Adhesive Paper. Make sure the Servo Arm is parallel to Aspect Ratio.
- Page 8 2M Sloopy 2000 Sailplane Inside the Cabin Place the receiver and ESC under the Battery Mount. Fill in Magic Tape and Fix Battery onto the Battery Mount. Fixing Main Wing & Fuselage Locate Main Wing adjusting hole & Drill it. Fuselage Latter Wholes and Main Wing Mounting Holes are already drilled.
- Page 9 2M Sloopy 2000 Sailplane Adjustment You will find a Adjusting Board from the Accessories packing. You can adjust the Servo Arm Bend Angel in order to regulate the Ailerons. * Please have a FIRST TRIAIL through HAND Launched Flight to Final Adjust the real performance.
- Page 10 Check the Parts Lists. Contact us at once if you find any parts are missing. Please DO NOT throw the packing away and take a photo on it and all the received items. Send them to cs@r2hobbies.com. We’ll then check it for you.
